IFM PX3224 Transmitter, 0-100psi, 9.6-32VDC, US $760 – Picture 0
IFM PX3224 Transmitter, 0-100psi, 9.6-32VDC, US $760 – Picture 0

Ifm Px3224 Transmitter, 0-100psi, 9.6-32vdc

US $760

  • Rolling Meadows, Illinois, United States
  • Jun 9th
Open on mobile:
QR code
 Product characteristics Electronic pressure sensor Quick disconnect e1 compliant Process connection: 1/4 " NPT A / M5 I Analog output Measuring range: 0...100 psi  Application Application Type of pressure: relative pressure  Liquids and gases Pressure rating [psi] 1087 Bursting pressure min. [psi] 2175 Medium temperature [°C] -25...90  Electrical data Electrical design DC Operating voltage [V] 9.6...32 DC Insulation resistance [M?] > 100 (500 V DC) Protection class III Reverse polarity protection yes  Outputs Output Analog output Output function 4...20 mA Overload protection yes Max. load [?] (Ub - 9.6 V) x 50; 720 at Ub = 24 V  Measuring / setting range Measuring range [psi] 0...100  Accuracy / deviations Accuracy / deviations (in % of the span) Characteristics deviation *) < ± 0.35 (BFSL) / < ± 0.75 (LS) Repeatability **) < 0.15 Long-term stability ***) < ± 0.05 Temperature coefficients (TEMPCO) in the temperature range 0...80° C (in % of the span per 10 K) Greatest TEMPCO of the zero point 0.2 Greatest TEMPCO of the span 0.3  Reaction times Step response time analogue output [ms] 3  Environment Ambient temperature [°C] -25...80 Storage temperature [°C] -40...100 Protection IP 65  Tests / approvals EMC EN 61000-4-2 ESD:  4 kV CD / 8 kV AD EN 61000-4-3 HF radiated:  30 V/m EN 61000-4-4 Burst:  2 kV EN 61000-4-6 HF conducted:  10 V radiation of interference  according to the automotive directive 2004/104/EC / CISPR25 noise immunity  according to the automotive directive 2004/104/EC / ISO 11452-2 HF radiated  100 V/m pulse resistance  according to ISO7637-2 / severity level 3 Shock resistance DIN IEC 68-2-27: 50 g (11 ms)   Vibration resistance DIN IEC 68-2-6: 20 g (10...2000 Hz)   MTTF [Years] 534.69  Mechanical data Process connection 1/4 " NPT A / M5 I Materials (wetted parts) stainless steel (303S22); ceramics; FPM (Viton) Housing materials stainless steel 316L / 1.4404; FPM (Viton); PA; EPDM/X (Santoprene) Min. pressure cycles 100 million Weight [kg] 0.215  Electrical connection Connection M12 connector; gold-plated contacts Wiring

Directions

Similar products from Pressure & Temperature Transmitters

Dwyer Instruments 641-6 Air Velocity Transmitter 6&#034; Probe Length

Dwyer Instruments 641-6 Air Velocity Transmitter 6" Probe Length

  • Lowell, Massachusetts, United States
  • Jun 9th
Rosemount 3051 CD 2A Smart Hart Pressure Transmitter w/ Manifold NEW H14 (1924)

Rosemount 3051 CD 2A Smart Hart Pressure Transmitter w/ Manifold NEW H14 (1924)

  • Elkins, New Hampshire, United States
  • Jun 9th
Rosemount 3051 S2 TG 4A Wireless Hart Pressure Transmitter A7 (1924)

Rosemount 3051 S2 TG 4A Wireless Hart Pressure Transmitter A7 (1924)

  • Elkins, New Hampshire, United States
  • Jun 9th
Rosemount 3051 Pressure Transmitter 3051S1 CG4 SMART HART Protocol

Rosemount 3051 Pressure Transmitter 3051S1 CG4 SMART HART Protocol

  • Moultrie, Georgia, United States
  • Jun 9th
Rosemount 8732 Transmitter with 8721 Flowtube 1/2&#034; Flowmeter 8732EST2A1N0M4

Rosemount 8732 Transmitter with 8721 Flowtube 1/2" Flowmeter 8732EST2A1N0M4

  • Moultrie, Georgia, United States
  • Jun 9th
Rosemount 3051 Pressure Transmitter 3051TG TG3 New in Box SMART HART Protocol

Rosemount 3051 Pressure Transmitter 3051TG TG3 New in Box SMART HART Protocol

  • Moultrie, Georgia, United States
  • Jun 9th
Cordis Commucor II Transmitter/ Monitor Model 193

Cordis Commucor II Transmitter/ Monitor Model 193

  • Youngstown, Ohio, United States
  • Jun 9th
NEW OMEGA PX792-300GI SANITARY PRESSURE TRANSMITTER

NEW OMEGA PX792-300GI SANITARY PRESSURE TRANSMITTER

  • Mesa, Arizona, United States
  • Jun 9th
Rosemount 3051 Pressure Transmitter 3051CD CD3 SMART HART Protocol New in Box

Rosemount 3051 Pressure Transmitter 3051CD CD3 SMART HART Protocol New in Box

  • Moultrie, Georgia, United States
  • Jun 9th
Lot 3pcs 100 ohms Resistance Bulb

Lot 3pcs 100 ohms Resistance Bulb

  • Taguig City, Philippines
  • Jun 9th
BLH ELECTRONICS 882 STRAIN GAGE TRANSMITTER *USED*

BLH ELECTRONICS 882 STRAIN GAGE TRANSMITTER *USED*

  • Camarillo, California, United States
  • Jun 9th
Action Pak AP4350 Isolated Thermocouple Transmitter PST-4350-A001 Temp transmitt

Action Pak AP4350 Isolated Thermocouple Transmitter PST-4350-A001 Temp transmitt

  • Sherwood, Wisconsin, United States
  • Jun 9th
HACH GLI PRO-C3 2E Series Transmitter, Contacting Conductivity

HACH GLI PRO-C3 2E Series Transmitter, Contacting Conductivity

  • Moreno Valley, California, United States
  • Jun 9th
Sensorex TX-100 pH/mV 2-Wire Transmitter

Sensorex TX-100 pH/mV 2-Wire Transmitter

  • Moreno Valley, California, United States
  • Jun 9th
Rosemount 8700M NEW &#034;8732esr1a1nam4&#034;

Rosemount 8700M NEW "8732esr1a1nam4"

  • Evansville, Indiana, United States
  • Jun 9th
Rosemount 3051 CA 1A Smart Hart Pressure Transmitter NEW C14 (1112)

Rosemount 3051 CA 1A Smart Hart Pressure Transmitter NEW C14 (1112)

  • Elkins, New Hampshire, United States
  • Jun 9th
Micro Motion 2700 I11 BBMEZZZ Transmitter F14 (1766)

Micro Motion 2700 I11 BBMEZZZ Transmitter F14 (1766)

  • Elkins, New Hampshire, United States
  • Jun 9th
2&#034; DN50 Endress Hauser 53P50-EF0B1AA0A2AA Promag 53 P Flowmeter D20 (1665)

2" DN50 Endress Hauser 53P50-EF0B1AA0A2AA Promag 53 P Flowmeter D20 (1665)

  • Elkins, New Hampshire, United States
  • Jun 9th
Foxboro IDP10-TTAC1R-L1 Pressure Transmitter 1-1/2&#034; Tri-Clamp NEW G16 (1772)

Foxboro IDP10-TTAC1R-L1 Pressure Transmitter 1-1/2" Tri-Clamp NEW G16 (1772)

  • Elkins, New Hampshire, United States
  • Jun 9th

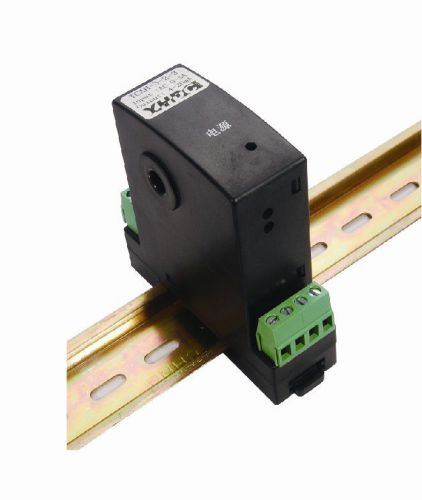

Din-rail AC current transmitter
