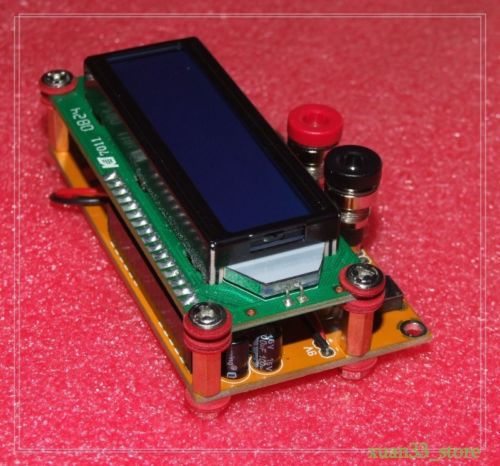

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 0

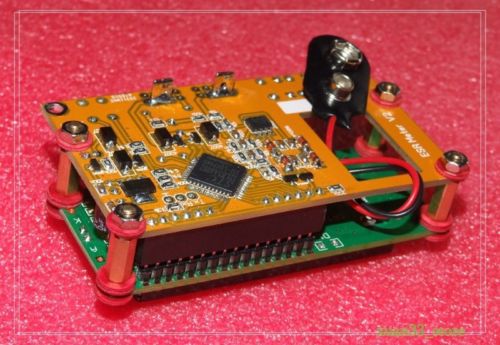

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 1

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 2

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 3

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 4

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 5

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 6

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 7

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 8

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 9

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter, US $2900 – Picture 10

Inductor-capacitor Tester Milliohm Meter Esr Meter Lc Meter

US $2900

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter Description : Inductor-capacitor Tester Milliohm Meter ESR Meter LC Meter Range: 1. R Measuring range: 0.01 - 18 Ohms 2. C Measuring range: 0.15 - 1000uF 3. R accuracy: 1% +0.02ohm 4. C Accuracy: 72kHz and 3kHz measurements, to obtain the two capacitance values??. The small capacitors error is about 1% error. With the increase in capacity, the error becomes large Method of use: 1. The first row shows the ESR screen, the display character "R". 2. The second line screen display auxiliary parameter of the measured element, the display character has 6 kinds, respectively is C, D, X, Y, Z, Vc, J0. 3. Use the K key to switch the menu, in the "ESR", "Vc" J0 calibration calibration "," the three menu to switch between. 4. Boot into the "ESR" menu, use the K key to switch auxiliary parameters, can be switched in C, D, X, Y, Z among the 5 parameters. 5. The C parameter is the capacity of the capacitors, a total of two, first is 72kHz square wave measured, second is 3kHz square wave measured 6. The D parameter is zero DC, with two parameters, first are zero zero time values, second is the zero drift zero moment to moment.Debugging ESR table. 7. The X parameter is 72kHz under X axis measuring value, there are two parameters, first are zero time values, second is the measurement of relative value (i.e. deducted zero value and DC drift).Debugging ESR table. 8. The Y parameter is 72kHz under y axis measuring value, there are two parameters, first are zero time values, second is the measurement of relative value (i.e. deducted zero value and DC drift).Debugging ESR table. 9. The Z parameter is 3kHz under y axis measuring value, there are two parameters, first are zero time values, second is the measurement of relative value (i.e. deducted zero value and DC drift).Debugging ESR table. 10. Measurements should be carried out before the short circuit reset.3 cm long thick copper wire short circuit, and then press the C key.Reset the data will be stored to the MCU internal EEPROM.There may be zero drift, use short time review recommendations, if not zero should be clear treatment Calibration: To set two parameters, Vc and J0.The Vc parameter should be about 525, J0 is about 13.Before calibration, if J0 is more than 40 of the values or -30 values below, please J0 set to 0, then the following calibration. 1. Use 3cm thick copper wire for short circuit to clear, this is the first step, is the premise. 2. Amplitude calibration: access to a 15 to 20 ohm resistor color ring.Press the Menu button, switch to the Vc calibration menu, use "C" and "K" or Vc value, the R value displayed as close as possible and the resistance being measured. 3. Phase calibration: 0.47uF/630V CBB capacitor to known ESR (ESR is in commonly 20 to 30 MOhm).Press the M button, switch to the J0 calibration menu, use "C" and "K" or J0 value, the R value displayed as close as possible to the ESR and capacitor. 4. Hold down the M key for 3 seconds, then release, will automatically save parameters, prompt on the screen. 5. And then press the M key, return to the ESR state measurement Feedback: We will leave 5 Star psitive Feedback after receiving the payment.5 Star Feedback is our life. Please help do not leave a neutral or negative feedback and Low score, Please do contact us to get a better solution! Your understanding will be appriciated! We believe all the problems can be solved if buyer works with us I am a honest seller , Please 100% trust! Your sasifation is our final goal!!, Our best service will let you 100% satisfy!! Hope also to receive your 5 star positive feedback! Note: The economy shipping will be no tracking number , Only have the recording number to prove it sent If you need the tracking number , Please select the stardard shipping, Will be sent by the HK Post /China Post Registered mail Contact With Us: 1. Please contact us with any comments, questions or suggestions that you may have, we will be happy to assist you. 2. You can contact us by leaving us an eBay message, or email us. You can find our email address in you Winning Buyer Notification email. 3. Our working schedule: (including hotline and online inquiry) 4. We Respond emails within 24 hours, Weekend within 36 hours . We apologize for the late reply during the holidays in Hong Kong. Return Policy: We have a 45 Day Money Back Guarantee ! We will issue a refund upon our receipt of the original product Only defective product or wrong item will be offered exchange or store credit Please contact me before you return it, We reserve the right to refuse any returns for our reasons. Return products must also be in original condition If you have any problem, please contact me frist,we will solve the problem for you. I think we can resolve the dispute through friendly negotiations Shipping : United States / United Kingdom / Australia/Canada 10-20 Business days Singapore / other include Asia country 15-25 Business days European Countries 20-30 Business days Other Countries May be more than 30 Business days Payment : We only accept Paypal Pease done the payment through the paypal within 5 working days after your biding Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge inkfrog terapeak i000000
