Infiltec Model Infra20 Infrasound Monitor & Usb Adapter & Data Logging Software

US $345.00

Waynesboro, Virginia, United States
Jan 29th

Open on mobile:
QR code

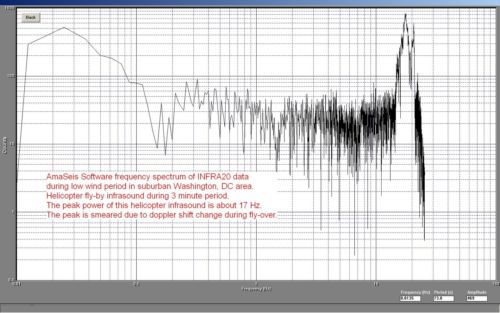

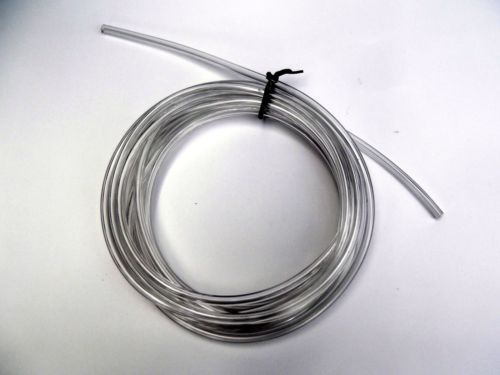

The Infiltec Model INFRA20 infrasound monitor is designed to record, display and analyze infrasound below the human hearing range in the 0.05 Hz to 20 Hz range. Infrasound is produced by wind turbines, helicopters, meteors, avalanches, volcanoes, large animals like elephants, etc. The INFRA20 is designed to provide infrasound monitoring for lab, home, school and field use in a compact, portable, and rugged package that is less expensive and easier to use than conventional designs. The INFRA20 does not require any power supply or assembly or enclosure or adustment; including alignment, damping, zeroing, etc. The INFRA20 works with the standard AmaSeis Windows based software, and with the new jAmaSeis software for Windows, Linux and Mac OS. For laboratory, field, school, office, or home use to record and analyze infrasound. This infrasound monitor comes with a 15 ft (4m) serial cable, 15 ft (4m) of 1/8 inch ID plastic tubing, a USB-Serial adapter, and a CD contianing Windows software and software manual. Detects infrasound in the 0.05 Hz to 20 Hz band that is generally inaudible to the human ear. Applications include monitoring wind turbines, machinery noise, building noise, elephants and other large animals, meteors, avalanches, volcanoes, earthquakes, cryptozoology studies of big foot and sasquatch, and paranormal investigations. Requires an attached PC to log and display infrasound data, but other programs can run on PC while the infrasound data logging program is running. Works with Windows XP and above. The seismic data logging and analysis program AmaSeis is supplied on CD. Also runs with the new jAmaseis seismic software that runs on Windows, Linux and MAC OS. The INFRA20 is not very sensitive to vibration or orientation, but it is very sensitive to temperature changes or altitude changes. Serial extension cables up to 100 ft can be used to connect it to the data logging PC. The infrasound sensor is a differential pressure sensor with 1/8 inch ID tubing connection that is located on the side of the box that allows for tubing to be used to separate the monitor from the infrasound sensing location. The monitor is self adjusting, and never needs alignment, zeroing, leveling, or any other adjustments. No external power supply required. Setup takes minutes. Resolution is 0.001 Pascal (0.01 microbar). Range is ±25 Pascals. Sampling rate is 50 sps. Serial output data format is 9600bps, 8N1, 16 bit ASCII.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Infiltec
Country/Region of Manufacture	United States
Model	INFRA20
