Isc 55 Crusher Vsi Portable W/ Conveyor Stone Sand Gravel Gold Rock Crusher

US $19582

Gallipolis Ferry, West Virginia, United States
Jan 30th

Open on mobile:
QR code

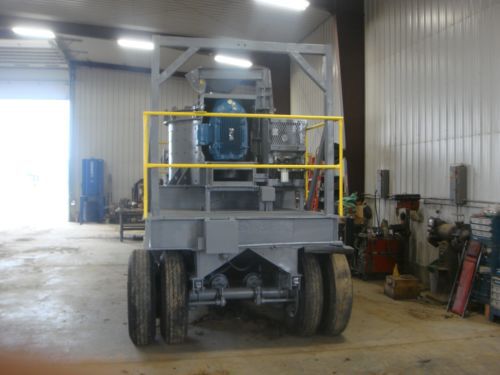

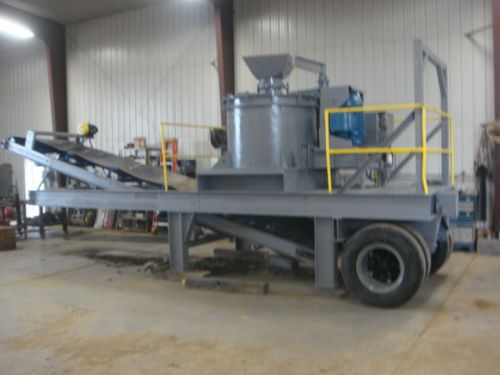

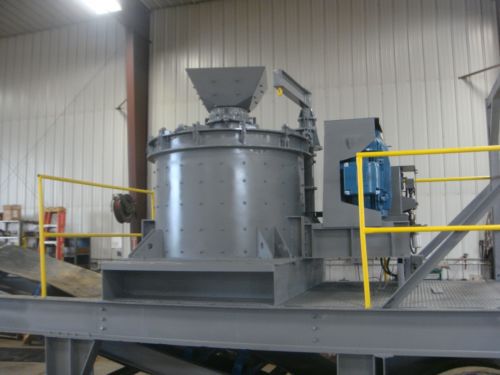

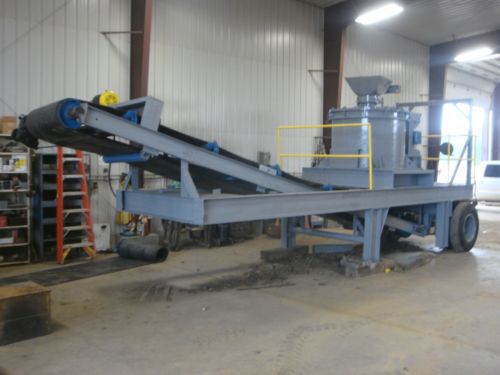

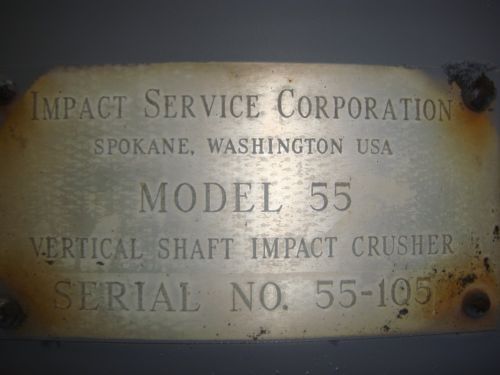

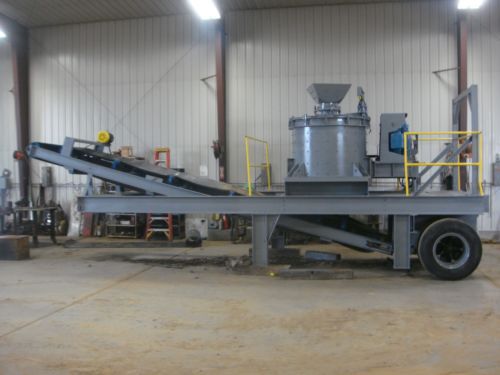

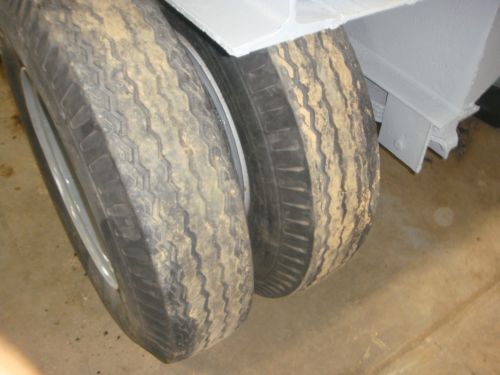

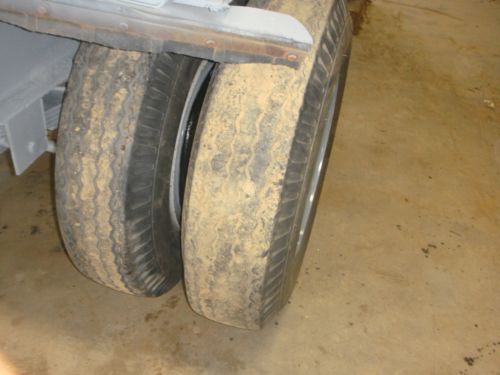

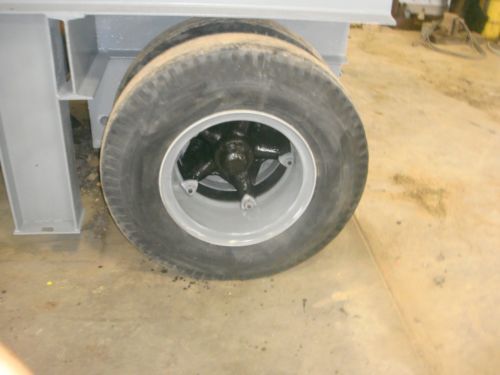

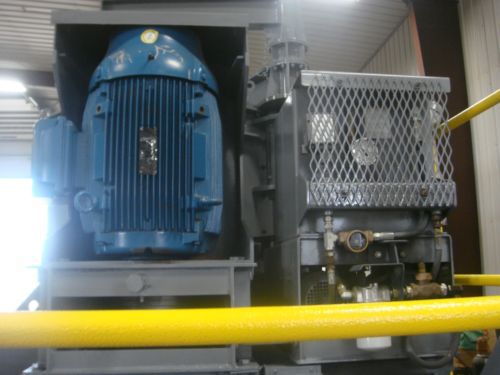

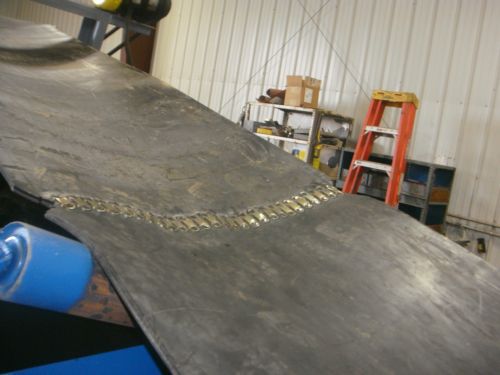

For Auction - 1 - ISC Model 55 Vertical Shaft Impactor (VSI). SN 55-105. We purchased this item to complete a project for a specific customer. While it was being rebuilt the customer sold his operation to a competitor that had its own aggregate source. The purpose for us was to produce a #8 gravel (pea) with two face fractures. The crusher was purchased from Process Machinery in Kentucky. They took it to their facility and rebuilt the wear parts and installed a new 150 HP crusher duty vertical motor. We were told by Process that it will crush -1-1/2" river gravel at a rate of 100 TPH with the majority of the particles in the 3/8" x 1/4" range. The crusher has a 25' x 36" under conveyor and the belting is brand new. It has a Dodge shaft mounted gearbox. The conveyor folds back on itself for transport. The entire unit is mounted on a single axle carrier with a fifth wheel pin. There are 4 - 10.00 x 20" tires with about 30% tread remaining. The entire machine has been freshly painted and the conveyor inspected and repaired. We bought this crusher at the recommendation of a veteran in the crushing business. He owns several similar units and said that they are ideal for making a cubical product as specified in the paving industry. We have never used this crusher or wired it up for that matter. It is freshly rebuilt and ready to operate. If you have any questions, please feel free to call me at (740) 441-5308 or (304) 675-7516 and I will try to help. We would welcome anyone to come to our site and inspect the machine. Since my last listing, I have acquired more information on the unit. It has a 6 - shoe rotor and a 24 anvil ring. Two of the anvils are new and 22 are from the original machine when purchased. Process assures me that the 22 old anvils are 75% or better but I do not know. They look to me as if they may be in various conditions but all appear to have a good bit of life in them. I have copied the original sales order description for your review. Crusher description: One (1) Used ISC Model 55 VSI Crusher as follows: - Unitized frame construction with square base plate and dual opposing drive tunnel bolt plates - Heavy duty bearing pedestal assembly and flywheel with cast liners and cast skirt cone - Cast tunnel liners and tub liners - Lid with three (3) hinged rubber sealed inspection doors with wedge lock latch bar and safety lock pin and cast lid liners - Twelve (12) quick release lid wedges with chain tie downs - Power operated hydraulic lid lifter for easy lid removal (360 degree rotation) - Externally adjustable feed tube assembly with 12" ID cast feed tubes and rubber dust seal - Rotatable feed box with two (2) cast liner - Adjustable feed splash plate with two (2) cast liners - 27" 6 Shoe Heavy duty double bolt impeller table with cast liners and cast impeller shoes - Adjustable anvil cluster ring with twenty-four (24) heavy duty dovetail cast anvils - One (1) bolt-on drive tunnel with adjustable V-belt take-up and removable V-belt safety guard - One (1) drive end motor mount and cover - One (1) drive tunnel cover plate for opposite drive end - V-belts with one (1) sheave and bushing for required speed - Oil Lube System: - Bolt-on lube tunnel and thirty-one (31) gallon tank - 2 HP, 1720 RPM, lube pump motor and oil pump, oil pressure switch, temperature gauge, high oil temperature switch, spin-on oil filter, in-line oil flow sight gauge, oil level sight gauge, and side mount oil filler/breather cap assembly - 2 HP, 1720 RPM, frame lid lifter pump and motor and oil pump, manifold block, check valve, flow control valve, pressure relief valve, pressure gauge, directional control valve, cylinder flow control valve - Single Electric Drive to include a new 150HP motor on the adjustable V-belt take up and removable V-belt safety screen belt guard, drive motor mount and cover, and motor sheave and bushing for required speed List of new parts and new components to be installed: Qty Description 1 M-55 24 Count Anvil Ring 2 5310A Anvils 6 5014D Shoes 2 New Pedestal Oil Seals 1 New Oil flow system 1 New Oil Filter 1 New Lube oil 1 150 HP 1200 rpm WEG Motor 1 Motor sheave for correct speed If you have questions about anything, please give me a call. Thank you for looking

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Newly rebuilt wear components”
