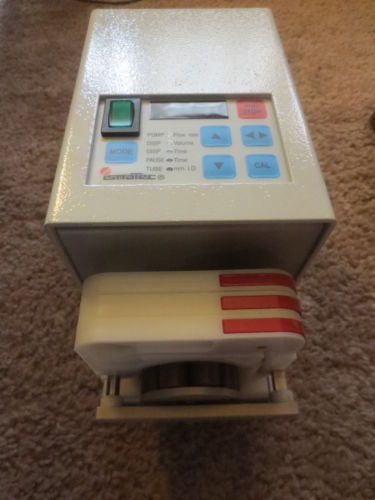

Ismatec Model 78017-10 Pump; Digital 4-ch Var-speed Pump; 0.003 To 31 Ml/min

US $910

Santa Clarita, California, United States
Feb 16th

Open on mobile:
QR code

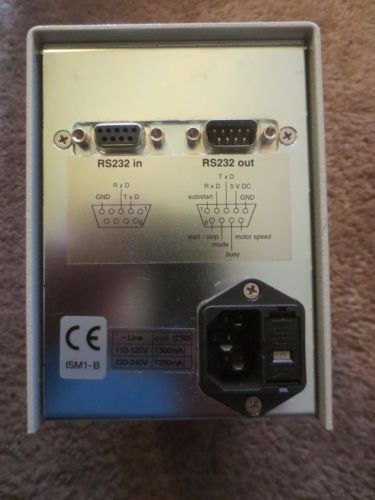

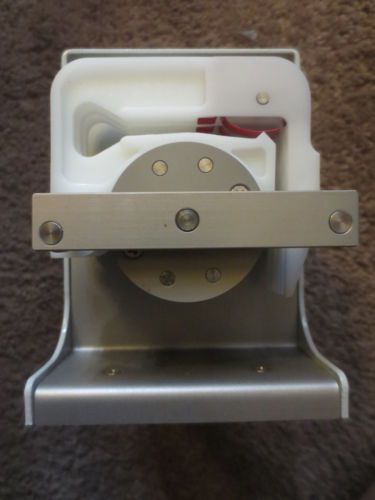

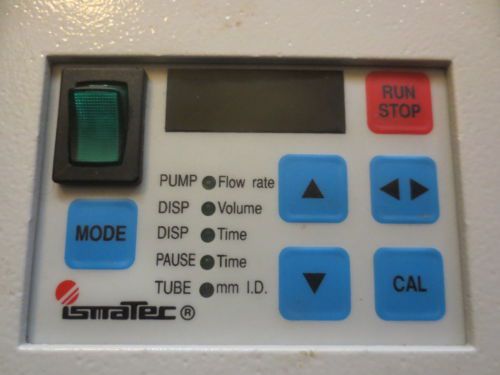

Ismatec Digital 4-Ch Var-Speed Pump http://www.coleparmer.com/Product/Ismatec_REGLO_Digital_4_Ch_Var_Speed_Pump_0_003_to_31_mL_min/WU-78017-10#Specs Dimensions (" D): 5.3125 Power (VAC): 115/230 Power (Hz): 50/60 Input: 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA Flow range (mL/min): 0.003 to 31 These space-saving pumps provide up to four pumping channels while using very little benchtop space. Self-lubricating, Ertalyte® rollers provide consistent flow with reduced tubing wear. Use Click’n’go™ minicartridges for consistent results. Reverse flow direction with the flip of a switch. Select two- or four-channel pumps; twelve roller pumps provide smooth, even flow. Continuously pump or dispense in any of four modes: – Flow rate: 0.003 to 59 mL/min – By time: 0.1 seconds to 999.9 hours – Batches: set delay between dispensed volumes – Drip-free: program back-steps to prevent drips Pumps feature analog input and output controls, as well as an RS-232 interface for control by a computer. Remote control capabilities: RS-232 to control all operating functions (DB9 male); 0 to 5, 0 to 10 VDC, 0 to 20, 4 to 20 mA for speed control, start/stop, reverse direction, and autostart via contact closure (DB15 male); footswitch and hand dispenser (three-pin DIN port).These space-saving pumps provide up to four pumping channels while using very little benchtop space. Self-lubricating, Ertalyte® rollers provide consistent flow with reduced tubing wear. Use Click’n’go™ minicartridges for consistent results. Reverse flow direction with the flip of a switch. Select two- or four-channel pumps; twelve roller pumps provide smooth, even flow. Continuously pump or dispense in any of four modes: – Flow rate: 0.003 to 59 mL/min – By time: 0.1 seconds to 999.9 hours – Batches: set delay between dispensed volumes – Drip-free: program back-steps to prevent drips Pumps feature analog input and output controls, as well as an RS-232 interface for control by a computer. Remote control capabilities: RS-232 to control all operating functions (DB9 male); 0 to 5, 0 to 10 VDC, 0 to 20, 4 to 20 mA for speed control, start/stop, reverse direction, and autostart via contact closure (DB15 male); footswitch and hand dispenser (three-pin DIN port). Used but in like-new condition. Comes with power cord. Specifications Dimensions (" D) 5.3125 Power (VAC) 115/230 Power (Hz) 50/60 Input 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA Flow range (mL/min) 0.003 to 31 Max flow rate (mL/min) 31 Max pressure (bar) 1.5 Max pressure (psi) 22 Tubing Three-stop Rollers 8 Channels 4 Dimensions (" W) 7.5 Depth (mm) 134.9 Width (mm) 190.5 Height (mm) 101.6 Product Type Peristaltic Pump Dimensions (" H) 4 Brand Ismatec Input (VDC) 5/10 Input (mA) 20 Motor speed (rpm) 1 to 100 Manufacturer number ISM834C
