Jdsu Acterna Hst-3000 Tester W/ E1 Service Testing Interface Module

US $1,695.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

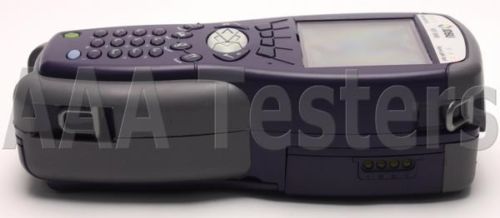

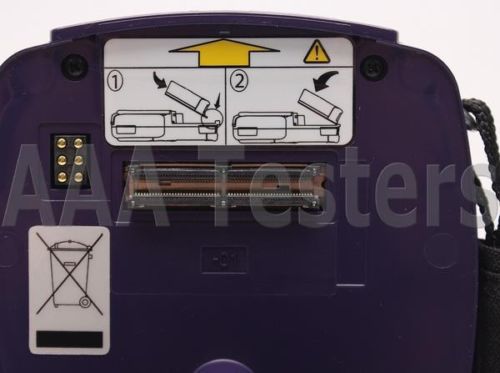

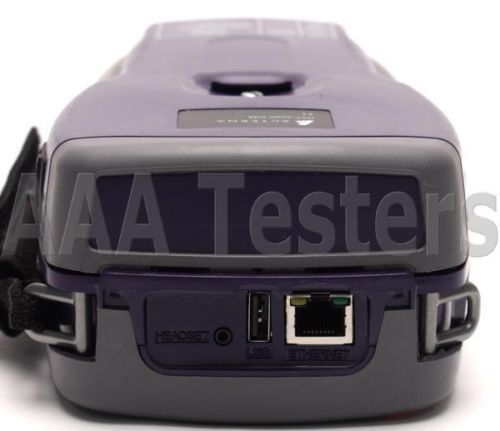

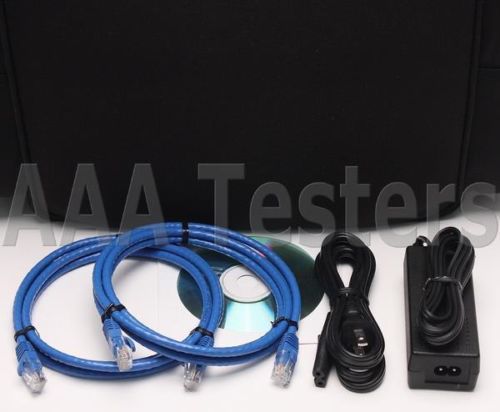

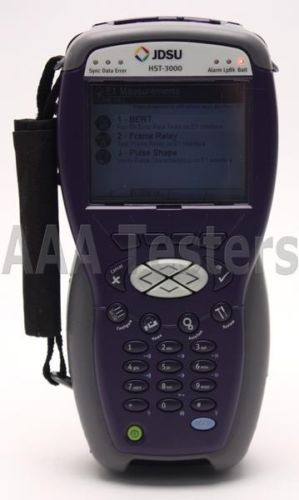

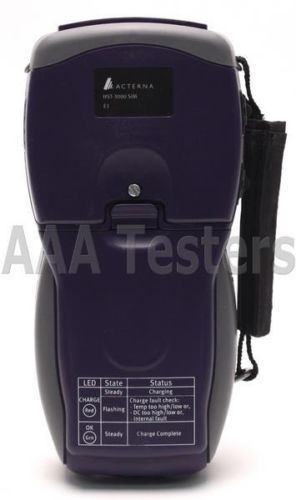

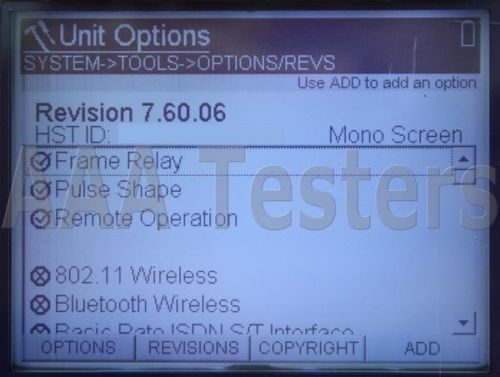

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: JDSU HST-3000 HandHeld Consumer Services Tester (BC# 16732) w/ Option: Frame Relay Pulse Shape Remote Operation JDSU HST-3000 SIM E1 Module (BC# 16733) (2) Ethernet Cables Battery Pack AC Adapter/Charger Power Cord User Manual On CD-ROM Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! JDSU Acterna HST-3000 HandHeld Consumer Services Tester Installed Options: - Frame Relay - Pulse Shape - Remote Operation INCLUDED MODULES: - JDSU HST-3000 SIM E1 (E1 Circuit Tesing) Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Acterna HST-3000 Handheld Consumer Services Tester Highlights Test call types including voice, 56K, 64K, Nx56K, Nx64Kand H0 to verify correctswitch translations for inbound and outbound calls Place and receive calls on T1 (primary or secondary) for NFAS configurations Switch in-service D-channel to stand by D-channel for verification of Dchannel backup operation in NFAS configurations Call status results provide summary of calls D-channel monitoring of layer 2/layer 3 cause code messages Store and print full layer 3 (Q.931) decodes As a widely deployed service, ISDN is a key source of revenue for telecommunication service providers world-wide. This, coupled with today’s reduced budgets and smaller workforces, make it more critical than ever to ensure the timely and successful turn up and maintenance of ISDN service – the first time out. Additionally, thorough ISDN testing can prove more complex than basic physical layer and BER testing for technicians who lack the necessary training. To meet these challenges, an easy-to-use, versatile test solution is required that helps reduce failures and repeat rates while enhancing efficiency and ensuring consistent test practices. The Acterna HST-3000 is a powerful and versatile test instrument for testing ISDN PRI service. Hand-held, rugged and easy-to-use, the HST-3000 is ideal for field use. Its modular design provides a scalable, all-in-one solution for ISDN testing, as well as thorough testing of the facilities over which it is provided. The HST-3000 ISDN PRI option enables testing of Primary Rate ISDN circuits at both the customer site and central office. It supports call placement, receipt, D-Channel Decode analysis for 23B+D, NFAS (Non-Facility Associated Signaling), 24B and backup D channel switching. With the full range of T1 loopcodes and BERT patterns it can also test BER across any combination of channels to verify service before delivery to the customer. Compact and rugged for field technicians, the HST-3000 can be used in all conditions, from an inside office environment to a noisy, wet outdoor span repeater. The HST-3000 also boasts automated setups and advanced features that ensure consistent adherence to service provider methods and procedures. Each HST-3000 is built to order and can easily be field-upgraded with new modules and software as application and technology needs change. Call Verification The HST-3000 can place, receive and monitor ISDN PRI calls on a primary or secondary T1 interface. It has the ability to place and receive single or NFASvoice, 3.1 kHz audio, 56k data, 64k data, Nx56/64k data or H0 calls. In addition, dual transmit/receive interfaces, standard on each T1 Service Interface Module (SIM), allows the HST-3000 to be deployed to test in-service to standby D-channel switching. Allmajor call controls are supported, including National, DMSand 5ESS. For incoming calls, the HST-3000 can either prompt the user to accept or reject the call, automatically accept or reject the call, or accept and loop back the B channels. After a call has been accepted, the technician can drop the received B channel data to the speaker or headset or BERT the call. BER testing and a voice path via a handset is provided to qualify these data and voice calls, respectively. This allows technicians to access T1 physical linkmeasurements and verify switch translations prior to delivering service. Easy-to-read result menus allow technicians to view ISDN statistics, call status, BERT results, T1 results and D-channel decodes. Technicians can also view a summary screen that presents a rapid assessment of test performance and a summary of results for the physical layer, LAPD and Q.931 results. D-Channel Decodes Analysis D-Channel decodes help to verify that a call is successfully established, or determine why a call was not completed by examining the protocol cause values. The HST-3000 can monitor layer 2 (Q.921) and layer 3 (Q.931) cause code messages on the D-channel in both terminate and monitor modes. Layer 2 results give technicians the ability to check link and D-channel status, verify LAPD frames and check utilization rates. Following link establishment, layer 3 decodes allow technicians to verify such factors as call state, who made or dropped the call, why the callwas dropped, where the call is being carried (Interface ID/B-Channel) and call types. Troubleshooting Non-intrusive, bi-directional monitoring of in-service D-channel signaling messagesmakes troubleshooting ISDN service easier. For ISDN PRI circuits, the technician can access live D-channel lines through monitor jacks on a DSX patch panel. If the problem can not be isolated, then sectionalization can be accomplished byemulating either the TE or the NT. This enables the technician to sequentially replace each piece of premise equipment to identify the source of errors– reducing the total time to trouble resolution. Results can be displayed on-screen or stored for later retrieval and output via RS-232, USB or Ethernet connectivity standard with each base unit. Flexible and Rugged Design The HST’s rugged, weather resistant design and long battery life are ideally suited for use in the field. I tsmodularity allows for field upgrades to support new testing requirements. Standard Ethernet, USB and serial connections offer flexibility to easily download software and offload captured test data. Easily configurable, the HST-3000 can be used by different technicians with different responsibilities to perform a wide number of tests. The HST-3000 is easily upgradeable with technologies and advanced options that support the changing needsof service installers. Test the Copper, Test the Service, Improve the Process If equipped with the Copper Testing option and a copper Service Interface Module , the HST-3000 can quickly troubleshoot the local loop for line impairments that degrade or impair T1 performance. With the HST-3000, technicians can quickly identify and locate cable impairments: shorts, grounds, opens, crosses, bridged taps, wet sections and other high resistive faults. These impairments are easy to accesswith the HST-3000’s advanced time domain reflectometer (TDR), precision digital volt/ohm meter (DVOM) and an accurate resistive fault locator (RFL) to pinpoint troubles prior to circuit installation. Copper test features are optimized for use anywhere on the local loop – at the NID, crossbox, pedestal, main distribution frame or anywhere a technician might gain access to the local loop to locate the source of trouble. The T1 or HDSLfacility that carries the ISDN PRI service can be qualified using a number of BERT patterns, such as QRSS, 1 in 8 and 3 in 24. The HST-3000 has an internal T1 clock signal and can also respond to in-band or out-of-band loopback commands, making it ideal for end-to-end or loopback BER testing. After the physical layer has been tested, the actual ISDN service can be tested by placing and receiving calls, which verifiesproper switch translations. The HST-3000’s pre-programmed tests and customized scriptsensure that all technicians, including novice users, follow the same procedures, eliminating mistakes caused by improper test configurations or incorrect procedures. Acterna’sTechComplete™ software (optional customized), allows the HST-3000 to improve turn-up and maintenance processes by operating with service provider’s dispatch and closeout report systems to offload stored test results for later trend analysis and coaching reports. With these features, the HST-3000 can reduce repeat rates and failures and improve overallprocess efficiency. JDSU HST-3000 E1 SIM Module Dual E1RX/TX Two separate receivers (RX) and transmitters (TX) allow for the simultaneous monitoring and evaluation of a wide range of alarms and errors. Different test modes with clock preferences support all of the requirements for ITU-T G.703 frame analysis, BERT, ITU-T G.821, ITU-T G.826, and ITU-T M.2100. This enables operators to validate connectivity and QoS quickly and efficiently. E1 Pulse Shape Option Incorrect pulse shape, due to jitter or incorrectly terminated interfaces, causes poor network performance. The Pulse Shape software option quickly assists in identifying network problems during installation, commissioning, or troubleshooting by comparing the pulsewith the ITU-T G.703 pulse mask.The software averages the received E1 pulse and automatically displays the result against the ITU-T mask. Frame Relay Option With the Frame Relay software option, technicians can verify that frame relay service is functioning properly by testing LMI activity, PVC/DLCI status, congestion, and lost frames to validate committed information rates (CIR). Bidirectional Monitoring The HST-3000 can monitor transmission passively in both directions to confirm physical layer and service level results on E1 Circuits. Specifications: Transmitters To G.703 Outputs 2x balanced RJ-48 jacks Impedance 120ohms Unbalanced / 75ohms via adapter cables Bit Rate 2048 kbit/s , +/- 3 ppm, +1 ppm per year aging Line Code HDB3 or AMI Frequency Offset +/- 100ppm in 1ppm intervals Slip Reference Opposite RX, External E1 Reference Clock Clock Source Internal, Recovered from RX1 or RX2, External E1 Reference Clock (via optional cable) Receivers To G.703 Inputs 2x balanced RJ-48 jacks Impedance 120ohms or bridged (hi-Z) Unbalanced / 75ohms via adapter cables PMP Compensation 20 to 31dB gain Bit Rate 2048 kbit/s Level Measurement +3 to -37dB nom Slip Reference Opposite RX, External E1 Reference Clock External E1 Reference Clock 0.5 to 3V square or sine wave, 2,048MHz, unbalanced / 75ohms (at adapter cable input) E1 Circuit Testing Framed and unframed test signal generation Bulk, n x64kbit/s BERT G.821, G.826, M.2100 analysis Error and alarm and generation and analysis Round Trip Delay Signal Level and Frequency Audio Monitor Si, Sa, A-bit, and E-Bit (REBE) monitoring and generation Test Modes Terminate, Monitor, Drop and Insert, Line Loopback Performance Measurement G.821, G.826, M.2100 Test Patterns 2^6-1 (ITU), 2^9-1 (ITU), 2^11-1 (ITU), 2^15-1 (ITU & ITU INV), 2^20-1(ITU & ITU INV), 2^23-1 (ITU & ITU INV), QRSS, QBF Mark (All Ones), Space (All Zeros), 1:1, 1:3, 1:4, 1:7 User Bit Patterns 3 to 32 bits User Byte Patterns 1 to 64 bytes Live Delay Auto (via Auto Configure) Anomaly (Error) Injection Bit (TSE) Single, rate, multiple Code, CRC, Pattern Slip, E-Bit (REBE) Simple FAS Single, 2, 3, 4 MFAS Single, 2 Defect (Alarm) Generation LOS, LOF, AIS, RDI/FAS distant, MF AIS (TS-16), MF RDI/MFAS distant Anomaly (Errors) Counts Bit(TSE), Code, FAS, MFAS, CRC, E-Bit Frame Data Sa4, Sa5, Sa6, Sa7, Sa8, NFAS A-Bit, NMFA Signal Results Signal loss (seconds), bit slips, RX level, TX and RX bit rate BERT Results Bit errors (TSE), bit errorrate, errored seconds, error-free seconds, percentage error-free seconds, pattern slip, roundtrip delay, pattern loss seconds (LFF) Audio Monitor From RX1, RX2, or RX1 and RX2 Round Trip Delay Range 0-10 s Resolution 100 µs Result Categories Summary, LED, Signal, Frame Data, Timeslot, BERT, Performance (G.821, G.826ISM, G.826 OOS, M.2100ISM, M.2100 OOS), Time, Event Table, Event Log, Event Histogram Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Model	HST-3000
Manufacturer	Acterna
