Jergens Kwik-lok Lifting Pin 1/2" X 3/4" 807281 + Mcmaster 94715a830 Receptacle

US $110

San Francisco, California, United States
Jan 29th

Open on mobile:
QR code

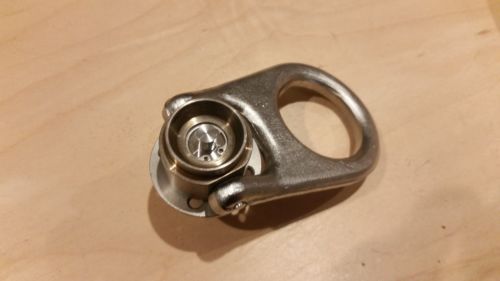

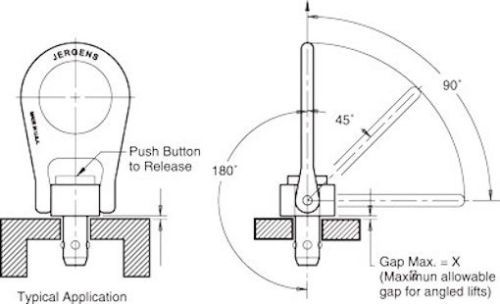

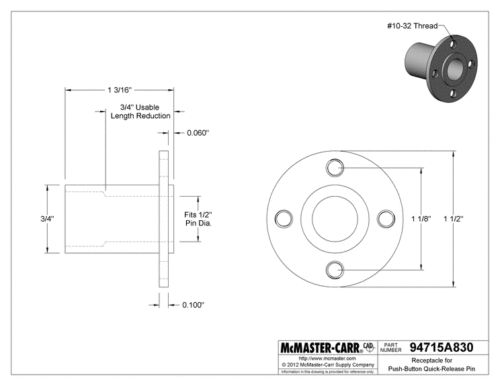

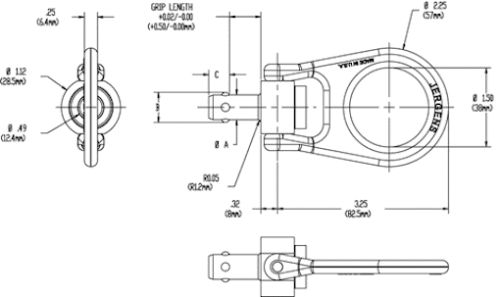

You are bidding on 1 ea Jergens Part # 807281 and 1 ea McMaster-Carr Part # 94715A830. Both are new and unused but do not have packaging. Current new price for the lifting pin is $84.50 and the receptacle is $33.72 (plus shipping from two different vendors). These two parts mate perfectly but I do not know what their combined lifting capacity is. Kwik-lok Pin details from Jergens: All Stainless steel construction and components. The lifting pin is rated at 1,250 max load rating. Lifting load ratings are based on tests with hardened tool steel plates or shoulder bushings. Load ratings may be reduced if oversized holes or parent material under 80,000 psi tensile are used. 17-4 PH stainless steel forged, heat treated lifting ring with large opening. Lifting ring with load spreader bar 5-1 strength factor Resists corrosion in harsh environments Accommodates wide range of lifting hooks/hardware Helps prevent accidental actuation of ball release button The ability to lift with confidence Need receptacles? Please view our Threaded Receptacles Important: Please review all operating instructions that are included in the packaging or online before use. Important: Kwik-Lok® Lifting Pins are not suited for continuous rotation under load. Note: If the required hole size cannot be achieved, Jergens recommends the use of our threaded receptacle. Please contact us at 866-KWIK-LOK (866.594-5565) with any questions. Receptacle details from McMaster-Carr: Fits Pin Diameter 1/2" Barrel OD 3/4" Overall Length 1 3/16" Flange Width 1 1/2" Height 1 1/2" Usable Length Reduction 3/4" When your pin doesn't have a surface to lock against, use these receptacles for a permanent mating hole. Receptacle mounting hole size is 10-32. I do not know what the load rating or material is for the receptacle but I am guessing stainless steel (it looks like stainless steel and it is not magnetic). Note: The buyer assumes all responsibility and liability for the safe usage of these parts and agrees to hold the seller harmless for all consequences of their use. These parts are sold on an as-is basis; the buyer's only recourse is to return the parts within 14 days if they do not find them suitable. Returns are accepted within 14 days and must include the tamper-proof decals (easily removed but not replaced) numbered 123145 and 123142. Beyond this return policy, no warranties are provided of any kind. Descriptions are provided on a best-faith effort but should be verified with the original manufacturer and/or retailer before these parts are used in any fashion. DO NOT USE FOR OVERHEAD LIFTING. DO NOT USE TO LIFT PEOPLE.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“No packaging, otherwise new and unused”
