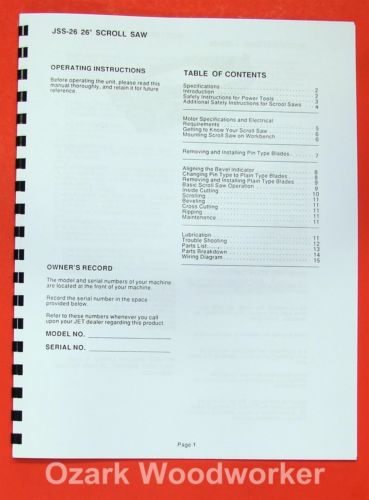

JET/Asian JSS-26 26" Scroll Saw Operator's & Parts Manual 0394, US $17.50 – Picture 1

Jet/asian Jss-26 26" Scroll Saw Operator's & Parts Manual 0394

US $17.50

Nixa, Missouri, United States
Jan 30th

Open on mobile:
QR code

Free, Fast Shipping Every Business Day! See All Categories How-to Books Lathe Practices Series Lathe Operations Milling Operations Grinding Operations Metalworking Woodworking Brands JET Tools/Asian JET/Asian 26-inch Scroll Saw JSS-26 Instructions and Parts Manual Click for Our Complete Catalog Manual Description: Number of Pages: 16 This is a reproduction, not a photocopy, of an original JET JSS-26 26-inch Scroll Saw Instructions and Parts Manual. This manual contains general safety instructions, operating instructions, assembly instructions, adjustments, maintenance, lubrication, and a complete set of exploded view diagrams of the parts with description. Please read index below. PLEASE READ: This machine was produced in Asia, and was sold under different brands. To help identify your machine I am posting a picture plus a specification sheet of the size and speeds of the machine. I do not have model numbers of the other companies that this machine was sold under. I have provided all the information I have. The only way I can help you find which manual fits your machine is to send me a picture by email to ray@ozarkwoodworker.com or postal mail. Specifications Stock Number: 708375 Table Size: 8" x 20 1/2" Table Tilt: 0-45° Left Throat Depth: 26" Stroke Length: 9/16" Strokes Per Minute: 850/1750 SPM Blade Length: 5" Maximum Thickness of Cut: 1 5/8" Type of Power Drive: Direct Drive Speed Control: 2-speed Switch Control Bearing Type - Arm Pivot: Self-Lubricating Bearing Type - Tie Rod to Motor: Ball Bearing Motor: 1/8HP, 1Ph 115 V U.L. Listed Motor Speed: 850/1720RPM Overall Dimensions: 34 1/2" x 12" x 15" Net Weight (approx.): 73.7 Lbs. Gross Weight (approx.): 77 Lbs. Index Specifications....................................2 Introduction......................................2 Safety Instructions for Power Tools...............3 Additional Safety Instructions for Scrool Saws....4 Motor Specifications and Electrical Requirements......................................5 Getting to Know Your Scroll Saw...................6 Mounting Scroll Saw on Workbench..................6 Removing and Installing Pin Type Blades...........7 Aligning the Bevel Indicator......................8 Changing Pin Type to Plain Type Blades............8 Removing and Installing Plain Type Blades.........9 Basic Scroll Saw Operation........................9 Inside Cutting...................................10 Scrolling........................................11 Beveling.........................................11 Cross Cutting....................................11 Ripping..........................................11 Maintenence......................................11 Lubrication......................................11 Trouble Shooting.................................12 Parts List.......................................13 Parts Breakdown................ Overview: I have collected this information for many years and have found the information they contain to be priceless in using and setting up the machines properly. I believe this manual will be a valuable resource of knowledge that will provide a lot of helpful information that is often hard to find. My manuals are not photocopies. I maintain a high standard of quality in my reproductions. Most of the manuals I reproduce look better than their originals. I have professionally digitally edited every page, and removed stains, wrinkles and handwriting. All of the manuals are printed on thick white paper to withstand shop wear and tear. Click here to see other work I do, and pictures of my shop. From our shop to yours. We get this. But you get this! Why settle for anything less? Check out my other manuals. Shipping: Returns: Contact Us: I may be running machinery, or I may be mailing manuals, and can't hear the phone. If so, please leave a voicemail and I guarantee that I will get back with you. Click here to see other work I do, and pictures of my shop. Be sure to add me to your favorites list, and check out our other items! I may have more than one manual that covers your machine, and I am adding new manuals all the time. I do not carry additional parts for machinery, except for what is listed. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
