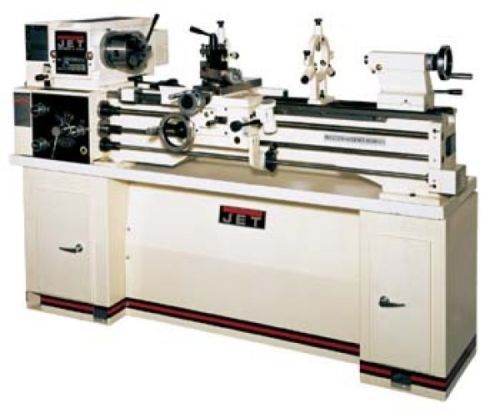

Jet Belt Drive 13" X 40" Bench Lathe #bdb-1340a New With Stand *free Ship!

US $4,899.00

La Vergne, Tennessee, United States
Jan 30th

Open on mobile:
QR code

------------------------------------------------------------------------------------------------------------------------------------------------------- JET 13" x 40" BELT DRIVE BENCH LATHE - NEW INVENTORY # 1550 MODEL # BDB-1340A SPECIFICATIONS SIZE: 13" x 40" SWING OVER BED: 13" SWING OVER CROSS SLIDE: 7 25/32" SWING THROUGH GAP: 18 3/4" LENGTH OF GAP: 8" DISTANCE BETWEEN CENTERS: 40" SPINDLE BORE: 1 3/8" SPINDLE MOUNT: D1-4 SPINDLE TAPER WITH SLEEVE: MT-5 (MT-3) NUMBER OF SPINDLE SPEEDS: 12 RANGE OF SPINDLE SPEEDS: 60 - 1,240 RPM NUMBER OF LONGITUDINAL AND CROSS FEED RATES: 38 RANGE OF LONGITUDINAL FEEDS: 0.0018 - 0.0374 IPR RANGE OF CROSS FEEDS: 0.0006 - 0.013 IPR NUMBER OF INCH THREADS: 38 RANGE OF INCH THREADS: 3 1/2 - 80 TPI NUMBER OF METRIC THREADS: 23 RANGE OF METRIC THREADS: 0.45 - 10 MAX TOOL SIZE: 5/8" x 5/8" COMPOUND SLIDE TRAVEL: 2 11/16" CROSS SLIDE TRAVEL: 6 5/16" CARRIAGE TRAVEL: 35" TAILSTOCK SPINDLE TRAVEL: 3 3/4" TAPER IN TAILSTOCK SPINDLE: MT-3 FOLLOW REST CAPACITY: 2 3/4" STEADY REST CAPACITY: 2 5/8" WIDTH OF BED: 7 3/8" MOTOR: 2 HP / 230 V / 1 PH STANDARD FEATURES: ONE OF JET’S MOST POPULAR LATHES NOW COMES WITH AN ENCLOSED GEARBOX AS A STANDARD FEATURE ENCLOSED GEARBOX DESIGN PROVIDES SMOOTH, QUIET OPERATION FAST, EASY SPEED CHANGES LOW VOLTAGE MOTOR CONTROLS HELICAL CUT HEADSTOCK GEARS REDUCE NOISE CHANGE GEARS ALLOW METRIC THREADING SPINDLE IS SUPPORTED BY PRECISION TAPERED ROLLER BEARINGS V-WAY BED IS INDUCTION HARDENED AND GROUND GAP BED SECTION PROVIDED FOR LARGE DIAMETER WORK INDEPENDENT LEADSCREW AND FEED ROD T-SLOTTED COMPOUND SLIDE WITH FOUR-WAY TOOL POST CARRIAGE MOUNTED SPINDLE CONTROL LEVER AUTOMATIC FEEDING AND THREADING ARE FULLY INTERLOCKED FEED SELECTORS TRAVEL IN GROOVED WAYS TAILSTOCK MAY BE OFFSET FOR TURNING TAPERS (INCLUDES AN INCH/METRIC GRADUATED QUILL) OIL PAN INCLUDED TOLERANCE TEST CERTIFICATE INCLUDED 6" 3-JAW DIRECT MOUNT SCROLL CHUCK WITH TOP REVERSING JAWS 8" 4-JAW INDEPENDENT CHUCK 12" FACEPLATE FOUR-WAY TOOL POST STEADY AND FOLLOW REST METRIC CHANGE GEAR CENTERS AND HEADSTOCK CENTER SLEEVES THREADING DIAL TOOL BOX WITH TOOLS MECHANICAL SPECIFICATIONS: DIMENSIONS: 71" x 32" x 45" H WEIGHT: 1,175 LBS FREE SHIPPING TO YOUR COMMERCIAL LOCATION FOB LA VERGNE, TN FACTORY ***FREE SHIPPING APPLIES TO COMMERCIAL DELIVERY POINTS WITH A FORKLIFT OR LOADING DOCK TO UNLOAD SHOP MORE LATHES HERE CONTACT US: Norman Machine Tool Group 1311 South Ponca St - Baltimore, Maryland 21224 Phone 800-394-4399 - Fax 410-633-7737. Open: Monday-Friday / 9 a.m. - 5 p.m. (Closed most Holidays - Call if not sure) RETURNS Returns will not be accepted without prior approval. If you need to make a return, please contact us before you ship the merchandise back so we can issue you a Return Merchandise Authorization (RMA) number. All items are sold with the best intentions and most complete description available. PLEASE ASK QUESTIONS BEFORE BIDDING!!! Buyer must pay for return shipping. RUN THREE PHASE MOTORS WITH SINGLE PHASE POWER Use a Phase-A-Matic Static or Rotary Phase Converter. Buy the best & buy Phase-A-Matic. Phase-A-Matic phase converters are proven to last for 20 to 30 years. You can run multiple three phase motors from just one phase converter, allowing you to run multiple three phase motors off single phase power! View Phase-A-Matic in our Phase Converter aisle of our eBay store! ............ DISCLAIMER: The information and pictures are believed to be accurate to the best of our knowledge, obtained from sources deemed reliable. However, we do not guarantee accuracy of information and cannot be responsible for any errors or omissions. An inspection should be made. The information on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Please contact one of our sales representatives if you require more information or a current formal quotation. NORMAN MACHINE TOOL, LTD. CONDITIONS OF SALE: INSPECTION AND TEST EQUIPMENT Inspection & Test Equipment will be sold "AS IS" with a conditional return policy on a case by case basis. Please ask questions! The equipment's condition stated in the listing is accurate to the best of our knowledge. We do not specialize in these products and have no way of checking them beyond visual and some minor mechanical functions. We assume most of this equipment must be calibrated professionally. We feel the low prices we offer more than makes the equipment a great value! MDNA 30 DAY WARRANTY Every used machine offered (unless sold on an "as is" basis or brokered) bears a thirty day return privilege. In the event it is found mechanically unsatisfactory (excludes electrical*, as well as original manufacturer’s accuracies and tolerances), it may be returned within thirty (30) days of shipment, freight prepaid, provided it is in the same condition as when shipped from Norman Machine Tool, Ltd., for full refund of purchase price or repaired at the seller's sole discretion. All new machines that have been manufactured by others that have warranties, expressed or implied, are hereby expressly limited to the warranty of the original manufacturer of the goods. All implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed and excluded from this agreement. Care is taken to give reliable descriptions but these are not guaranteed and prospective purchasers are advised to check vital details. We also reserve the right to correct any stenographic errors. All specifications and descriptions of said goods are approximate only. Seller makes no representation or warranty that said goods conform to any specification, description and condition or performance, it is the buyer's responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyer's requirements. Any warranty concerning said goods made by a third party is enforceable only against the third party and not the seller. Conforms to the mdna code of ethics. 30 Day MDNA Warranty applies to items sold at the advertised price.This warranty does not apply to Best Offers without prior agreement, or items sold As-Is. PAYMENT DETAILS: Norman Machine Tool Ltd. gladly accepts PayPal, Visa, Master Card, American Express and Discover. We can run your credit card at our warehouse, or if your prefer, even without an account, you can sign into PayPal as a guest and use your credit card. Local pickups at our warehouse in Baltimore, MD are required to pay 6% Maryland state taxes to abide by Maryland state laws. SHIPPING DETAILS All shipping originates from 21224 zip code. We ship as soon as possible after receipt of payment. Large items that must be shipped via truck will ship as soon as the truck can be secured, usually within 10 business days. Special preparation, such as crating, will delay shipment and will be available at additional cost. We can secure your equipment on a pallet, starting at $50 and varying based on the equipment size, weight, and materials needed. The buyer pays for all shipping. All items need to be paid for within 72 hours of auction end. Go Back to Our Store Homepage CONTACT US: Norman Machine Tool Group 1311 South Ponca St - Baltimore, Maryland 21224 Phone 800-394-4399 - Fax 410-633-7737. Open: Monday-Friday / 9 a.m. - 5 p.m. (Closed most Holidays - Call if not sure) Powered by SixBit's eCommerce Solution On Aug-01-14 at 18:00:58 PDT, seller added the following information: Sellers: Get your own map today. Click here now. Simple."

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	BDB-1340A
MANUFACTURER	JET
