Jovy Jetronix Eco Bga Rework Station Machine Reflow Reballing

US $1,219.99

  • Olympia, Washington, United States
  • Jan 31st

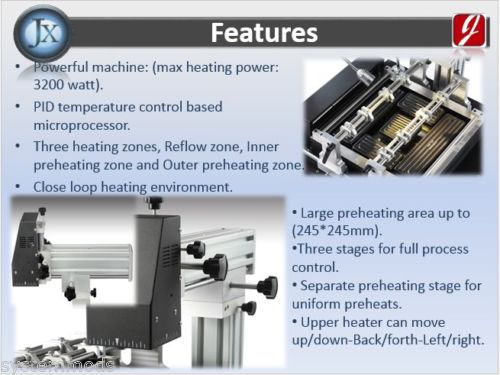

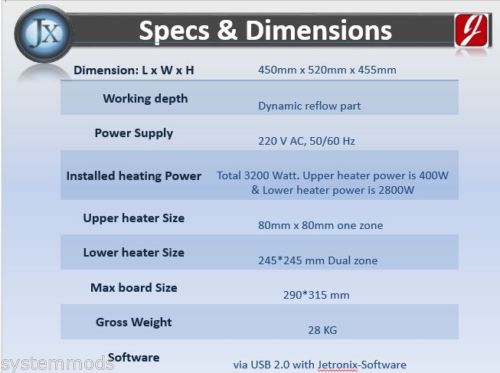

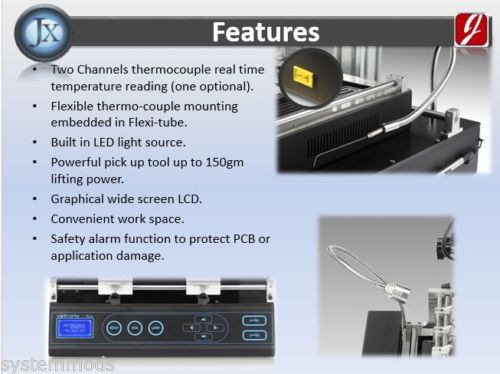

FEATURES High power: max. 3200 W. Three heating zones: reflow zone, inner preheating zone and outer preheating zone. Upper heater can move up/down, in/out and rotate 180°. Large preheating area: up to 245 x 245 mm. Three stages for full process control. Powerful pick-up tool. Wide screen LCD. Safety alarm function to protect PCB or application damage. User friendly software interface via USB 2.0. SOFTWARE Download Jovy Systems Jetronix-Eco Software MANUALS Download Jovy Systems Jetronix-Eco Operation Manual TECHNICAL SPECIFICATIONS Power supply 220 V AC, 50/60 Hz Total heating power 3200 W Upper heater size 80 mm x 80 mm Upper heater power 400 W Bottom heater size 245 mm x 245 mm Bottom heater power 2800 W Max board size up to 300 mm x 400 mm Thermocouple type K-type, built-in flexible Display type 128x64 graphical LCD Suction pump 60-90 dpi (lifting power up to 150 g) Light source 1 Watt LED Memory up to 50 profiles Interface USB 2.0 Software Jetronix-Eco Software Dimensions, L x W x H 450 x 520 x 455 mm Weight 28 Kg
