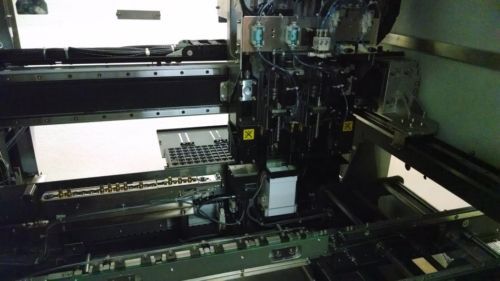

JUKI 760L fine pitch pick and place smt assembly machine prototyle high PnP Pcb, US $26,500.00 – Picture 0

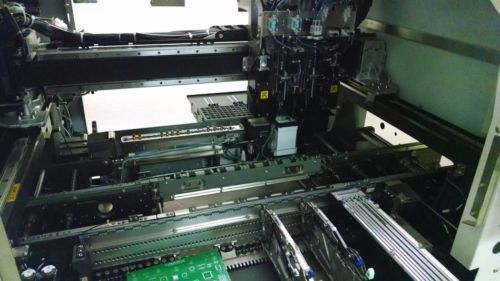

JUKI 760L fine pitch pick and place smt assembly machine prototyle high PnP Pcb, US $26,500.00 – Picture 1

JUKI 760L fine pitch pick and place smt assembly machine prototyle high PnP Pcb, US $26,500.00 – Picture 2

JUKI 760L fine pitch pick and place smt assembly machine prototyle high PnP Pcb, US $26,500.00 – Picture 3

Juki 760l Fine Pitch Pick And Place Smt Assembly Machine Prototyle High Pnp Pcb

US $26,500.00

Longwood, Florida, United States
Jan 30th

Open on mobile:
QR code

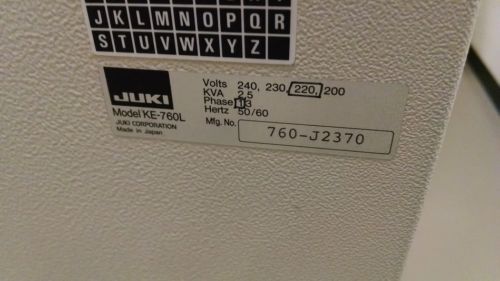

JUKI 760L fine pith pick and place smt assembly machine prototyle high PnP Pcb Powered by SellerVantage Product DescriptionPaymentShippingReturnsAbout UsLegal Juki 760L Serial J2370 fine pitch pick and place assembly machine very capable - very stable easy to use pick and place system. Two-head Laser Alignment System Machine is spec'd to place down to 0402 - with special nozzle and feeder is capable of placing down to 020 The KE-760 incorporates two large laser heads plus a grayscale vision system which can handle components up to 50mm square. Vision recognition capabilities include all ball inspection which detects missing or abnormal balls on BGAs and split recognition for centering connectors up to 150mm long. Power Requirements: 208, 220, 240 VAC, single phase, 50/60 Hz, 3 KVA Program Size: Maximum 2,000 placements per circuit / Maximum 100 non-matrix or 400 matrix circuits per PCB Self-Calibration: Self calibration routine allows operator to recalibrate at anytime in just minutes Up and Down Line connection: SMEMA standard Teach Camera: Allows teaching of placements with one of two CCD cameras mounted on the head assembly Auto Tool Changer: The tool changer holds up to sixteen (16) vacuum nozzles Placement Heads: Two (2) high speed assembly heads driven by an overhead X/Y gantry positioning system with closed-loop twin AC servo motors and magnetic linear encoders Component Centering: Non-Contact TouchLess Centering (TLC) using LaserAlign Sensor or upward looking gray scale vision centering. Laser Coplanarity Inspection option for fine pitch SMDs. Placement Accuracy: LaserAlign: +/-0.0015" (+/-0.04mm) on QFPs (with local fiducials) +/-0.0039" (+/-0.1mm) on chips Placement Rate: 0.32 sec./component (throughput will depend on PCB size and component mix) Dimensions with LaserAlign: 0.04" x 0.02" minimum to 1.32" x 1.32" maximum (1mm x 0.5mm minimum to 33.5mm x 33.5mm maximum) Height: 0.012" minimum to 0.39" maximum (0.3mm to 10mm) Dimensions with Vision Centering: Varies by component type: QFP: min. 0.31" x 0.31" (8mm x 8mm) / max. 1.97" x 1.97" (50mm x 50mm) PLCC / BGA: min. 0.28" x 0.28" (7mm x 7mm) / max. 1.97" x 1.97" (50mm x 50mm) TSOP: min. 0.20" x 0.20" (5mm x 5mm) / max. 1.97" x 1.97" (50mm x 50mm) Connector*: min. 0.12" x 0.12" (3mm x 3mm) / max. 1.97" x 5.91" (50mm x 150mm) / *Depending on surrounding componetry Number of Feeder Inputs: Up to 80 depending on Feeder Mix. Stack Stick Feeders: For stick fed components; can hold up to five (5) tubes at once. SOP PLCC SOJ Belt Feeder Dimensions: 55" wide x 57.9" deep x 78.7" high (1400mm x 1471mm x 2000mm) Weight: 2535 lbs. (1150 kg) Payment Pay with your credit card through PayPal. All in state residents within our state will be charged state and/or local sales tax at the time of checkout. Payment must be received within 7 days of the close of auction. If payment isn't received within 7 days, the auction will be revoked and a Non-Paying Bidder alert will be filed. Shipping Packages are usually shipped within 48 hours of payment receipt (excluding Saturday/Sunday) Shipping costs for all orders can be determined by the shipping calculator in this auction. All orders are shipped via UPS, FedEx, DHL, or USPS. International buyers, please be aware that you may incur a brokerage and/or customs fee upon delivery. Winning bidder is responsible for shipping charges. We reserve the right to choose carrier based on shipping method selected at time of payment. Combined shipping is done at the sellers discretion. If you purchase more than one item from us, they may arrive in separate packages. PFI of Florida: 607 Savage ct longwood, FL 32750 Telephone: 4078224499 Returns All items are sold as-is. We accept returns only if the item was not as described in the auction. Buyer must return the item exactly as received within 7 days and will be responsible for all additional shipping charges. We do our best to present accurate, detailed information about every item we sell. If you have any questions, please contact us before placing your bid. About Us Legal PFI of Florida has used its best efforts to inspect the item(s) for sale and create descriptions and furnish photographs that fairly and adequately depict the type, condition and image of the goods at the time of sale. PFI of Florida makes no express or implied warranties or representations regarding the condition or suitability of the goods and to the extent allowed by law, specifically disclaims any express or implied warranties, including but not limited to any warranty of merchantability or fitness for purpose. Any warranty expressed in the listing itself superceeds these terms. PFI of Florida reserves the right to cancel bids on any item due to feedback. Seller Name: pcbassyequip Add to Saved Sellers Powered By SellerVantage, an Inventory and Consignment Software Solution

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“fully functional - good condition!”
