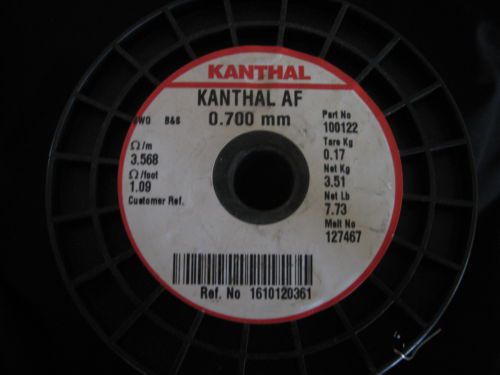

KANTHAL AF round 0.7MM Resistance heating wire 5METER!!! iron-chromium-alumini, US $7.00 – Picture 0

KANTHAL AF round 0.7MM Resistance heating wire 5METER!!! iron-chromium-alumini, US $7.00 – Picture 1

Kanthal Af Round 0.7mm Resistance Heating Wire 5meter!!! Iron-chromium-alumini

US $7.00

reshon le zion, default, Israel
Jun 9th

Open on mobile:
QR code

5METER!! OF KANTHAL AF round 0.7MM Resistance heating wire Kanthal AF is a ferritic iron-chromium-aluminium alloy 3.568 OHM / METER 1.09 OHM / FOOT Kanthal AF (Resistance heating wire and resistance wire) Datasheet updated 2013-02-22 13:20:27 (supersedes all previous editions) Kanthal AF is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1300°C (2370°F). The alloy is characterized by excellent oxidation resistance and very good form stability resulting in long element life. Kanthal AF is typically used in electrical heating elements in industrial furnaces and home appliances. Example of applications in the appliance industry are in open mica elements for toasters, hair dryers, in meander shaped elements for fan heaters and as open coil elements on fibre insulating material in ceramic glass top heaters in ranges, in ceramic heaters for boiling plates, coils on molded ceramic fibre for cooking plates with ceramic hobs, in suspended coil elements for fan heaters, in suspended straight wire elements for radiators, convection heaters, in porcupine elements for hot air guns, radiators, tumble dryers. Chemical composition C % Si % Mn % Cr % Al % Fe % Nominal composition 5.3 Bal. Min - - - 20.5 - Max 0.08 0.7 0.4 23.5 - Mechanical properties Wire size Yield strength Tensile strength Elongation Hardness ? Rp0.2 Rm A mm MPa MPa % Hv 1.0 500 700 23 230 4.0 475 680 18 230 Mechanical properties at elevated temperature Temperature °C 900 1000 1100 1200 1300 MPa 37 20 12 6 4 Ultimate tensile strength - deformation rate 6.2 x 10-2 /min Creep strength - 1% elongation in 1000 h Temperature °C 1100 1200 MPa 1.7 0.3 Physical properties Density g/cm3 7.15 Electrical resistivity at 20°C ? mm2/m 1.39 Poisson's ratio 0.30 Young's modulus Temperature °C 20 100 200 400 600 800 1000 GPa 220 210 205 190 170 150 130 Temperature factor of resistivity Temperature°C 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 Ct 1.00 1.01 1.01 1.02 1.03 1.04 1.04 1.05 1.05 1.06 1.06 1.06 1.06 Coefficient of thermal expansion Temperature °C Thermal Expansion x 10-6/K 20 - 250 11 20 - 500 12 20 - 750 14 20 - 1000 15 Thermal conductivity Temperature °C 50 600 800 1000 1200 W m-1 K-1 11 20 22 26 27 Specific heat capacity Temperature °C 20 200 400 600 800 1000 1200 kJ kg-1 K-1 0.46 0.56 0.63 0.75 0.71 0.72 0.74 Melting point °C 1500 Max continuous operating temperature in air °C 1300 Magnetic properties The material is magnetic up to approximately 600°C (Curie point). Emissivity - fully oxidized material 0.70 Disclaimer: Recommendations are for guidance only, and the suitability of a material for a specific application can be confirmed only when we know the actual service conditions. Continuous development may necessitate changes in technical data without notice. This datasheet is only valid for Kanthal materials. Article functions

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	KANTHAL
MPN	0.7MM KANTHAL Resistance heating wire
Model	NIKROTHAL AF
