Kbic-240ds Variable Speed Dc Motor Controls For Shunt Wound, Pm And Ac/dc Motors

US $74.99

Ashland, Oregon, United States
Jan 29th

Open on mobile:
QR code

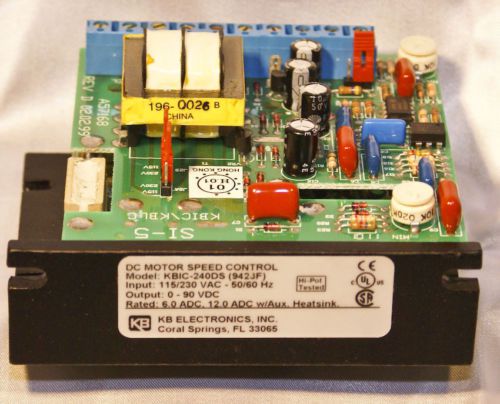

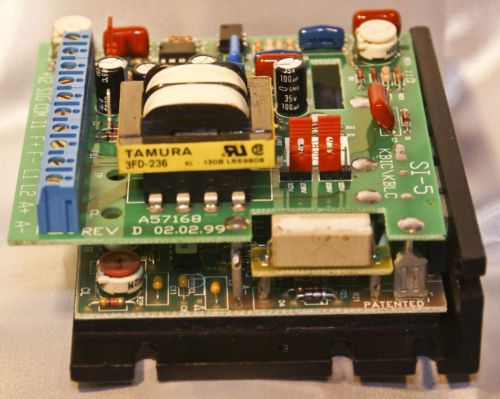

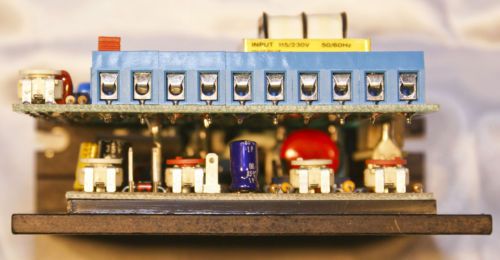

KBIC-240DS Variable Speed DC Motor Controls for Shunt Wound, PM and AC/DC Motors - used, but tested. Clean With SI-5 barrier terminal board signal isolator and .05 ohm horsepower resistor 0-90 VDC output 1/100 – 11?2 Hp @ 115 VAC – 50/60 Hzs 1/50 – 3 Hp @ 230 VAC – 50/60 Hzs STANDARD FEATURES • Plug-in Horsepower Resistor® allows a single model to be used on a wide range of motors • MOV Transient Protection • Trimpots: MIN, MAX, ACCEL, IR & CL • Voltage Following • Inhibit™ and Auto Inhibit® • Dual Voltage Capable on 230V “D” and “DS” Models Specifications Speed Range (Ratio) ...................................................... 50:1 Load Regulation (% Base Speed) (0 – Full Load, 50:1 Speed Range) ................................ 1* Line Voltage Regulation (% Base Speed) (At Full Load, ± 15% Line Variation) ............................ 1/2* Control Linearity (% Speed vs. Dial Rotation) ...................... 2 CL/Torque Range (% Full Load) ................................ 0 – 300 Accel Time Range (Secs.) .......................................... .5 – 4.0 Min. Speed Trimpot Range (% Full Speed) ........................................................ 0 – 30* Max. Speed Trimpot Range (% Full Speed) ............ 50 – 140* Max. Allow. Amb. Temp. (At Full Rating, °C/°F) .............................................. 45/113 s Maximum rating indicated is with Auxiliary Heatsink. For maximum rating without Auxiliary Heatsink see Electrical Rating Chart. The KBIC® full-wave DC motor speed controls are designed for applications demanding excellent performance, high reliability and low cost. Although compact in size (only 4.30" x 3.64" x 1.25"), these controls offer better than 2% regulation over a 50:1 speed range. The controls are fabricated with components which have proven reliability, including MOV transient protection, which is used to protect the power bridge. Integrated circuitry is used to provide a non-complicated design with superior load and line voltage regulation. Electronic current limiting (CL) protects the motor and control against overloads by limiting the maximum level of output current. Acceleration start (adjustable from .5 to 4 seconds) provides a smooth start each time the AC power is applied. A unique feature of the KBIC® controls is the Plug-in Horsepower Resistor®. It eliminates the need for recalibrating IR Comp and Current Limit when the control is used on various horsepower motors. Additional versatility is achieved by using the Auxiliary Heatsink (optional) which is used to double the horsepower rating of each model. The output of the control is a linear function of potentiometer rotation. The KBIC® can also be operated in a voltage following mode by supplying an isolated analog signal (0 – 9VDC) to the input terminals P2 (+) and F-. The controls are terminated as standard with Q-D terminals. A Barrier Terminal Accessory Kit is available which incorporates both line and armature fuses. The Inhibit™ circuit (terminals I1 and I2) is provided to electronically disconnect the armature output voltage. Another standard feature is Auto Inhibit®. This circuit prevents false starts and high surge currents when cycling the KBIC® control with the AC line. Model KBIC-240DS operates on both 115 and 230 VAC to provide 0 – 90 VDC output.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used, but tested. Clean”
