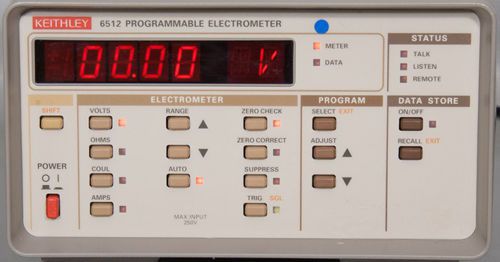

Keithley 6512 Five-Function Programmable Electrometer 4-1/2 Digit Meter, US $1,946.99 – Picture 0

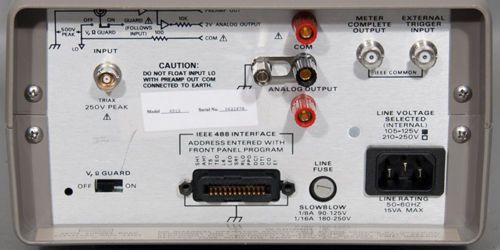

Keithley 6512 Five-Function Programmable Electrometer 4-1/2 Digit Meter, US $1,946.99 – Picture 1

Keithley 6512 Five-Function Programmable Electrometer 4-1/2 Digit Meter, US $1,946.99 – Picture 2

Keithley 6512 Five-function Programmable Electrometer 4-1/2 Digit Meter

US $1,946.99

Phoenix, Arizona, United States
Mar 10th

Open on mobile:
QR code

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Keithley 6512 Programmable Electrometer Meter Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Keithley and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit has been tested and is guaranteed to work for 30-days, parts and labor, excluding freight. We can have the unit calibrated if needed (at an additional cost). There is some discoloration on the case of this unit. The serial number tag is also a printed version that I think the previous user did. Not sure if they lost the original serial number tag or what. The Unit's Serial Number Tag Reads: Model Number: 6512 Serial Number: 0621678 Link to the Datasheet: Keithley 6512 Programmable Electrometer Datasheet Link to the Manual: Keithley 6512 Programmable Electrometer Manual Key Features: < 2fA to 20 mA measurement range Resistance measurements from 100 mΩ to 200GΩ 10 µV to 200 V voltage measurement range (with > 200 TΩ input impedance) Charge measurements from 10 fC to 20 nC 5 fA of input bias current 80 dB on 200 mV, 60 dB on 2 V and 20 V, 55 dB on 200 V range, at 50 Hz or 60 Hz ±0.1% CMRR: > 120 dB at DC, 50 Hz or 60 Hz. Input Impedance: > 200 T Ω in parallel with 20 pF (< 2 pF guarded). Notes: *: When properly zeroed. Amps Specifications: Range: Resolution: Accuracy (1 Yr.)* 18° - 28°C ±(%rdg + counts): Temperature Coefficient 0° - 18°C & 28°C - 50°C ±(%rdg + counts)/°C: 2 pA 100 aA 1.6 + 66 0.15 + 8 20 pA 1 fA 1.6 + 7 0.15 + 1 200 pA 10 fA 1.6 + 1 0.15 + 0.1 2 nA 100 fA 0.25 + 5 0.015 + 3 20 nA 1 pA 0.25 + 1 0.015 + 0.3 200 nA 10 pA 0.25 + 1 0.015 + 0.1 2 µa 100 pA 0.15 + 4 0.005 + 3 20 µA 1 nA 0.15 + 1 0.005 + 0.3 200 µA 10 nA 0.15 + 1 0.006 + 0.1 2 mA 100 nA 0.15 + 4 0.005 + 3 200 V 1 µA 0.15 + 1 0.005 + 0.3 Input Bias Current: < 5 fA (5 x 10-15 A) at 23°C Input Voltage Burden: < 1 mV except 3 mV on 20 mA range. Preamp Settling Time (to 10% of final value): 2.5 s on pA ranges, 15 ms on nA ranges, 5 ms on µA and mA ranges. NMRR: > 95 dB on pA, 60 dB on nA, µA, and mA ranges at 50 Hz or 60 Hz ±0.1%. Notes: *: When properly zeroed. Coloumbs Specifications: Range: Resolution: Accuracy (1 Yr.)* 18° - 28°C ±(%rdg + counts): Temperature Coefficient 0° - 18°C & 28°C - 50°C ±(%rdg + counts)/°C: 200 pC 10 fC 0.4 + 4 0.02 + 3 2 nC 100 fC 0.4 + 1 0.02 + 0.3 20 nC 1 pC 0.4 + 1 0.02 + 0.1 Input Bias Current: < 5 fA (5 x 10-15 A) at 23°C. Notes: *: When properly zeroed. Ohms Specifications: Range: Resolution: Accuracy (1 Yr.)* 18° - 28°C ±(%rdg + counts):( Temperature Coefficient 0° - 18°C & 28° - 50°C ±(%rdg + counts)/°C: Test Current ±1.5%: 2 kΩ 100 mΩ 0.20 + 4 0.01 + 3 100 µA 20 kΩ 1 Ω 0.15 + 1 0.01 + 0.3 100 µA 200 kΩ 10 Ω 0.25 + 1 0.01 + 0.3 10 µA 2 MΩ 100 Ω 0.25 + 1 0.02 + 0.3 1 µA 20 MΩ 1 kΩ 0.25 + 1 0.02 + 0.3 100 nA 200 MΩ 10 kΩ 0.30 + 1 0.02 + 0.3 10 nA 2 GΩ 100 kΩ 1.5 + 1 0.04 + 0.3 1 nA 20 GΩ 1 MΩ 1.5 + 1 0.04 + 0.1 1 nA 200 GΩ 10 MΩ 1.5 + 1 0.04 + 0.1 1 nA Maximum Open Circuit Voltage: 300 V DC. Preamp Settling Time (To 0.1% of final value with < 100 pF input capacitance): 2 kΩ through 20 MΩ: 15 ms; 200 MΩ 150 ms. (To 1% of final value with Input Guard on and < 1 pF of unguarded input capacitance): 2 GΩ: 10 ms; 20 GΩ: 100 ms; 200 GΩ: 1s. Notes: *: When properly zeroed. IEEE-488 Bus Implemenation Specifications: Multiline Commands: DCL, LLO, SDC, GET, GTL, UNT, UNL, SPE, SPD. Uniline Commands: IFC, REN, EOI, SRQ, ATN. Interface Functions: SH1, AH1, T5, TE0, L4, LE0, SR1, RL0, PP0, DC1, DT1, C0, E1. Programmable Parameters: Function, Range, Zero Check, Zero Correct, Zero Suppress, EOI, Trigger, Terminator, 100-Reading Storage and Retrieval, Calibration, Display Format, SRQ, Status, Output Format. Address Modes: TALK ONLY and ADDRESSABLE. Trigger to Reading Done: 350 ms typical. General Specifications: Display: 4-1/4 digit numeric LEDs with appropriate decimal point and polarity indication; signed two-digit alphanumeric expoenent. Overrange Indication: Display reads "OL". Ranging: Automatic or manual. Conversion Time: 330 ms. Data Store and Min/Max: 100-reading store capacity; records data at one of six selectable rates from every reading to 1 reading/hour, or by manual triggering. Also detects and stores maximum and minimum readings continuously while in Data Store mode. Programs: Provide front panel access to IEEE address, choice of engineering units or scientific notation, and digital calibration. Maximum Input: 250 V peak, DC to 60 Hz sine wave; 10 s per minute maximum on mA ranges. Maximum Common Mode Voltage (DC to 60 Hz sine wave): 500 V peak. Isolation (Input LO to chassis): Typically 1010 Ω in parallel with 500 pF. Input Connector: Three lug triaxial on rear panel. Output Connectors: 5-way binding posts on rear panel for preamp and analog outputs. Rear panel BNC for External Trigger and Meter Complete. 2V Analog Output: 2 V for full range input. Inverting in Volts and Ohms modes. Output impedance 10 kΩ. Preamp Output: Provides a guard output for Volts and Ohms measurements. Can be used as an inverting output or with external feedback in Amps and Coulombs modes. Ouput Impedance: 100 Ω. Gain Error at Preamp Output: Typically 5 ppm. Small Signal Bandwidth at Preamp Output: Typically -3 dB at 100 kHz. External Trigger: TTL compatible External Trigger and Electrometer Complete. V, Ω Guard Switch: OFF position: Inner shield of triax is Input LO, input capacitance is < or = to 20 pF. ON position: Inner shield of triax is Guard (follows input HI). Input capacitance is < or = to 2 pF. Use Analog Output COM for Input LO connection. Environment: Operating: 0° - 50°C; relative humidity 70% non-condensing, up to 35°C. Storage: -25° - +65°C. Warm-Up: 2 hours to rated accuracy. Power: 105 - 125 V or 210 - 250 V (internal switch selected), 90 - 110 V available, 50 - 60 Hz, 15 VA. Dimensions: 127 mm H x 216 mm W x 359 mm D (5" x 8.5" x 14.125") Weight: 3.2 kg (7 lbs.) For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Side View Picture 5 - Serial Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $25.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 03/10/15 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“This power supply is guaranteed to work for 30-days, parts and labor, excluding freight.”

Brand	Keithley
Model	6512
