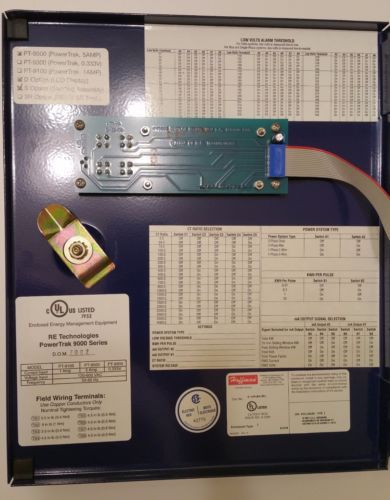

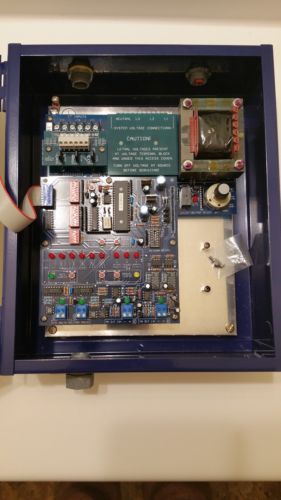

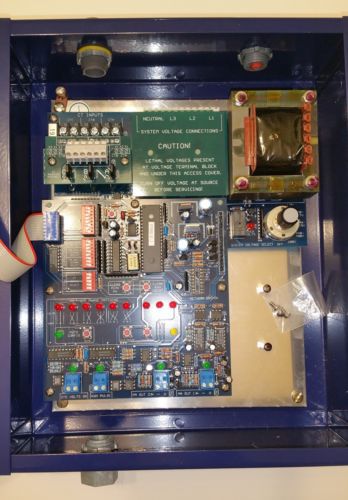

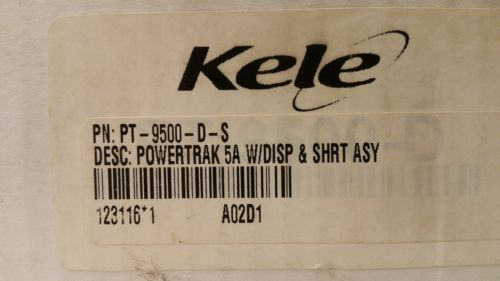

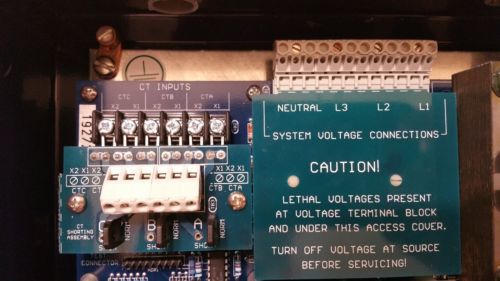

This meter was used for testing of a chiller at start-up to verify its internal metering output. Afterwards, it was re-boxed and put in storage. This unit is made in the USA. This is an excellent meter for sub-metering applications of various loads, transformers, back-up generators, lighting, or process circuits. This unit has the optional CT shorting / shunting block and two line display installed. This version of the PT-9000 Series is the 9500 with takes CTs with 5 amp secondaries to measure the primary current range on the CT. Background: The PT-9000 Series PowerTrak power monitoring interface from Kele monitors numerous power system parameters for local display and/or remote connection to a building automation system, energy management, BAS, or other data acquisition equipment. The PT-9000 Series can monitor any three phase or single phase 50/60 Hertz electrical system from user 120-600 volt settings without the need for potential transformers. Higher voltage systems such as 5 kV or 15 kV can also be monitored using potential transformers. This PT-9000 Series uses 5A current transformers. A truly unique feature of the PT-9000 Series is its ability to identify and electronically correct wiring problems such as reversed CT polarities or improper phasing of voltages with CT's. This unit has the current transformer shorting assembly and a digital LCD display options. It is furnished in a NEMA 1 hinged-cover enclosure with external mounting feet and conduit knockouts on all sides, the PT-9000 Series is simple to install. Setup of the PT-9000 Series is easily accomplished with a selector switch and DIP switches. This power monitoring interface is a popular choice for building automation systems, BAS, and industrial applications. A printed copy of the instructions to setup the unit will be sent out to the listing buyer. Remote (Outputs) & Local (Two line Display) Monitoring KWH Total KW Window KW Peak window KW Total KVA Total power factor (PF) True RMS voltage True RMS current Local (Display) Monitoring - Each Phase True RMS voltage True RMS current KW (Wye systems) KVA (Wye systems) Power factor (Wye systems) Features Auto-corrects for wiring errors Three-phase (Wye or Delta) or single-phase systems Voltage selector switch (120-600V) Accepts 5A or 0.333V CTs Low-voltage alarm contact Two 4-20 mA outputs Pulse output for kWh with selectable pulse rate Optional two-line LCD display Optional unique CT shorting assembly Easily installed enclosure with external mounting feet Optional LonWorks, Modbus, and Metasys communications Specifications Supply Voltage:120-600 VAC , 50/60 Hz System Type:Three-phase (Wye or Delta), or single-phase CT Input:0-5A CT Burden:0.75 VA maximum (5A input) Monitored Voltage: :Line to Line: 120 to 600 VAC :Line to Line with potential transformer: 601 to 32000 VAC Monitored Current:5 to 6000 Amps with current transformer PT Burden:4.8 VA maximum Internal Fusing: 0.5A, 600V (KLK-0.5) Provided Pulse Output:Pulsed contact closure for kWh solid-state relay, 50 VAC/VDC maximum, 100 mA Maximum Pulse Rate:Four selectable kWh per pulse rates, 50% duty cycle Maximum Pulse Rate:Five pulses per second Digital Output:Maintained contact closure for low-voltage alarm; 50 VAC/VDC, 100 mA maximum: Analog Output:Two externally powered 4-20 mA signals selectable for total kW, window kW, peak window kW, total power factor, total kVA, RMS current, or RMS voltage Maximum Load:725? each output @ 24 VDC Display:** Optional LCD, two lines, 16 characters/line Accuracy:0.75% of FS (kW, kVA, V, A) ± 0.03 PF (0.4 to 1.0 PF) Operating Temperature:32° to 122°F (0° to 50°C) Operating Humidity:5 to 95% (non-condensing) Dimensions:12"H x 10"W x 4"D (30.5 x 25.4 x 10.2 cm) Weight:12 lb (5.5 kg) Approvals:UL and cUL listed, File #E161500 Certified to LonMark Interoperability Guidelines version 3.1 PLEASE NOTE: Seller makes no claims on applied use or install of this product and it is the buyers responsibility to use personal protective equipment (PPE) and apply manufacturer safety restrictions on use on energy limited circuits and warnings on high voltage distribution panels or substations. This includes arc flash NFPA70e for example. See my other listing for a Voltage Disconnect Switch Block, CT Shorting Switches and fuse blocks to isolate meters that use current transformers with 5A secondaries. EMAIL if there are questions. Thanks for looking. Payment: We accept PayPal payment (and credit cards thru PayPal). If you do not have a PayPal account you can still use PayPal using a credit card or a bank account. Payment must be fulfilled within 7 days of auction's ending. We do not accept refunds/exchanges on “used” items unless it was stated as Brand New or if the item received is significantly different from the listing's description. Shipping: All items on this page if listed with free shipping will ship to the domestic USA only (Lower 48 States only). (Lower 48 States only). Sorry, we do not ship to P.O. Boxes, APO's, or FPO's. Free shipping on sales that have international option includes shipping only to the Ebay US Shipping center. Buyer covers all duties, fees, taxes, etc. Email us if faster / other shipping options are required. Terms of Sale: Please contact us with any questions before the auction is closed. Consider time of year, weather conditions and holidays when evaluating seller’s communication. Sellers may not check email on weekends and holidays. All steps will be taken to respond as soon as possible to buyer inquiries and questions. Feedback will be left once feedback is received. Please contact us before sending any item back. All returns will require an RMA number. If your item is defective or damaged in shipping you must contact us to get an RMA number. You may return damaged items to us within a period of 14 days after you have received your item. If another item is available, it will be shipped to buyer once tracking info on returned item is received. Item must be returned in original packaging and shipping containers. Original auction shipping costs are non-refundable. Buyer is responsible for return shipping of item. International Buyers are responsible for customs delays or fees of their respective countries. If item is not defective, then a 20% restocking fee will be charged.
