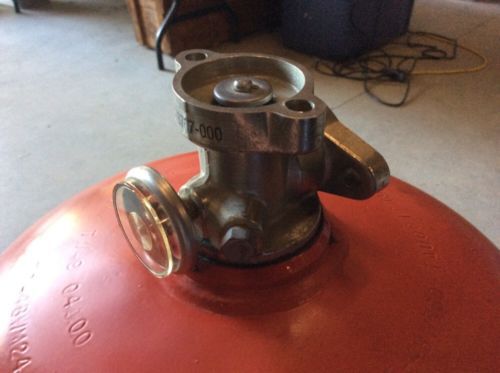

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 0

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 1

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 2

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 3

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 4

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 5

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 6

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 7

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 8

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 9

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 10

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical, US $500.00 – Picture 11

Kidde Kvs-68 Cylinder Capacity Of 2700 Cu.in. & Holds 68 Pounds Of Dry Chemical

US $500.00

Coarsegold, California, United States
Jan 30th

Open on mobile:
QR code

KIDDE KVS-68 Cylinder capacity of 2700 cu.in. & holds 68 pounds of dry chemical Offered For Your Consideration!..... (1) Kidde KVS-68 Cylinder (FULLY CHARGED) The Kidde KVS-68 cylinder has a capacity of 2700 cu. in. and holds 68 pounds of dry chemical. This KVS-68 Cylinder is used in the KVS Fire Suppression System, automotive and industrial applications, off highway, Mining, Construction & Forestry Equipment. You can research more on Kiddefiresystems.com......We are selling only the KVS-68 Cylinder! Cylinder Assy: KVS-68 Part Number: 83-131012-001 Type Of Powder: ABC Charge Or Fill Weight Of Powder: 68 lb. (30.8 kg) Width of Cylinder: 12.3 in. (312mm) Height of Cylinder: 30.2 in. (767mm) DESCRIPTION..... The Kidde® KVS dry chemical systems utilize either monoammonium phosphate dry chemical, a multi-purpose dry chemical rated for class A, B, and C type fires, or Purple K (KVS-25H only), a dry chemical rated for class B and C type fires. The chemicals are non-conductive and provide fast flame knockdown. The cylinders are welded, US DOT 4BW-360, mild-steel shell. The system employs stored pressure, at 360 PSIG, keeping the dry chemical agent free from contamination. The KVS dry chemical system is available with five cylinder sizes: KVS-21, with four nozzles; KVS-25H, with two to six nozzles; KVS-33 with six nozzles; KVS-45 with six or eight nozzles and KVS-68 with eight nozzles, providing an extended discharge time. This extended discharge time can be especially important in machinery where high pressure hydraulics can cause a reflash due to a source of ignition. TECHNICAL DATA..... Pressurized dry nitrogen to 360 PSIG nominal at 70°F(21.1°C) 4BW-360 welded steel shell Nickel plated, forged brass valve Temperature rating: -65°F to 200°F (-53.9°C to 93.3°C) Pressure operation or electric operation Use “flexible piping” for chemical discharge The KVS-21 cylinder has a capacity of 750 cu. in. and holds 21 pounds of dry chemical; the KVS-25H cylinder has a capacity of 750 cu. in., holds 25 pounds of dry chemical and can be mounted horizontally and vertically; the KVS-33 cylinder has a capacity of 1150 cu. in.. and holds 33 pounds of dry chemical; the KVS-45 cylinder has a capacity of 1550 cu. in. and holds 45 pounds of dry chemical; the KVS-68 cylinder has a capacity of 2700 cu. in. and holds 68 pounds of dry chemical. Areas where fires can occur include..... Engine Compartment Fuel Tanks and Lines Hydraulic Reservoirs Lines and Accumulators Heaters Transmissions Battery Compartment Electrical Distribution and Raceways ***** "FAST SHIPPING!" ***** Standard shipping... In the USA- will be "Fed-Ex Freight", (You Must Message Me For A Shipping Quote!) including professional packaging & insurance anywhere in the Continental US. Shipping to a P. O. Box, Alaska, Hawaii, Puerto Rico will ship USPS parcel post and additional charges will apply. If shipping internationally package will ship USPS priority mail or First Class, additional charges will apply. We accept all major Credit/Debit Cards,and prefer payments through Paypal. We pride ourselves on selling only first quality new merchandise, unless stated otherwise. All items we put up for auction are in stock in our own warehouse in California for immediate shipment. We will ship your order within 48 hours after payment is recieved. Email your tracking number so you know when to expect your delivery, and take extra care in packaging your items for a safe delivery. Excellent service is our speciality! We are always glad to combine auctions whenever possible to save on shipping! All items are 100% satisfaction guaranteed!! Check our feedbacks, 100% Positive!! Thanks for looking!! "coolhotrodstuff" International Buyers – Please Note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges. We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws. Check out my other items! Sign up for my email newsletters by adding my eBay Store to your Favorites

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Kidde
Model	KVS-68
