Kingfisher Pc-1 Rtu Plc Processor Module With Integrated Power Supply

AU $490.00

Brompton, SA, Australia
Jan 29th

Open on mobile:
QR code

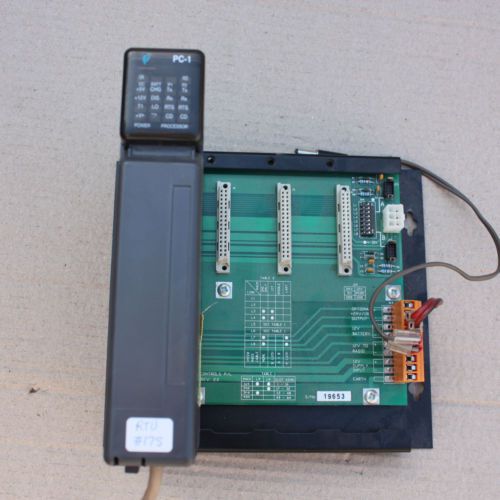

Kingfisher PC-1 RTU PLC Processor Module with Integrated Power Supply. Please note one unit is missing a 'front door'. Please note we also have 2 x BA-40s, an AI-4 and an AI-1 listed. Back plane is not included. For more information on this system please download the Kingfisher PDF here. Features: The PC-1 combines the functions of a power supply and a processor module. The PC-1 can only be installed in the first slot of a 4-slot backplane (BA-4) and operates from a nominal +12VDC supply (typically 13.8VDC). The module has one fixed RS232C port and one option port. Product specifications: Processor Processor Type Intel 80C188 Word Size 16 Bit internal data bus 8 Bit external data bus Clock Speed 16MHz BIOS Y FLASH RAM 128K Total. 28K for firmware drivers. Static CMOS RAM 256K Real Time Clock Y Watch Dog Timer Y Status Indication Y Battery Life - module unpowered 7 Years (RAM) Communication Ports 2 Port 1 (RS232) Serial, 300 to 115200 Baud Port 2 (Optional) Serial, Radio, 2-Wire Line or 4-Wire Line 300 to 115200 Baud (depending on port type) Modem Port 2 CCITT V23 (Optional) 1200 Baud Communications Master / Outstation Configuration Software Toolbox Diagnostics Software Y Basic Configuration Automatic on power-up Complex Configuration Toolbox RTU Address Range 1 - 249 Communications Protocol Kingfisher, Modbus, + many more Analog Block Processing Y PID Block Processing Y Logic Processing Ladder CPUs per RTU 1 Internal Power Consumption 120mA from +5VDC Auxiliary 24V Converter 10 Watts, 400mA @ 24VDC I/O Bus Data Rate 250 KBit/s CM Bus Data Rate 83 KBit/s Cyclic Redundancy Port 1 and 2 Power Supply Input Supply to PC-1 11.5-15VDC @ 4A Max (50W) Typically 13.8VDC if backup battery connected Outputs From PC-1 +5VDC @ 1A (5W) to Bus* +12VDC @ 4A Max to Bus* +12VDC @ 2A Max to Vr* +24VDC @ 400mA (10W) to Optional Auxiliary Output (3KV Isolation)# Backup Battery * 12V, 7AH typical. 26AH max Deep Discharge Protection RTU Shutdown at 10.6V RTU Startup at 11.8V Supply Fuse 8A (Maximum Current into the PC-1) Battery Fuse 8A (Maximum Current into or out of battery) Combined Vr and 24VDC Fuse 3A Polyfuse Monitoring Item Accuracy Battery Current ± 10% PC-1 Supply Voltage ± 5% PC-1 Supply Current ± 10% PC-1 Temperature ± 5% Battery low N/A Battery Charging N/A Battery Discharging N/A Aux. 24V present N/A AC present (determined from Battery Discharging signal) N/A * Note: power output is dependent on power supply to the PC-1. Most PC-1s are powered using the 35W PSU-3 power supply. # The +24V converter is optional and must be ordered with the PC-1. Environmental Operating Temperature -20°C to 70°C / -4°F to 158°F Storage Temperature -40°C to 85°C / -40°F to 185°F Operating Humidity 5 to 98% RH non-condensing Please call Tim 0419 363 992 with any questions or email tim_marshman@blackboxproductions.com.au and check out my other listings I have tons more gear to list so If you are chasing something specific please get in touch. You are welcome to inspect the items by appointment at out Hindmarsh address in Adelaide
