Knf Micro Diaphragm Liquid Pump Pml3194-nf 11 Output = 2.5w ! ! !

US $24.45

Qiryat Yam, Israel
Mar 12th

Open on mobile:
QR code

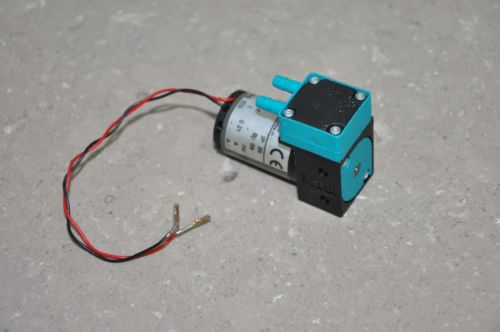

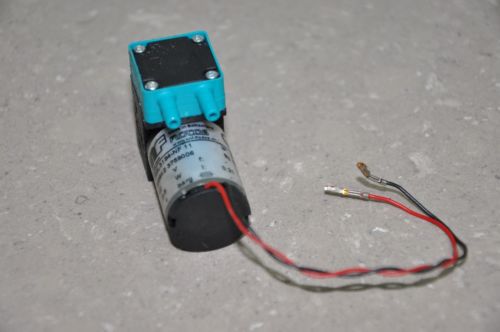

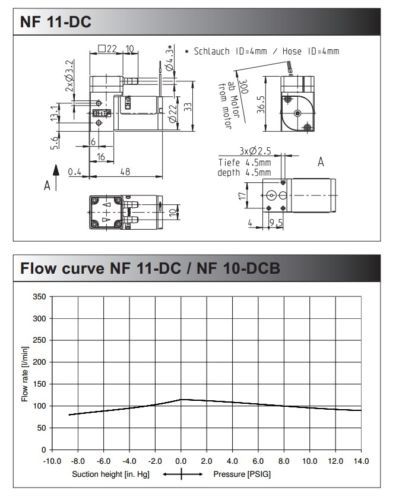

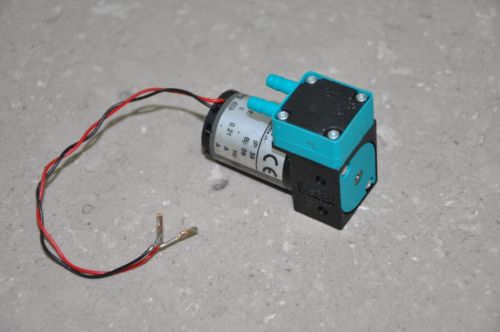

KNF Micro DIAPHRAGM Liquid Pump PML3194-NF 11 KNF - Made in Switzerland Micro DIAPHRAGM Liquid Pump Model: PML3194-NF 11 Can deliver up to 0.1 l/min Operate against pressures of up to 10 mWg. Voltage: 12V Output: 2.5W For specifications: http://www.knf-flodos.ch/?eID=downloadDialog&file=fileadmin/user_upload/PDF/CORE_EN/Data_sheets/Liquid/DB_NF10_EN_069193_web.pdf This item is for sale in perfect working condition. Feel free to contact me via e-mail for questions. KNF micro diaphragm liquid pumps are based on the principle of the oscillating displacement pump which is remarkably simple in design. The circular power from the motor is converted into vertical movement by an eccentric. This motion is then transferred to a diaphragm by means of a connecting rod which in conjunction with an inlet and outlet valve creates a pumping action. NF 10/11 type liquid pumps can be mounted in any position and can deliver up to 0.1 l/min depending on the model and will operate against pressures of up to 14.5 PSIG. The KNF modular system contains a wide standard range of materials, motors, voltages and frequencies to enable the selection of an optimal solution for your application. Areas of use: The versatility of KNF pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas: Analysers • Medical / pharmaceutical • Environmental / water treatment • Food / toxicology Laboratory • Filtration • Chromatography Cleaning industry • Cuvette cleaning • Sterilisers • Industrial washing machines Printing • Ink jet printing • Photographic / film development Other applications for diaphragm liquid pumps include: fuel cells, hydrogen generators, CD coating, dental technology, textiles and many more. Features: Small and powerful Self-priming and excellent for pressure Extreme chemical resistance Dry running, durable and maintenance free The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions. Payment: We accept Paypal only. Payment due within 3 days. Shipping: We will ship within 48 hrs of receipt of payment, usually the next day. Shipping can take up to month, usually it take about 21 days. World wide free shipping!

Condition:	Manufacturer refurbished: An item that has been professionally restored to working order by a manufacturer or manufacturer-approved vendor. This means the product has been inspected, cleaned, and repaired to meet manufacturer specifications and is in excellent condition. This item may or may not be in the original packaging. See the seller’s listing for full details. ...	Brand	KNF
Power Source	Electric
Model	PML3194-NF 11
Country/Region of Manufacture	Germany
Application	Industrial
