Labsphere 20-inch Laser Power Infragold® Cooled Integrating Sphere Lpm-200-igc

US $15,865.00

Temecula, California, United States
Jan 30th

Open on mobile:
QR code

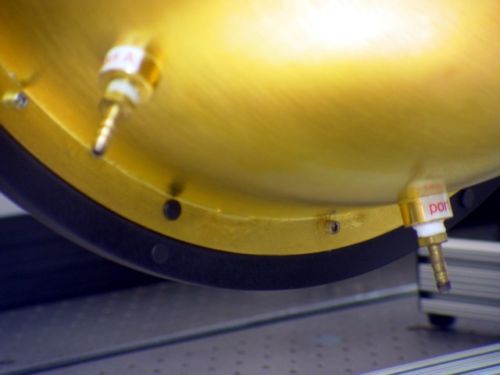

All domestic (USA) and international customers welcome to bid (i.e. Canada, Europe, Australia, New Zealand, Taiwan, Japan, Korea and China) Excellent/Very Good Condition! Here's an opportunity to acquire a very rare (i.e. these are specially ordered) Labsphere 20-inch Infragold® Laser Power Measurement Integrating Sphere. This sphere is ideal for output measurements from CO2, Nd:YAG, and other infrared lasers with power density less than 2 kW/cm?. The maximum coolant pressure is 10 psi. Pressure limitation and the coolant outlet temperature should be considered when selecting a coolant base. It is mounted sturdily on aluminum extrusion frame. Some specifications follow: Liquid-cooled design: 20-inch diameter 700 nm - 20 ?m wavelength range (NIR-MIR) Maximum power density of 2 kw/cm? (CW for 1 second exposure at 10.6 ?m) Two detector ports (i.e. use the installed photodetector on one port and a spectrometer on the other) Six (6) 0.25 inch NPT fittings for cooling system interface Includes Labsphere Silicon detector SDA-050-U-RTA (190-1100 nm range, see pictures) Water or a refrigerated coolant (i.e. ethylene glycol) Note: unit has minor cosmetic blemishes commensurate with light deployment - please refer to pics For more details and specifications on the Labsphere LPM-200-IGC Infragold® Integrating Sphere, please use the following link: Labsphere LPM-200-IGC For more details and specifications on the Labsphere SDA-050-U-RTA Silicon detector, please use the following link: Labsphere SDA-050 Si Detector Shipping will be complimentary/free ONLY within continental USA. International Customers: Please inquire about shipping costs before purchase. International shipping charges will vary according to destination and requested service level. Customers are responsible for any customs related fees/taxes. Payment: We accept PayPal, major credit cards (VI, MC and AMEX), both domestic/international wire transfers and PO's (i.e. purchase orders.) NOTE: PO's are accepted ONLY from major accredited American Universities, major US-based corporations (i.e. Fortune 1000,) US Government Research Laboratories (i.e. US Naval Research Labs, JPL) and Agencies (i.e. NASA, DOE.) Please contact us in advance if your institution falls into one of the categories outlined and need documentation, formal quote, company info (etc.) to process PO. PayPal Bill Me Later Note: California customers will be assessed sales tax unless a resale certificate is provided - Sorry, no choice in the matter. Please allow us to invoice you the exact amount prior to sending payment. 7-Day Right of Return (ROR.) Shipping costs non-refundable. All test equipment must be deployed in combination with uninterruptible power supplies (UPS.) ROR does not cover neglect, modifications, damage or misuse by end-user. We ship within 1-2 business days of receiving payment confirmation. Thank you for your interest and consideration!

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Labsphere
MPN	LPM-200-IGC
Model	Laser Integrating Sphere
