Leader Lv5152da Hd Digital Waveform Monitor - Parts/repair

US $120.00

Pacoima, California, United States
Jun 9th

Open on mobile:
QR code

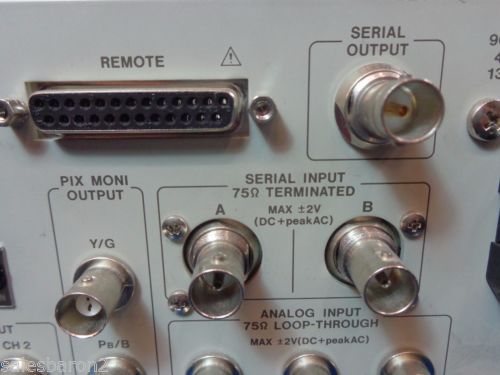

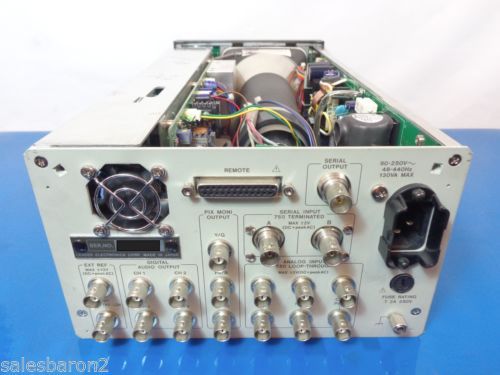

For detailed pictures, please scroll to the bottom of the page LEADER LV5152DA HD DIGITAL WAVEFORM MONITOR - parts/repair POWERS UP, MINIMALLY TESTED. DOES NOT PICK UP SIGNAL FROM SYNC GENERATOR. CABINET COVER NOT INCLUDED. BACKLIGHT WORKING. MANUFACTURES PDF REGARDING SPECS CAN BE FOUND HERE. • Two Serial Digital Input Systems And One Output System Serial digital signal input systems conform to SMPTE 292M, and BTA S-004B standards; active SDI output system to resend the selected SDI input. • Analog Signal Input System (Y, Pb, Pr or GBR) The analog input system enables the monitoring and then the comparison of the analog to digital signals in waveform, vector and picture modes. Full bandwidth Y, Pb, Pr may be transcoded and output as GBR. • Digital Data Dump (LV 5152DA only) Since parallel digital video data can be displayed in hexadecimal format, the trigger on error is convenient to troubleshoot with. • Equivalent Cable Length Measurement Indicates the serial digital signal level applied to the input connector as the coaxial cable length instead of the actual level. • Digital Audio Output Conforms To SMPTE 276M Digital audio signals are separated from the serial digital signal and output as four AES/EBU pairs. • Digital Input Error Monitoring Error logger and contents display functions for HD-SDI are provided. • Gamut Error Monitoring Monitors incorrect level of signals converted from Y, Pb, Pr into GBR format. • Vectorscope (SMPTE 240M, 274M) Displays color difference signals in vector format. The HD-SDI signal is decoded to analog GBR, converted into color difference signals with a matrix and displayed in vector format. • Picture Monitor Output SDI signals go through a D/A converter to a component analog signal, which is then output to the picture monitor. Y, Pb, Pr or G, B, R formats can be selected to match monitor input requirements. Component analog signals can be monitored and output as Y, Pb, Pr or transcoded to GBR. • Conversion Matrix, Y, Pb, Pr Into GBR (SMPTE 240M, 274M) Selectable waveform format of Y, Pb, Pr to GBR simplifies signal level monitoring. Additionally, GBR parade order is selectable as RGB. • Full-line Selector Mode Enables the selection and display of video lines from field 1 or 2 or both fields. Since up to 15 lines can be displayed, the waveform is refreshed and displayed with sufficient intensity. • Measurements Using Cursors Level, time and frequency measurements are accomplished with 0.5% accuracy. • Lissajous Display For Stereo Audio Signal Analog stereo audio signals can be displayed in standard X-Y lissajous format. • Preset Memory Function Stores/recalls up to 10 panel settings to reduce setup time by presetting frequently used measurement conditions. • Timing Display The timing display mode can monitor time and amplitude differences between channels in analog and digital modes. THIS WAS RECENTLY REMOVED FROM A PROFESSIONAL FACILITY. ALL ITEMS ARE SOLD AS IS YOU WILL ONLY RECEIVE WHAT IS IN PHOTOS. DOES NOT COME WITH ANY ADDITIONAL HOOK UPS, CABLES, REMOTE OR MANUALS PLEASE SCROLL THROUGH ALL PHOTOS PLEASE SEE MY SITE FOR OTHER EQUIPMENT CURRENTLY AVAILABLE NOTE: SELLER CHARGES 9.0% SALES TAX FOR CALIFORNIA RESIDENTS LOCAL PICK UP WELCOME. ITEM IS LOCATED IN LOS ANGELES Shipping and Handling in the U.S. ONLY FREE (does not include, Hawaii, Alaska or Puerto Rico) ALL OTHER AND INTERNATIONAL BUYERS MUST INQUIRE FOR A SHIPPING QUOTE JAY531(12L) We accept paypal and all major credit cards. Please contact us for direct credit card payment. Note: There will be an 9.0% sales tax to buyers in California Packages are usually shipped within 5 days of payment receipt (excluding Saturday/Sunday) All orders are shipped via FedEx and USPS International buyers, please be aware that you may incur a brokerage and/or custom fee upon delivery. Winning bidder is responsible for all shipping charges. We reserve the right to chose carrier based on shipping method selected at the time of payment. Combined shipping is done at the sellers discretion. If you purchase more than one item from us, they may arrive in separate packages. We list and photograph every item we sell so that you may feel confident when bidding. We only accept returns under certain circumstances within 14 days of delivery. Shipping costs are non-refundable. Monday - Friday: 9am - 6pm PST Saturday: 9am-2pm PST Address: 4587 Brazil St. Los Angeles, CA. 90039 Telephone: 818-434-6862

Condition	For parts or not working : An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details.
Seller Notes	“UNABLE TO PICK UP SIGNAL FROM SYNCH GENERATOR. CABINET COVER NOT INCLUDED”
