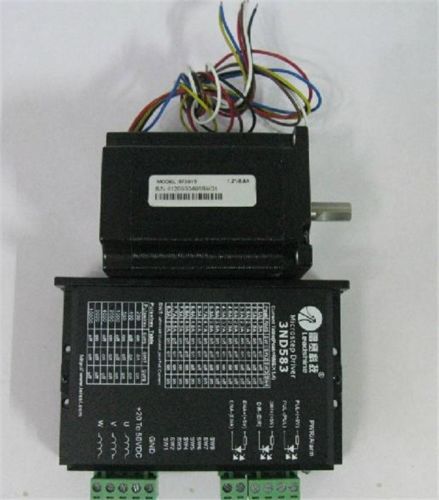

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S15 1.3N.m 1.2 New, US $185.00 – Picture 0

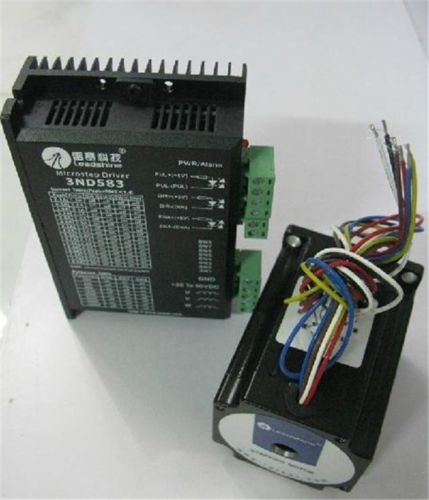

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S15 1.3N.m 1.2 New, US $185.00 – Picture 1

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S15 1.3N.m 1.2 New, US $185.00 – Picture 2

Leadshine 3-phase Stepper Set (drive + Motor) 3nd583 + 573s15 1.3n.m 1.2 New

US $185.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S15 1.3N.m 1.2 New 3ND583 Introductions: The 3ND583 is a high resolution 3-phase microstepping driver based on precision current control technology. It’s suitable for driving 3-phase hybrid stepping motors from NEMA size 17 to 34. By using the advanced pure-sinusoidal current control technology, both the noise and vibration of the stepping motor have been greatly reduced, which makes the stepping motors offer servo-like performances. Compared to the 3MD560, it’s lighter and smaller, and compared to most of the microstepping drivers in the market, both driver heating and motor heating have been reduced by 15-30%. Features: *High performance, low noise and lost cost *Low driver heating and low motor heating *Supply voltage up to 50 VDC *Output current up to 8.3A (RMS 5.9A) *Input signal TTL compatible *Automatic idle-current reduction *Suitable for 3-phase stepping motors, including 3 lead and 6 lead motors *Optically isolated differential input signals, pulse frequency up to 300 KHz *8 selectable resolutions up to 10000 steps/rev *DIP switch current setting with 16 different values *PUL/DIR & CW/CCW modes optional *Over-voltage, short-voltage, over-current and short-circuit protection *Small size for easy mounting Specifications: Parameters 3ND583 Min Typical Max Unit Output current 2.1(1.5A RMS) - 8.3 (5.9 RMS) A Supply voltage 20 36 50 VDC Logic signal current 7 10 16 mA Pulse input frequency 0 - 300 kHz Isolation resistance 500 - - Mohm Applications: Suitable for a wide range of 3-phase stepping motors from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices, and etc. It’s extremely suitable for the applications desired with low noise, low vibration, high speed and high precision. Other hot items of this Leadshine stepper drives for above applications: ND1182 Leadshine 2-phase Classic Analog Stepper Drive ND1182 AC70-150V 0.7-8.2A New ND2282 Leadshine 2-phase Classic Analog Stepper Drive ND2282 AC80-220V 0.45-8.2A New 3ND583 Leadshine 3-phase Classic Analog Stepper Drive 3ND583 DC18-50V 2.1-8.3A New 3ND883 Leadshine 3-phase Classic Analog Stepper Drive 3ND883 DC18-80V 2.1-8.3A New 573S15 Introductions: The 573S15 three-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 6 motor leads, the motor can be connected in delta connection Features: *3-phase hybrid step motor *High torque design *Standard NEMA 23 dimensions *Delta wiring *Optimized for microstepping Specifications: General Step Angle 1.2° Step Angle Accuracy +5%(full step, no load) Temperature Rise 80°CMax Ambient Temperature -10°C -- +50°C Insulation Resistance 100M?min.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.06 Max.(450g-load) Shaft Axial Play 0.08 max.(450g-load) Model No. Unit 573S05 573S09 573S15 Step Angle (°) 1.2 1.2 1.2 Holding Torque N*m 0.45 0.6 1.3 Current /phase A 5.2 3.5 5.8 Inductance /phase mH 1.4 1.7 1.35 Resistance /phase Ohm 1.3 1.3 0.7 # of leads - 6 6 6 Rotor Innertia g*cm2 110 200 400 Detent Torque N*cm 2.1 4.0 6.8 Motor Weight Kg 0.45 0.6 1.0 Motor Length L mm 42 50 76 Matching drives: Model Match drives 573S05 3DM683/3DM883 573S09 3DM683/3DM883 573S15 3DM683/3DM883 Applications: Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments. Other hot items of this Leadshine 3-phase stepper motors for above applications: 573S05 Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S05 Step Angle 1.2 Degrees 5.2A 0.45N.M New 573S09 Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S09 Step Angle 1.2 Degrees 3.5A 0.6N.M New 573S15 Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S15 Step Angle 1.2 Degrees 5.8A 1.3N.M New 863S22 Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S22 Step Angle 1.2 Degrees 5.0A 2.0N.M New 863S42 Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New 863S68H Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S68H Step Angle 1.2 Degrees 3.5A 6.78N.M New Other stepper sets available in FASTTOBUY: 3DM583 + 573S09 Leadshine 3-phase Stepper Set (Drive + Motor) 3DM583 + 573S09 0.9N.m New 3DM583 + 573S15 Leadshine 3-phase Stepper Set (Drive + Motor) 3DM583 + 573S15 1.5N.m New 3DM583 + 863S22 Leadshine 3-phase Stepper Set (Drive + Motor) 3DM583 + 863S22 2.2N.m New 3DM583 + 863S42 Leadshine 3-phase Stepper Set (Drive + Motor) 3DM583 + 863S42 4.2N.m New Contact information: Fast To Buy Ltd 1207, International E-Commerce Industrial Park of FuTian, Shangmeilin, Futian district, Shenzhen, 518049, CN Phone: +0086 13724354369 or +0086 755 82546545 email: ebay@fasttobuy.com skype: ebayfasttobuy our working time: EST 9:00AM ~ 6:00 PM Shipment: Once payment received. Item will be shipped out within 1-3 working days by DHL, Fedex, UPS, EMS ASAP. Usually it takes 3-7 working days to most of the country. You will be notified the traking number once shipped out. Kindly please note the Tax fee and Customs clearance fee are not included in the item’s listing price. Kindly please feel free to contact us before shipping if there’s any thing we can do for you. Warranty: Fast To Buy Ltd make sure the item is brand new with original package and offer 1 year warranty for the quality. Return policy: We accept return or refund within 14 days for the quality reason, not man-made reason. Kindly please contact us before returning the package. Payment will be refunded to you within 24hrs once the package received by us. You understanding appreciate. Kindly note: Pls check and confirm the part NO. and your application before place order, any further assistance please feel free to let us know. Company picture:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Leadshine
MPN	3ND583 + 573S15
Model	3ND583 + 573S15
