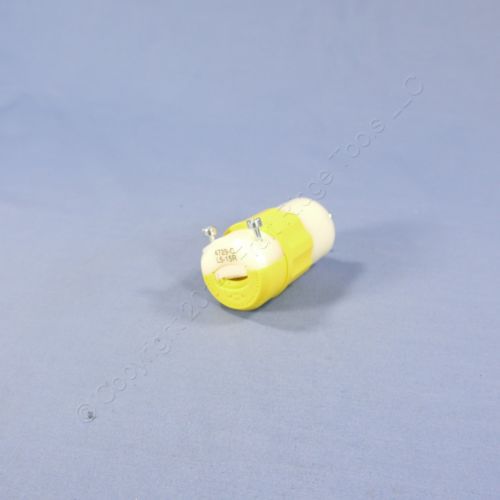

Leviton Yellow Twist Locking Connector Plug NEMA L5-15R 15A 125V 4729-CY Boxed, US $5.99 – Picture 1

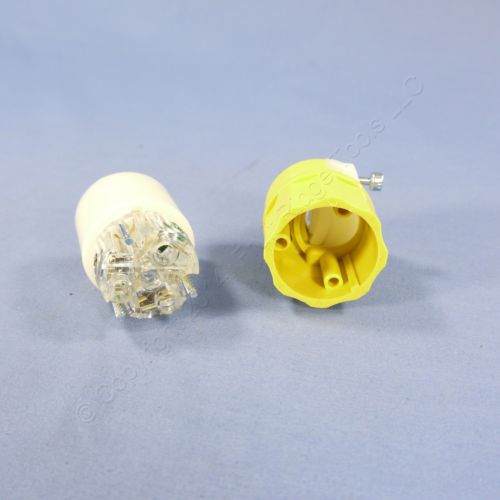

Leviton Yellow Twist Locking Connector Plug NEMA L5-15R 15A 125V 4729-CY Boxed, US $5.99 – Picture 2

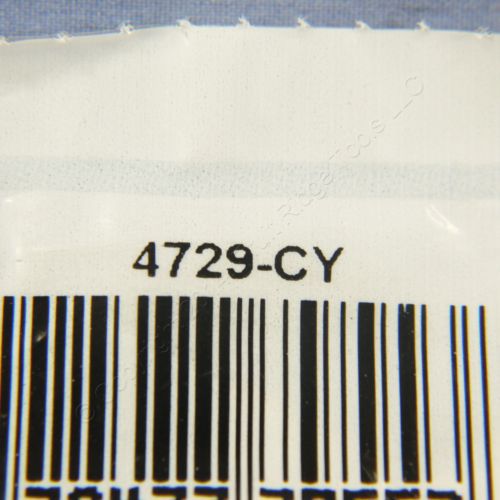

Leviton Yellow Twist Locking Connector Plug NEMA L5-15R 15A 125V 4729-CY Boxed, US $5.99 – Picture 3

Leviton Yellow Twist Locking Connector Plug Nema L5-15r 15a 125v 4729-cy Boxed

US $5.99

Jamestown, New York, United States
Jan 29th

Open on mobile:
QR code

Fruit Ridge Tools, LLC Our eBay Store Contact Us Add to Favorite Sellers Leviton Yellow Twist Locking Connector Plug NEMA L5-15R 15A 125V 4729-CY Boxed Product Details Quantity in Lot: 1 Brand: Leviton Part Number: 4729-CY Color: Yellow Type: Locking Connector Phase (if applicable) : Single Phase Poles: 2 Wires: 3 NEMA Number: L1-15R Amperage: 15A Voltage: 125V Grade: Industrial Specification Grade Ground: Grounding Leviton 4729-CY yellow twist locking connector. Industrial Specification Grade, NEMA L5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Cord grip range: .245"-.700". Terminals accomodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged with instructions. Features include:One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life Cleat on contacts cuts oxidation when plug blade enter contact surfaceInternal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position Transparent wiring chambers provide a means of visual inspection of conductors and terminals Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands Color-coded terminal screws Molded-in strip gage provides correct measurement for proper strip length of conductorCaptive terminal screws eliminate nuisance dropping and searching for missing screws Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs. Super tough nylon body resists damage from severe impact, abrasion, and chemical attack Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to bodyErgonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pullingNEMA configuration, agency certifications, and device rating are molded on front of device to assist with identificationExternal cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws External clamp accepts wire mesh grips. Strain relief insert is easily removed without removing cord clamp to accommodate larger cords. Cable gage identifies maximum cord size allowed with strain relief insert This is New Old Stock and is returnable for any reason. (SKU # L4729-CY-EA; ) Need Wallplates? 15A Wallplates (1.406" Diameter) 20A & 30A Wallplates (1.60" Diameter) Additional locking devices and information: Matching L1-15R Plugs, Connectors & Receptacles See All Straight Blade Plugs, Receptacles and Connectors See All Locking Plugs, Receptacles and Connectors

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Leviton
MPN	4729-CY
