Leybold A550 Vzk Sputtering: Turbovac Tmp450, Nt450, Rfbias, Match Network More

US $33,888.00

Union City, California, United States
Jun 9th

Open on mobile:
QR code

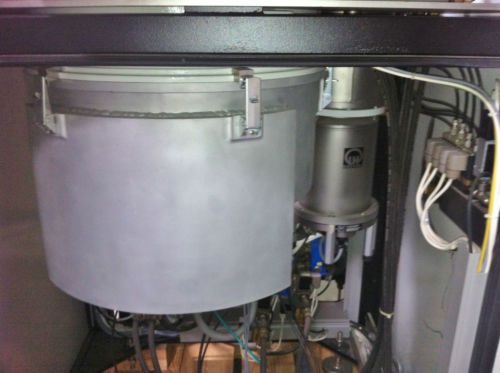

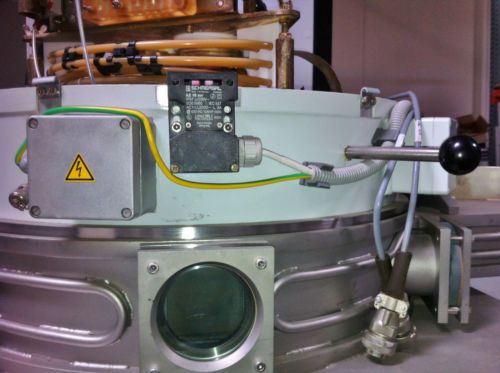

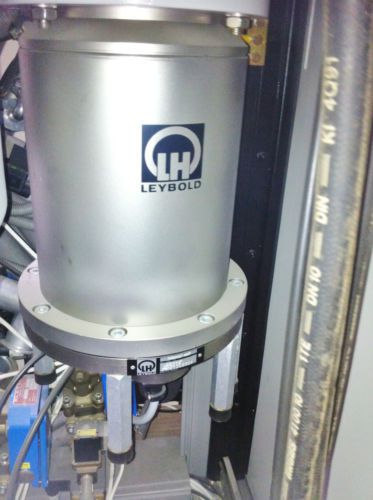

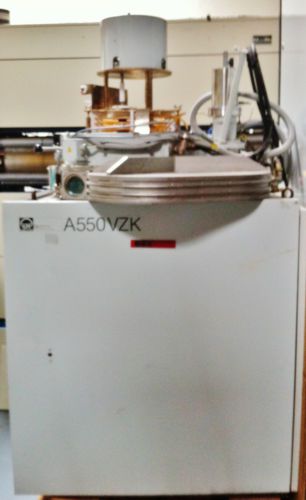

LEYBOLD A550 VZK Sputtering System You are bidding on a Leybold A550 VZK Sputtering System, Complete with the Leybold Components Listed. No components or parts have been removed from the system since it was professionally decommissioned and removed from the fab in Operational Condition. The Control Rack and Power Supply and components therein are not included in the price and if inadvertently listed are not included. If Controls for Components are located in the Control Rack or Power Supplies for Components are in Power Supply, they are not included and must be purchased separately. Additional photographs and details are available, please contact us. 1. LEYBOLD A550 VZK SPUTTERING SYSTEM, INCLUDED: 2. Leybold Sputtering chamber: Approximately 24” in diameter 3. Leybold RF-Etching, RF Sputtering 4. Leybold Matching network 5. Leybold RF-bias, Penningvac, Medel PMhsz 6. Leybold Turbo pump model Turbovac TMP 450 List price Rebuilt: $4500.00 Pump specifications: Pumping speed: 450 litres per sec. (for N2) High vacuum flange: DN160ISO-K OR ASA Foreline flange: DN40KF Cooling: water cooled 7. Leybold Heraeus TurboTronik Turbo Molecular Pump Controller Model NT 450, List Price Rebuilt: $2450.00 LEYBOLD A 550 VZK, From the Manufacturer: Characteristics - High sputtering rates - Low substrate temperature during sputtering - Excellent layer thickness uniformity resulting from variable cathode to substrate spacing and symmetrical arrangement of the sputtering chamber - High throughput - Processes: RF-etching, RF-sputtering, RF-bias-sputtering - Sputtering chamber is easily accessible - Microprocessor controlled - Turbo pumped System Design The 590-mm diameter vacuum chamber incorporates: - Turbo pumped - Baffles for presputtering and sputter-etching , - The water-cooled substrate carrier, and - The substrate mounting plate In addition, the A550 VZK includes RF power supplies (IS 7.5 for sputtering, and TIS 1.2 for sputter-etching and bias sputtering), automatically adapted impedance matching networks, and an equipment rack holding the central control computer. System design and Operation The relatively low chamber volume allows extremely short pump down times. The separation between substrates and target is optimized for the attainment of stable, homogeneous, film distributions. In addition, a gas supply of Tailored dimensions provides for homogeneous gas distribution in the Processing chamber, further enhancing film uniformity. Potential water Vapor contamination is reduced by the heated chamber walls. Finally, a Generously configured shutter prevents cross-contamination of cathode and substrates. Operation and Cleaning The system offers a high degree of accessibility for manual loading and unloading. This high degree of accessibility also simplifies routine cleaning of the coating chamber. Careful cleaning of the coating chamber is essential for maintenance of the highest coating quality standards. In designing the A550 VZK, close attention was paid to providing the user with the opportunity for simplified and thorough maintenance: - easily removable baffles that prevent sputtering deposits on chamber walls; A significant plus of all of LEYBOLDS’ systems are their expertly engineered compliments of vacuum equipment, the quality and dependability of your final products and your processing are closely reliant upon the maintenance of prescribed vacuum conditions. The A 550 VZK is supplied equipped with a turbomolecular pump and a two-stage rotary vane pump. A final vacuum of 5 x 10-7mbar can be reached using a chamber walls. Vacuum systems from LEYBOLD are reliable in operation and are integrated into the overall control system, and thus able to perform their duties fully automatically. System is being offered As Is, Complete. Rebuild is available, please contact us with specifications for a quotation. Check Out: *Purchase: Making purchases is easy and simple. To place an order for procurement, please click the “Buy It Now” button. Follow to the next page for payment instructions. *Payment: Click the “Pay Now” button at the top of the E-Bay page to proceed with the checkout and payment process. Payment must be made within 5 days of purchase. *Accepted Forms: We accept PayPal, or you may pay on your credit card via PayPal. When paying via PayPal, payments must include your shipping address and should be submitted via the E-bay payment process. Sales Tax: *For California customers, sales tax is added and depends upon your location. If you are tax exempt, please provide a copy of your Tax Exempt Certificate prior to check out. Please do not send payment before receiving a revised invoice. Shipping: *Shipping rates are the responsibility of the customer and are not refundable. Rates include handling, packaging materials, label scanning and tracking information. Shipping rates are based upon the weight and dimensions of the package and your location. If we have packaging materials for smaller items, we include packaging and handling at no charge. If they are unavailable, we charge our cost. For larger capital equipment, please contact us for crating costs and exact weight prior to shipment as the crate will add weight to the tool set. *Insurance: Should you prefer insurance on your item, please inform us PRIOR to check out so this may be added to the shipping cost. Insurance is not added unless specifically requested by the buyer. *Processing Time: Once payment has cleared, we make every effort to ship your item within 1-2 business days. Larger capital equipment which requires crating may require a longer time to build the crate. *Freight Shipment: Freight Shipment is the responsibility of the buyer, although we will do everything possible to assist you with this process. There may be rigging, crating or palletizing charges depending upon the item purchased. Please contact us for additional information on the item you purchase. *Local Pick Up: Local pick up is available on most items. Please contact us to arrange pick up for your items. *Shipping Account: If you would prefer to use your shipping account, please let us contact us. We are happy to do so. *International Shipping: International shipping is determined on a case by case basis. We reserve the right to refuse shipment to certain locations/customers if all our requirements are not met. All documentation and customs reports are to be prepared by the purchasing party and provided prior to pick up. 48 Hour notice is a minimum required notice prior to International pick up. Insurance is required on all International orders. Customer Service: *Inquiries: Please contact us with any questions you have on any listed item. While we are closed over the weekend, we will make every effort to answer your questions as soon as possible. Most questions are answered in less than 24 hours. Warranty: *Products are sold As Is, Where Is: All items are sold As Is, Where Is, without warranty expressed or implied unless specifically stated in the posting. This does not mean that the unit does not work, only that we have not tested it or check it out. This also may mean that we are not knowledgeable in a certain item. *All Sales are Final: All sales are final. Please ask any pertinent questions regarding the condition before you purchase your item. We reserve the right to refuse a return based upon not understanding the description or not wanting the item. *Rigging, crating, packaging, shipping and handling are not refunded on return items. UPS, FEDX, USPS do not return these fees to us so we cannot return them to our customers. *DOA Terms: An item said to be in working condition but received Dead on Arrival (DOA) can be returned for exchange or refund (when no exchange is available) within if we are notified within 7 days of receipt of product. Compensation will be provided upon return of item, physical examination, testing and serial number verification. If any one of these items are not met, we reserve the right to withhold funds for an indefinite time until all requirements are met. *Return Shipment: All items must be in the same condition as when they left our facility. For claims, it is required that original packaging materials be retained and returned with the defective product. If the item has been changed or tampered with in any way, from original condition, we reserve the right to refuse refund. Upon receipt of the unit we will fully test the item in question, visually inspect the condition and verify the serial numbers. If the state of the item is not as was described in the listing, we reserve the right to refuse refund. If it is evident the item was damaged due to improper installation or use, we reserve the right to refuse refund. All returned shipments should be properly insured. We will not honor claims for any items which were uninsured and damaged during return shipment. *Auction Pictures: Some auction pictures may be representational only and not the exact items we will ship (particularly if we have a quantity of more than one listed). A $150.00 handling fee is added to large items such as this.

“Outstanding Condition”

Brand	Leybold
MPN	A 550 VZK Sputtering System
Model	A 550 VZK Sputtering System
Country/Region of Manufacture	Germany
