Lithonia Led Edge Green Lit Emergency Exit Panel/sign Lrp 1 Gc 120/277 El N Pnl

US $39.00

Santa Cruz, California, United States
Mar 10th

Open on mobile:
QR code

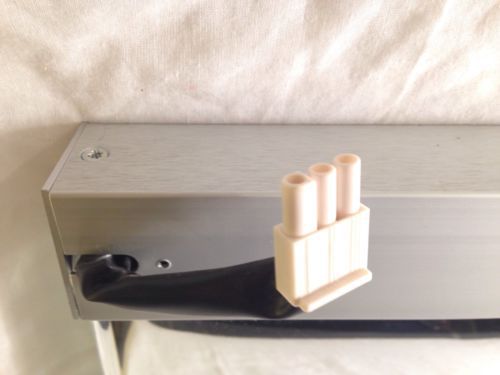

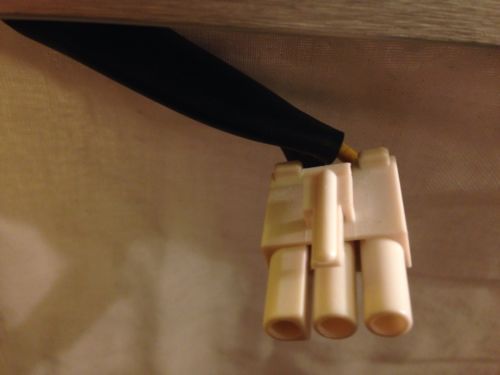

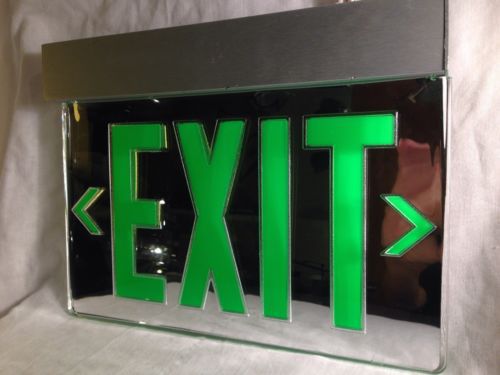

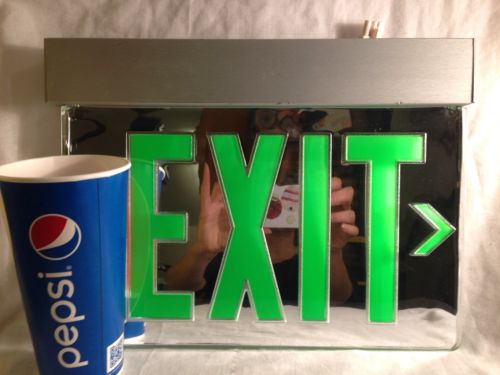

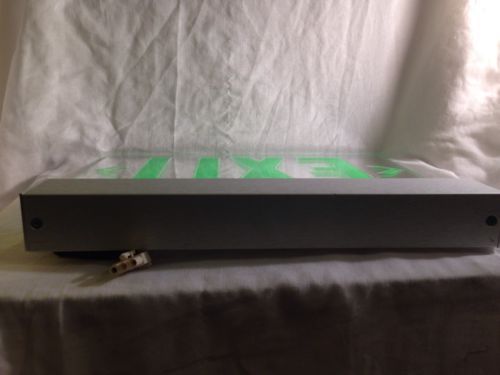

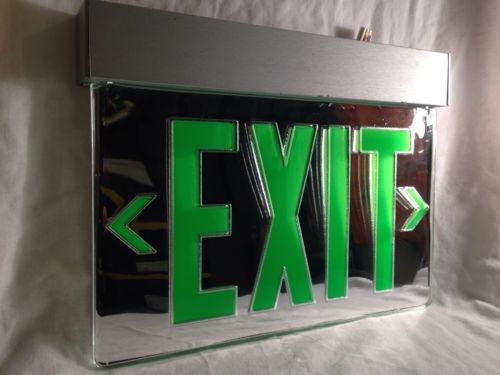

LITHONIA GREEN LED EDGE-LIT EXIT SIGN PANEL LRP-B-1-GC-120/277-EL-N-PNL This Exit light fixture is new and never used. It does not come with the box. I pulled off the plastic covering on the face to take pictures. FEATURES & SPECIFICATIONS INTENDED USE — Suitable for architectural applications where aesthetics and superior performance are required. CONSTRUCTION — High-polish, injection-molded virgin acrylic panel, ultrasonically welded to eliminate visible hardware. Graduated depth of molded letters provides uniform light distribution on graphics. Standard housing finish is brushed aluminum. Precision-molded, textured letters – 6” high with 3/4” stroke, with 100 ft viewing distance rating, based upon UL924 standard. Chevron indicator direction must be specified. Recessed rough-in section constructed of 20-gauge, die-formed galvanized steel. Extruded aluminum housing trim mounts flush onto wall or ceiling. ELECTRICAL — Sealed, maintenance-free nickel cadmium battery delivers 90 minutes capacity to lamp. Constant-current series charger, 24-hour recharge after 90-minute discharge. Polarized battery connector simplifies installation and maintenance; prevents charger damage due to improper connection. OPTICS — LEDs mounted on printed circuit board. The typical life of the exit LED lamp is 10 years. Low energy consumption – only 2.3W for 120V single-face red sign; 1.7W for 120V single-face green sign. INSTALLATION — (Rough-in kit required. Order ELA-G-LRIS-120/277-ELN or Lithonia #252828) Recessed mount – rough-in section for back, ceiling or end mounting. Fits into minimum wall or ceiling opening 13-5/8” L x 4-1/2” W x 3-1/8” D. Adjustable T-bar hangers adapt mounting tray for mounting in suspended ceilings or variable-size framed openings. Trim ring has 3/4” variable depth adjustment to ensure flush fit against surface of wall or ceiling. Plug-in wire connections and self-captive mounting screws for mounting panel/trim to rough-in section. LISTINGS — UL listed. Non-IC recessed mounting. Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, and State of Minnesota requirements for less than 20W energy consumption. NEMA Premium certified. c30

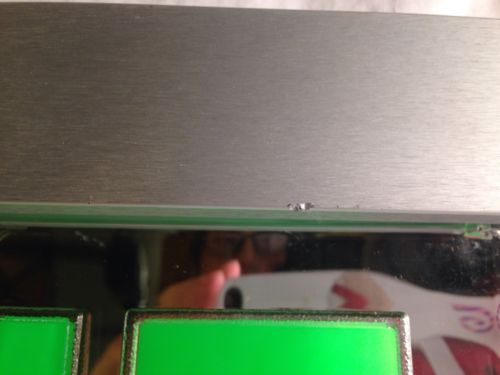

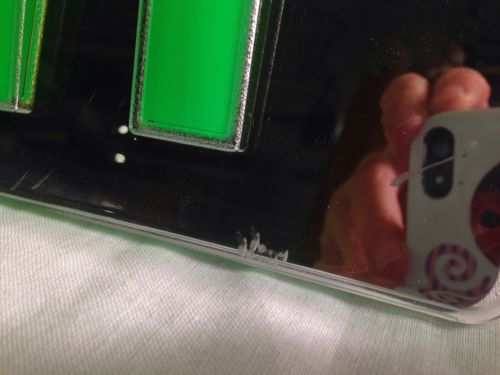

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“It is new without box.”
