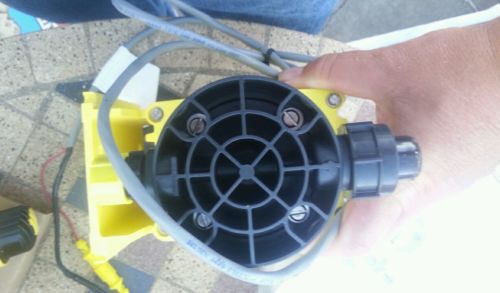

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 0

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 1

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 2

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 3

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 4

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 5

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 6

LMI Milton Roy Electronic Metering Pump 12v 12 volts DC Model # j54d-352si, US $350.00 – Picture 7

Lmi Milton Roy Electronic Metering Pump 12v 12 Volts Dc Model # J54d-352si

US $350.00

Corpus Christi, Texas, United States
Jun 9th

Open on mobile:
QR code

Never used, box opened to check contents. Box is a little worn, some dust on the pump. LMI Series J5 Metering Pump, 0.42 GPH @ 140 PSI, 12 Volt DC LMI Series J5 Metering Pump (12 VDC). 0.42 GPH @ 140 PSI, Liquid End 352SI, 12 Volt DC. Dual Manual Control Stroke frequency and stroke length are manually adjustable. See Specifications and Downloads tabs for detailed specifications and features. General Description LMI Series J5 (12 VDC) chemical metering pumps shall be positive displacement, Liquifram type pumps that are UL and CUL approved. Output volume shall be adjustable while pumps are in operation from zero to maximum capacity. Pump Controls Adjustment shall be by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are to be located opposite the liquid handling end. Speed (stroking frequency) may be externally controlled for automatic systems. Drive Assembly The pump drive shall be totally enclosed with no exposed moving parts. Electronics shall be housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Electrical power consumption shall not exceed 22 watts per hour under full speed and maximum pressure conditions. Pump weight shall not exceed 7.6 lbs (3.5 kg). Pressure Relief LMI 4-Function Valve is recommended to provide automatic pressure relief, anti-syphon protection, and priming aid. Materials of Construction See Specifications tab. Chemical metering pump housing shall be of chemically resistant glass fiber reinforced thermoplastic. All exposed fasteners shall be stainless steel. Valve seat and seal ring shall be renewable by replacing only the combination seat-seal ring or cartridge valve assembly. Check Valve, Tubing, Connections A total of 16 ft (4.8 m) of tubing shall be provided per pump complete with compressing connections (on models with tubing connections). A foot valve with integral one piece strainer shall be provided for the suction line (on non-high viscosity models with tubing connections), and an injection check/back pressure valve with 1/2" NPT male connection for the injection point (on models with tubing connections). Product Type: Metering Pump, Diaphragm, Solenoid Brand: LMI Max. Flow (GPH): 0.42 Max. Flow (GPD): 10.08 Max. Pressure (PSI): 140 Max. Viscosity (cps): 400 Max. Strokes per Minute: 100 Flow Control: Dual Manual Control Turn Down Ratio: 67:1 Head / Fittings: Molded PVDF / PVDF Valve Balls: .281 Ceramic Diaphragm: Fluorofilm Valve / Seat / O-ring: PVDF/ Polyprel Connections: Tubing PE .250" O.D. Power Supply: 12 Volt DC Includes: 4FV-Four Function Valve (anti-siphon, back pressure, priming/pressure release and pressure relief), Tubing, Foot Valve and Strainer, Ceramic Foot Valve Weight, 1/2" NPT Male Injection Check/Back Pressure Valve, and Instruction Manual

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	LMI Milton Roy
Power Source	12 volts dc
MPN	Model# j54d-352si
Type	Chemical injection
Application	Electronic metering pump
Country/Region of Manufacture	United States
