Lot 2 Nkk Pcb Key Lock Switches On-on-on .4va 28v Skk-14 Sk14eg13-ro Keyed Alike

US $11.99

Springfield, Tennessee, United States
Jan 29th

Open on mobile:
QR code

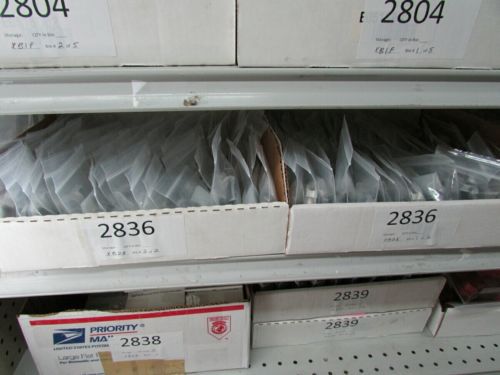

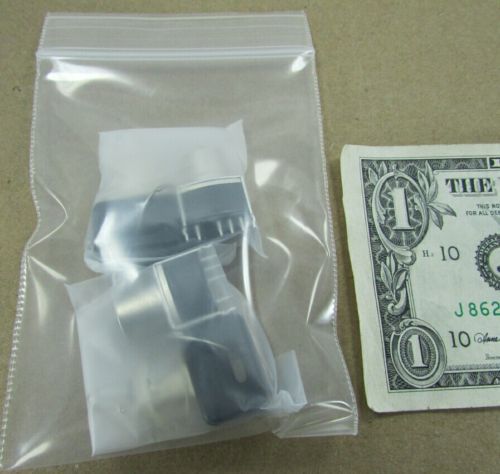

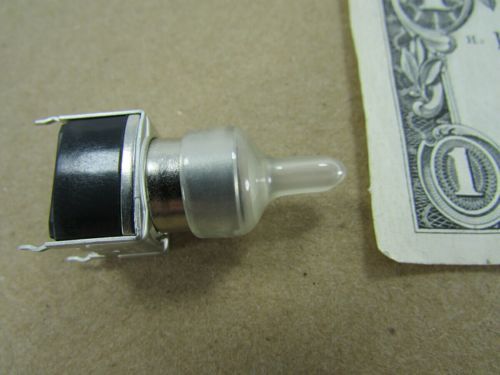

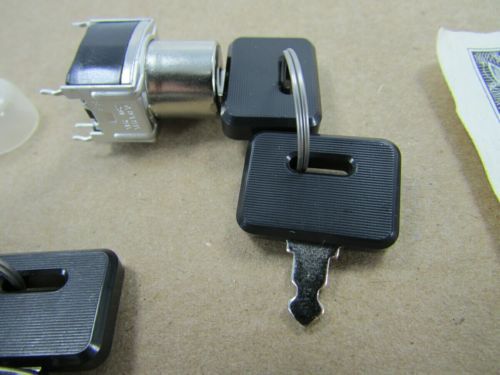

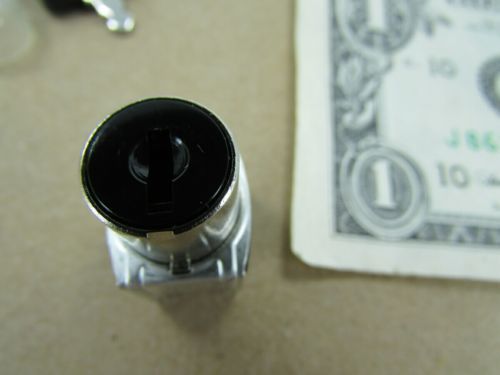

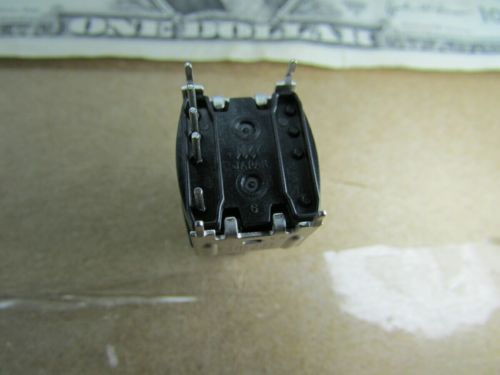

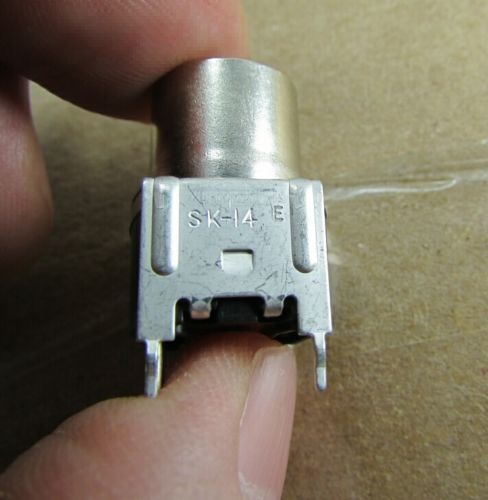

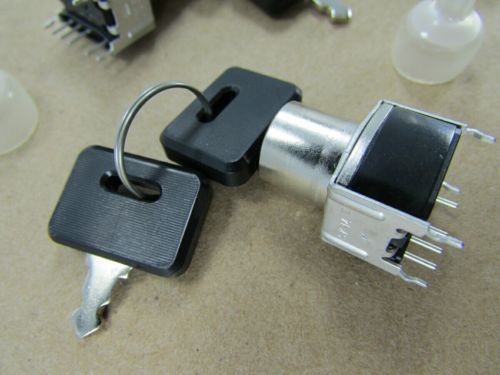

2836XB2E.08 New NKK Circuit Board Mounted Key Lock Switches, Keyed Alike, Part Number SK14EG13-RO, or SK14EG13-R0, or SK-14 or SK14. Each bid quantity is for a Lot of Two (2) Switches with Four (4) Keys and Two (2) PVC Cleaning Boots. You may bid / buy any number of lots, up to the total quantity available above. These were purchased at an industrial liquidation recently, and they were brand new in bulk factory boxes. We repackaged them in heavy Ziplok bags. They are quality little switches with smooth movement and light but easily perceived clicks between positions. No, you can't use them to control your air compressor, but they would be great for light amperage electronic applications. They have three key positions, and the key is prevented from removal in all positions except the Center position. These are Keyed Alike, which means that any of the keys will fit any of the locks. Contacts are SP3T (single pole, triple throw). The manufacturer's datasheet (medium PDF file) is located at:http://www.nkkswitches.com/pdf/SK_PCBmountMiniature.pdf According to the manufacturer: Distinctive Characteristics Sealed body construction plus disposable boot protect contacts and allow automated processing. Molded-in terminals seal out flux, solvents, and other contaminants. Short body size for space-saving, behind panel dimensions. Detent mechanism, with its spring-operated steel ball, gives crisp, positive action for accurate switch setting. Bifurcated, self-wiping contact mechanism provides unequalled logic-level reliability and smoother, positive detent actuation. Crimped bracket legs ensure secure PCB mounting and prevent dislodging during automated wave soldering. .100” x .100” (2.54mm x 2.54mm) terminal spacing conforms to standard PC board grid spacing. Electrical Capacity (Resistive Load) Logic Level: 0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V) See Supplement section to find explanation of operating range Other Ratings Contact Resistance: 80 milliohms maximum Insulation Resistance: 100 megohms minimum @ 500V DC Dielectric Strength: 500V AC minimum for 1 minute minimum Mechanical Life: 30,000 cycles minimum Electrical Life: 10,000 cycles minimum Nominal Operating Torque: .026Nm (.234 lb•in) for momentary action models .020Nm (.182 lb•in) for maintained action models Contact Timing: Break-before-make Angle of Throw: 90° for 2-position & 45° for 3-position Materials & Finishes Boot: Polyvinyl chloride Key: Brass alloy with bright nickel plating; brass alloy with bright nickel plating & ABS resin handle Tumbler Barrel: Polyacetal Bushing: Zinc alloy with nickel plating Bracket: Steel with tin plating Base: Glass fiber reinforced polyamide Movable Contactor: Beryllium copper with gold plating Stationary Contacts: Copper with gold plating Terminals: Brass with tin plating Environmental Data Operating Temperature Range: –25°C through +70°C (–13°F through +158°F) Humidity: 90 ~ 95% humidity for 240 hours @ 40°C (104°F) Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute; 3 right angled directions for 2 hours Shock: 50G (490m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	NKK
Key Pull	Center Position Only
Model	SK-14
Mounting	Printed Circuit Board
MPN	SK14EG13-RO

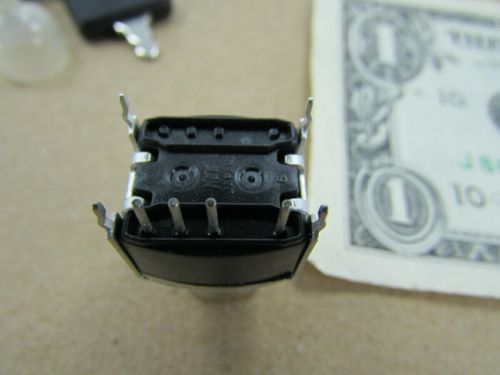

Connection	Through Hole Solder
Color	Black

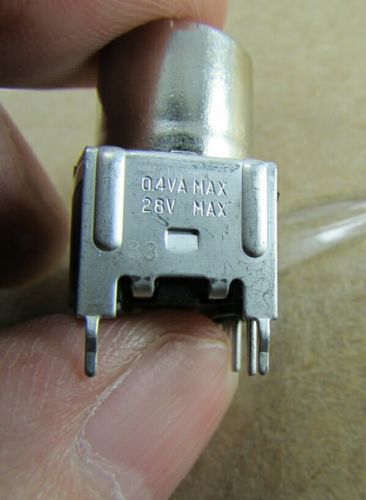

Max Voltage	28V AC or DC
Keying	Keyed Alike
Max Amps	0.4VA
Operation	ON-ON-ON
