Lot Of 1 Arduino Industrial Electronics Din Rail Wall Panel Mount Box Enclosure

US $20.00

  • Orange, California, United States
  • Jan 29th
Open on mobile:
QR code

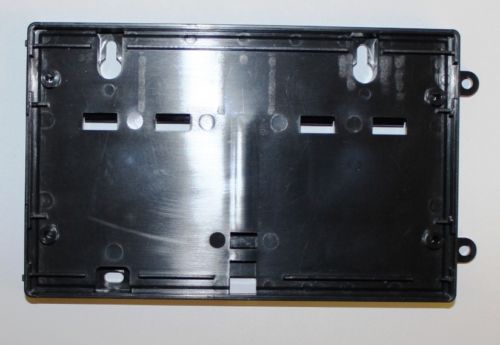

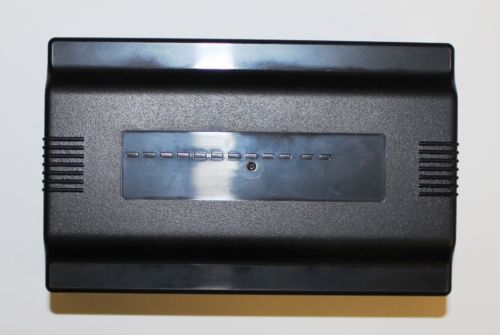

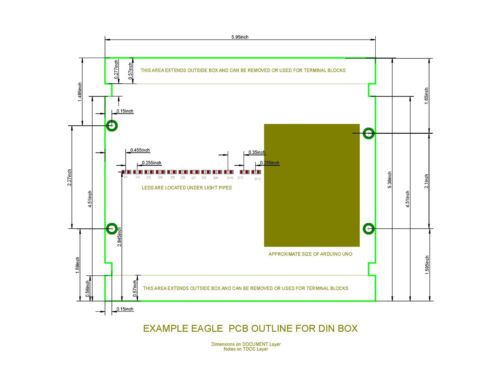

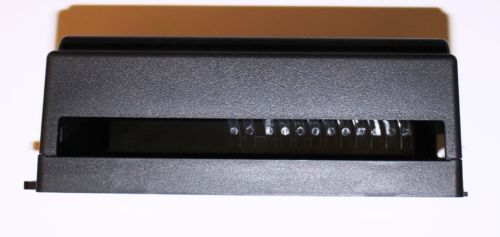

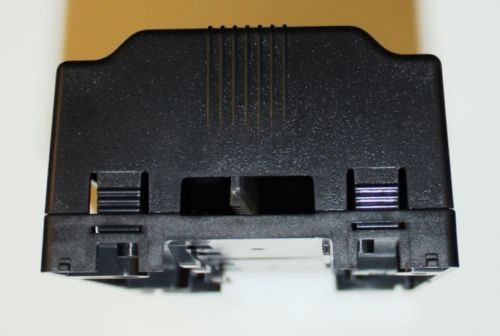

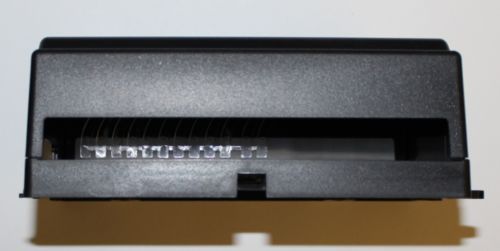

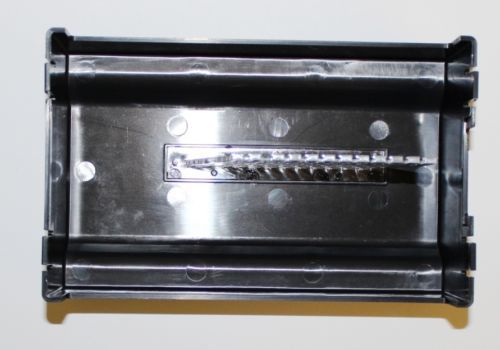

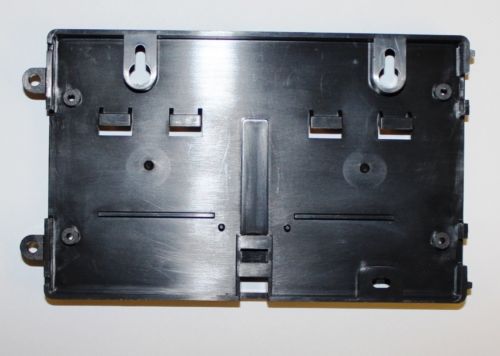

THIS LISTING IS FOR A LOT OF 1 ENCLOSURE The enclosure is a black two pieces design with 12 light pipes integrated into the top cover.  The light pipes allow use of standard surface mount LEDs directly mounted to PCB.  Since the light pipes are clear, they allow use of multi-color LEDs.  The LED output is conveniently channeled to the top cover.  A custom PCB of your design is secured directly to the base using up to 4 non-symmetrical screw bosses.   Base is 6.35" x 4.03".  Height is 2.45" overall.  It snaps directly onto a 35 mm DIN Rail.  It can also be wall mounted via two key-hole style cutouts on the base.  There are two additional screw eyelets if the unit needs to be secured to a panel or wall with the narrow side parallel to the floor allowing wire entries on left/right side instead of top/bottom. There are two large open slots at the front and the back measuring 5.75" wide by 0.6" high.  They allow a custom number of terminal blocks, DB-9, DB-25, USB or RJ-45 connectors as well as additional LEDs or switches to be mounted on the custom PCB and externally accessible.  This is done without drilling any holes or cutouts. The box can be used for many industrial or automation electronics projects including Arduino style projects.  Please see PCB diagram with relative size of Arduino UNO.  Sample Eagle PCB layout files can be provided with exact screw mount locations as well as locations for surface mount LEDS positioned under the light pipes. A DXF file can also  be provided for creating custom labels for the top of the enclosure. Please note, this listing DOES NOT include any printed circuit board or electronic components.
