Lot Of 10pcs Large Magnetic Reed Switch Glass Low Voltage Current 2.6x20 Mm

US $9.99

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code

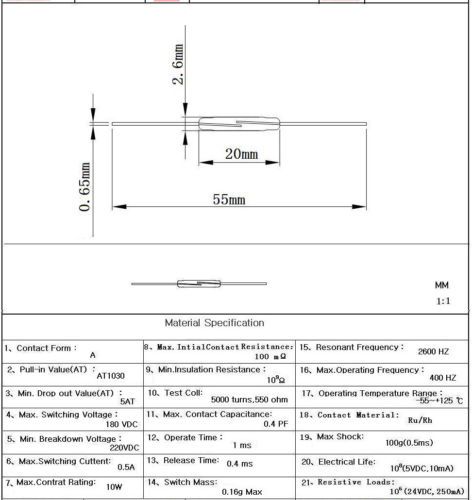

ELECTRICAL SPECIFICATIONS Contact form- 1A Contact material Ru Maximum switching power , W 10 Maximum switching voltage , V 180 Maximum switching current, A 5 Pull in , AT 10-40 Drop out, AT min. 4 Contact resistance, Ohm max. 15 Breakdown voltage, V dc min. 220 (AT<=20) 280 (AT>20) Insulation resistance, Ohm min. 1·109 Operate time ,ms max. 10 Release time, ms max. 3 Capacitance,  pF max. 4 Resonant frequency, Hz min. 2600 Operate temperature range,0C -60 ...+125 High humidity at T=350C, % max.- 98 Operation frequency, Hz max. 100 Test coil: Number of turns 5000 Resistance, Ohm 550 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Country/Region of Manufacture China
