Lot Of 2 Delta Electronics Cqs-4 C-quam Synthesizer / Generator

US $1216

Valencia, California, United States
Jan 29th

Open on mobile:
QR code

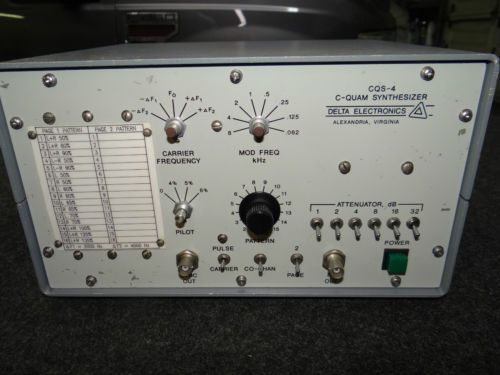

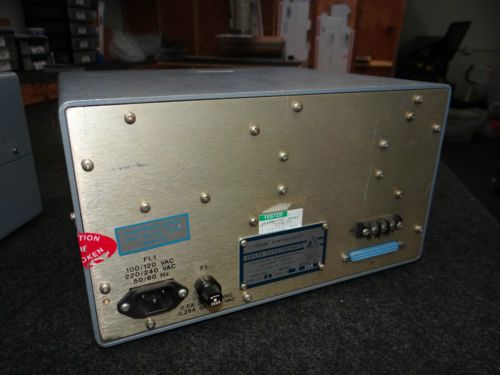

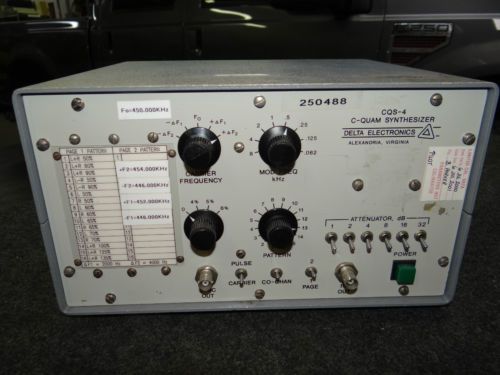

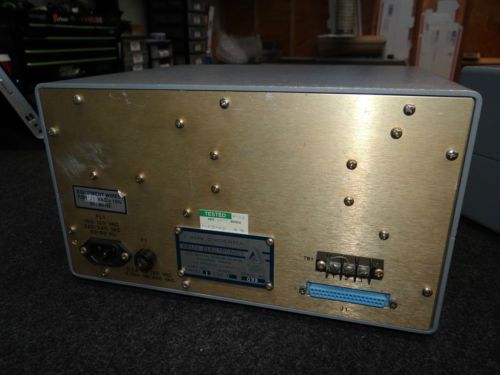

Just in from a local aerospace company sale comes this surplus Lot of 2 DELTA ELECTRONICS CQS-4 C-QUAM SYNTHESIZER , one is missing fuse and holder and 3 knobs on front, the other one was a customer return stating it has internal problems, sell both as a package deal, for parts or repair · WHAT IS IT? Delta Electronics, Inc. is a licensed manufacturer of C-QUAM Exciters ® and compatible Monitors for AM stereo transmission by AM broadcast stations. That Delta engineers found no primary reference generator of satisfactory accuracy was available for the development, calibration and testing of this equipment. The CQS series of synthesizers uses direct digital synthesis to produce the required precision test signals. The Model CQS-4 Incorporates a high output amplifier and 63 dB programmable attenuator to INCREASE over the capabilities discussed earlier versions. The CQS-4 and discussed earlier models are currently used in testing integrated circuits stereo decoder, Calibrating modulation monitors, production testing of C-QUAM receivers and as a primary reference for the manufacture of C-QUAM stereo exciters. Typical Performance Characteristics Pattern Accuracy : The synthesizer is Intended as a primary reference for testing C-QUAM circuitry and components. To our knowledge, there is no equipment capable of resolving the accuracy of the patterns. Particular attention to the design of the synthesizer circuitry has minimized known sources of error: Quantizing error, D / A settling time error, strobe phase jitter, etc.. The following data are reasonably Believed to Represent the pattern accuracy for modulation frequencies of 500, 1000, and 2000 Hz L + R High Order sidebands: -65 dB L, R THD: .2% or less THD L + R: .1 % or less L / R, R / L Separation: 50 dB L + R IPM: -50 dB Pattern Stability : As opposed to an analog circuitry, the digital synthesis approach used in the synthesizer has very high long term stability and Repeatability. There are no critical circuit adjustments to vary. Technical Specifications: Front Panel Components BNC Output Connector: RF output, 50 ohm source, 500 mVrms Max (carrier level) into 50 Ohms, adjustable in 1 dB steps. Output Attenuator: Adjustable in 1 dB steps from 0 dB to 63 dB attenuation. SYNC BNC Connector: TTL level sync. Negative transition synchronous with start of pattern. f0, +-f1 - f1, f2 +-, - f2 Select Switch: Selects carrier frequency: f0 = 450 kHz +5 Hz +-f1 = f0 + 250 Hz - f1 f0 = - 250 Hz Optional +-f2 = f0 + 2 kHz Optional - f2 = f0 - 2 kHz · DOES IT WORK? Yes, this item tested GOOD. It item comes with a power cord but needs to cast . · HOWS IT LOOK? Good - no major scuffs or blemishes (see photos). · CAN I RETURN IT? NO, no returns for this sale. Paypal due immediately // Local Pick-up available 8am-12noon weekdays from 91355 // CA sales tax required // Location // LARGEST CART

Condition	For parts or not working : An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details.
Seller Notes	“1 is missing the 3 knobs and fuse holder, other is returned item”
