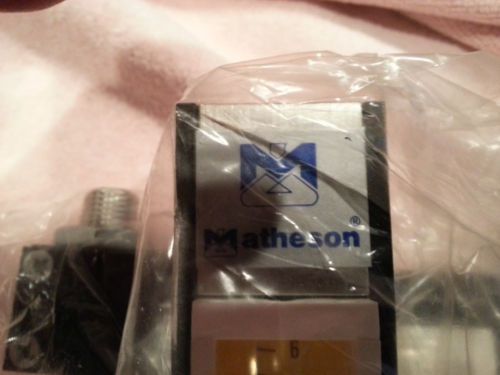

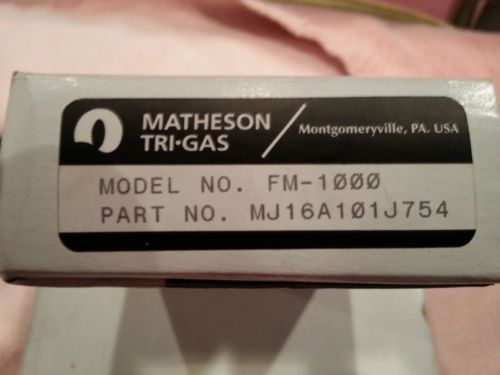

Lot Of (2).. Matheson Tri-gas Model Fm1000 - P/n Mj16a101j754 - Flow Meter - Nib

US $35.00

South Plainfield, New Jersey, United States
Jun 9th

Open on mobile:
QR code

NEW OLD STOCK FM-1000 Series Compact Flowmeter (direct read Air), Stainless Steel $318.15 The FM-1000 Series Flowmeters incorporate the innovative design of the FM-1050 in a more compact unit without reducing standards of accuracy. This is the rotameter of choice for those interested in conserving space. The same ±5% full scale accuracy is guaranteed for the 65mm scale length of these flowmeters. Unlike the FM-1050 series which uses reference scales, the FM-1000 Series flowmeters are direct reading for air, and are available in either English or Metric units. Choose between a black glass or a stainless steel float. These flow tubes are fluted to provide better float stability. The FM-1000 Series glass metering tubes are enclosed in the Tube-Cube®. Protection of the tube, magnified tube scale for easy reading and alignment during replacement are afforded with this unitized holder. Integral fluted float guides for optimum float performance are standard with all tubes unless otherwise specified. Valve Options • Utility (six-turn) valve for those who desire control as well as indication • High accuracy (fifteen-turn) valve, for very precise control and repeatability • No valve for those who just want indication Applications Typical applications include: • Flow measurement of purge gases • General laboratory or instrument flow monitoring • Flow measurement of calibration standards used in environmental monitoring Design Features • Rugged, compact design • Precision tapered, fluted metering tube • Tube Cube® unitized glass tube holding assembly • Reflective plastic background and 1.5 X magnification lens for excellent readability • Safety blow-out back panel • Full 10 to 1 (100% to 10% full scale) metering range • Low pressure drop for increased flow rates at low feed pressures • Easy installation and quick service access • Optional utility and high performance valves do not require special fittings • Corrosion resistant: 316 stainless steel with Viton seals • Custom scales and flow curves available Engineering drawings Materials of Construction • Wetted End Blocks, Fittings and Internal Parts: 316 stainless steel • Seal Materials: Viton • Side Plates: Painted aluminum • Metering Tube: Borosilicate glass enclosed in Tube-Cube® holder • Piping Connections: 316 stainless steel • Float Materials: Black glass and 316 stainless steel • Scale: Ceramic ink on glass tube, length 65mm Specifications • Pressure Rating: 250 psig maximum • Temperature Rating: 250°F maximum • Accuracy: ±5% of full scale flow rate • Repeatability: 0.25% of scale reading • Range: 10 to 1, i.e., 100% to 10% of full scale • Scale Readings: Direct reading air (special other scales available) • Shipping Weight: 1 lb

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Matheson Tri-Gas
MPN	MJ16A101J754
Model	FM1000
Country/Region of Manufacture	United States
