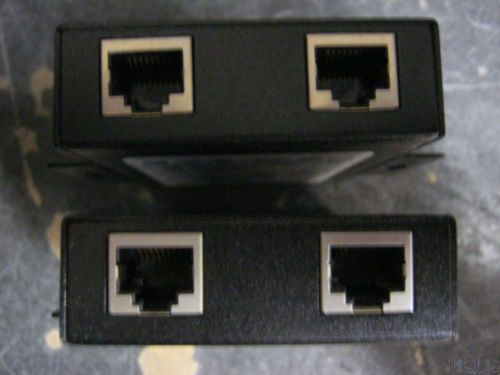

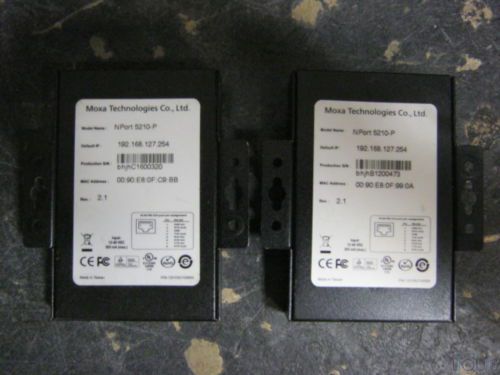

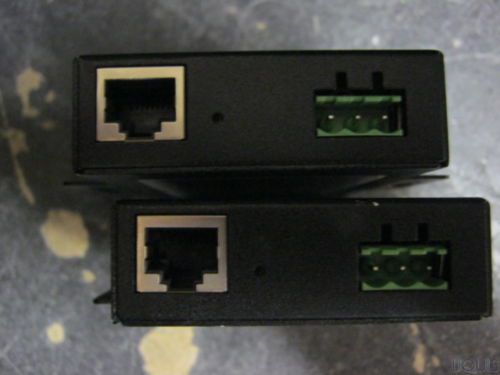

Lot of 2 Moxa Nport 5210-P, US $230 – Picture 0

Lot of 2 Moxa Nport 5210-P, US $230 – Picture 1

Lot of 2 Moxa Nport 5210-P, US $230 – Picture 2

Lot of 2 Moxa Nport 5210-P, US $230 – Picture 3

Lot Of 2 Moxa Nport 5210-p

US $230

Austin, Texas, United States
Apr 22nd

Open on mobile:
QR code

Manufacturer: Moxa Model: Nport 5210-PHardware Info Specifications: • Ethernet Interface Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45 Magnetic Isolation Protection 1.5 KV built-in • Serial Interface Number of Ports 2 Serial Standards NPort 5210: RS-232 NPort 5230: 1 RS-232 port, 1 RS-422/485 port NPort 5232/5232I: RS-422/485 Connector NPort 5210: RJ45 (8 pins) NPort 5230/5232/5232I: Terminal Block (5 contacts per port) Serial Line Protection 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5232I/5232I-T) RS-485 Data Direction Control ADDC® (automatic data direction control) • Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS (RS-232 only), DTR/DSR (NPort 5210 only), XON/XOFF Baudrate 110 bps to 230.4 Kbps • Serial Signals RS-232 NPort 5210: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND NPort 5230: TxD, RxD, RTS, CTS, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND • Software Network Protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP Configuration Options Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i Linux Real TTY Drivers Linux kernel 2.4.x, 2.6.x • Physical Characteristics Housing Metal, IP30 protection Weight NPort 5210: 340 g NPort 5230/5232: 360 g NPort 5232I: 380 g Dimensions NPort 5210/5230/5232: Without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) With ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in) NPort 5232I: Without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in) With ears: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in) • Environmental Limits Operating Temperature Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) • Power Requirements Input Voltage 12 to 48 VDC Power Consumption NPort 5210: 325 mA @ 12 V, 190 mA @ 24 V NPort 5230: 325 mA @ 12 V, 190 mA @ 24 V NPort 5232: 280 mA @ 12 V, 150 mA @ 24 V NPort 5232I: 509.4 mA @ 12 V, 200 mA @ 24 V • Standards and Certifications Safety UL 60950-1, EN 60950-1 EMC CE, FCC EMI EN 55022 Class A, FCC Part 15 Subpart B Class A EMS EN 55024 Marine DNV Medical EN 60601-1-2 Class B, EN 55011 (NPort 5210/5210-T only) • Reliability Alert Tools Built-in buzzer and RTC (real-time clock) Automatic Reboot Trigger Built-in WDT (watchdog timer) MTBF (mean time between failures) NPort 5210: 134,850 hrs NPort 5230: 106,955 hrs NPort 5232: 102,344 hrs NPort 5232I: 87,083 hrs Overall Condition: Used Cosmetic Condition: Fair w/ Signs of Wear, Minor Scratches, Sticker Residue Functional Condition: Tested to power on only (See Notes), As-Is Notes: Tested to power on. Does not include power leads or AC adapter. Photos are of typical units in typical condition, not necessarily the exact units up for auction. Includes only what is shown in the images. Does not include any additional parts, cables, or documentation. PAYMENT & SHIPPING INFORMATION Liquis accepts Pursuant to eBay's payment policies, Liquis can only accept electronic forms of payment. Payments must be made via Paypal or credit card. W- 3 lbs. w - 3 All items must be picked up or shipped out within 15 days of purchase from Liquis Warehouse or it will revert to becoming the property of Liquis. Any items that are not picked up within 7 days will have warehouse storage fees added on to the handling fees. UPS Ground Shipping & Handling Charge in USA: $12.00 [[UPS Worldwide Expedited]] International Shipping to U.K. and Canada only. There will be a 25% restocking fee on all returned items that match the Item Description. COMBINED SHIPPING We do offer the option to combine ship multiple auctions for a lower shipping cost. Send an e-mail when you've completed your purchase. Please include all auction numbers for reference. The rate for combined shipping is FULL price on the heaviest item. All items after that are half shipping price as long as they fit into the same box. Note: We do NOT offer combine shipping on PC's or Desktop LCD Monitors. Our offices are open from 10:00AM-3:00PM Central Time Tuesday Through Thursday. We are closed on the weekends. Please allow 1-3 business days to reply to all e-mails. For any questions call 1-800-437-9703 EXT. 109. LOCAL PICKUP FEE HANDLING RATES Weight First Item Each Additional Item 0-5lbs $9 $5 5-40lbs $12 $6 41-75lbs $25 $12 All PCs And Servers $20 $20 All PC LCDs (15"-21") $12 $6 ITEMS OVER 75 LBS. Local Pickup Fee Rates only apply if the buyer is picking up the items in person at our Austin location. Liquis reserves the rights to charge additional handling fees per discretion when a 3rd party is involved. Please contact us for any additional handling fees if we're shipping out the item(s) on your own shipping account. If you use your own freight carrier for items weighing over 75lbs for one unit or combine shipping, you will be responsible for all arrangements. You must call ahead and schedule an appointment. This option will incur a handling/palletizing fee of $35-$75 per pallet + Pickup Fees rates based on the Weight, Dimensions and the amount of units placed on the pallet for Computer Equipment and $50-$125 per pallet for Industrial Equipment per Liquis's Discretion. NO ADDITIONAL ITEMS INCLUDED Unless stated otherwise in the Hardware Info or Overall System Summary above, none of the following items are included: Software, Documentation, Cables, Batteries, AC Power Adapters, Power Supplies, Desktop LCD Stands/VGA Cables/Accessories, Toner Cartridges, or Power Cords.Any device that requires a battery the length of the batteries runtime is not guaranteed in any way. No additional items are included unless stated specifically in the auction. Please do not inquire if we have any accessories for sale unless they're found in our eBay store. Please read below for terms, conditions and shipping costs before bidding. ADDITIONAL PAYMENT INFORMATION To Customers who intend to pay with Paypal: We will only ship to your Confirmed Address. We can not take requests to ship to an alternate address. Ensure you have the correct confirmed mailing address on file with Paypal before bidding or submitting payment. This is company policy. All Paypal payments that do not meet these conditions will be immediately refunded. To International Customers: We only accept Paypal Payments from a Confirmed Address . All International Shipments are sent through UPS/FEDEX Global. We do not ship by USPS International Airmail/EMS/Surface Mail. The buyer will be responsible for all taxes, duties or incurred fees upon bidding on this item. Any additional fees upon receipt of the item will be the responsibility of the buyer. LIQUIS LEGAL INFORMATION ***PLEASE READ BEFORE BIDDING*** Liquis sells a wide variety of used products that were previously in use in corporate environments. Liquis has skilled technicians on staff that handles the item(s) prior to being put up for bidding in this auction. Although we are able to test the vast majority of what we sell, we do not have the equipment or accessories necessary to adequately test some of our products. In these cases, we will auction these items and indicate that they have been marked Untested, “Parts/Fix”, or are not in good, used condition. Any product listed AS-IS, UNTESTED, PARTS/FIX does not qualify for the Liquis DOA Warranty. Functionality of the unit is not covered under our DOA Warranty for items tested "Power On Only". Liquis's DOA/Replacement Warranty will not cover/replace Laptop/Desktop LCDs with 10 dead pixels or less. This covers any New or Used LCDs. Please read the auction description carefully prior to bidding or submitting a question. FOR COMPUTER AND INDUSTRIAL ACCESSORIES Hard drives are checked in Fdisk and checked to see if recognized in BIOS and then erased/DoD wiped. No other implied condition is represented by the description above. Any preinstalled software on the hard drive(s) is removed. This includes any Operating System (Windows). Before inquiring if we have any items in stock, please check our eBay store. You may use the search function at the top of the auction to search our inventory. All active inventory can be found in our eBay store. Please visit our eBay store, Liquis High Tech Equipment for many more products! Copyright © 2015 Liquis, Inc. All Rights Reserved. auctionpartner316-0155499 christopher MC22B

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Moxa
Model	Nport 5210-P
