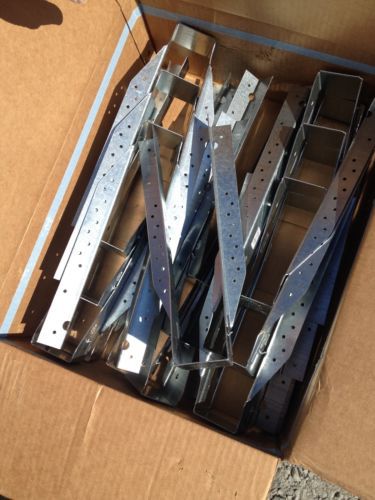

Lot of 48 Simpson MIU2.37/14 Face Mount I-Joist Hangers, US $460.00 – Picture 0

Lot of 48 Simpson MIU2.37/14 Face Mount I-Joist Hangers, US $460.00 – Picture 1

Lot Of 48 Simpson Miu2.37/14 Face Mount I-joist Hangers

US $460.00

Kinzers, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

IUS/MIU I-Joist Hangers Share on printShare on emailShare on facebookShare on twitterShare on linkedinMore Sharing Services Load Tables Gallery of images IUS Installation Sequence Wood I-Joists Code Reports Drawings Catalog Page Related Categories Technical Bulletins Fliers Engineering Letters Help for downloads INSTALLATION View step-by-step installation instructions The IUS is fully compatible with shallow flange I-joists. I-joists with flange thicknesses between 1 1/8" and 1 1/2" achieve the full allowable table loads including uplift values and joist nails are not required. The IUS is a hybrid hanger that incorporates the advantages of the face mount and top mount hanger. Installation is fast with the Strong-Grip™ seat, easy-to-reach face nail locations and self-jigging locator tabs. The MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. Refer to Joist Manufacturer's literature or appropriate Simpson Strong-Tie® Connector Selection Guide for actual joist sizes. Material: See Face Mount Hanger tables. Finish: Galvanized Uplift Loads: Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required. MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs. IUS—add web fillers and two 10dx1 1/2" joist nails in the triangle holes for a total uplift of 365 lbs. Installation: Use all specified fasteners. Verify that the header can take the required fasteners specified in the table. See more installation information. IUS—fasten hanger to header. Position I-joist into hanger and snap into place. No joist nailing required. Some IUS models have triangle and round header nail holes. To achieve Max. download, fill both round and triangle holes. IUS—Locator tabs are not structural. They may be bent back to adjust for hanger placement. IUS—for rimboard applications see T-RIMBDHGR. IUS—I-joists with web stiffeners or rectangular sections can be used with the installation of 2-10dx1 1/2" nails into the optional triangle joist nails. Web stiffeners are not required with I-joists when the joist top flange is laterally supported by the sides of the hanger. I-joist manufacturers may require web stiffeners. Options: These hangers cannot be modified. However, these models will normally accommodate a skew of up to 5°. For sloped joists up to 1/4:12 there is no reduction, between 1/4:12 and up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type. topGallery: roll over images below to see larger image IUS (some IUS models have triangle holes in header flanges for Min/Max nailing) U.S. Patent 6,523,321 The Strong-Grip™ seat secures I-joists in position without joist nails AVOID A MISINSTALLATION Do not make your own holes. Do not nail the bottom flange. IUS INSTALLATION SEQUENCE Step 1 Attach the IUS to the header Step 2 Slide the I-joist downward into the IUS until it rests above the large teardrop. Step 3 Firmly push or snap I-joist fully into the seat of the IUS. roll over images below to see larger image MIU MIU with correct PAN installation

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Type	I-Joist Hanger
Thickness	0
Size	#0
Quantity	48
Brand	Simpson Strong-Tie
