Lot Of 7 Assemblies & 1 Power Transformer For The Tektronix 7704 Oscilloscope.

US $85.00

  • United States
  • Jan 29th
Open on mobile:
QR code

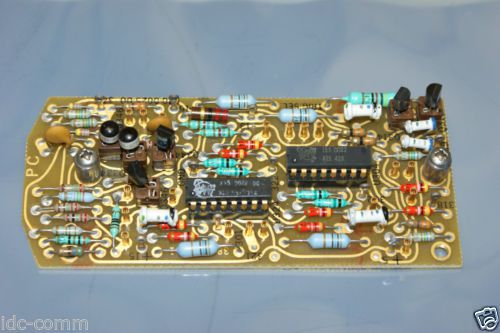

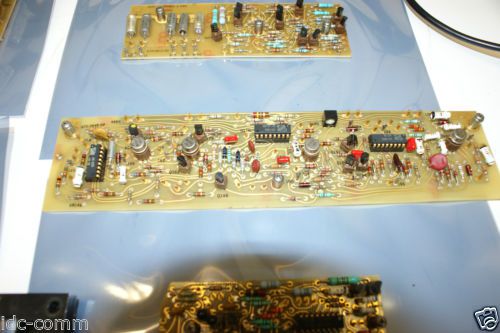

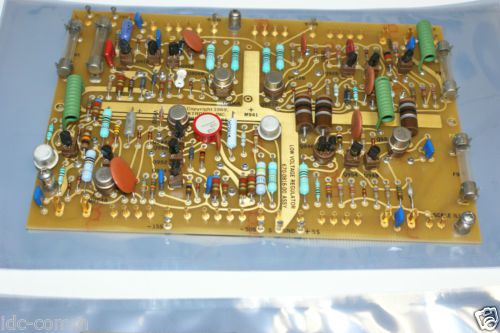

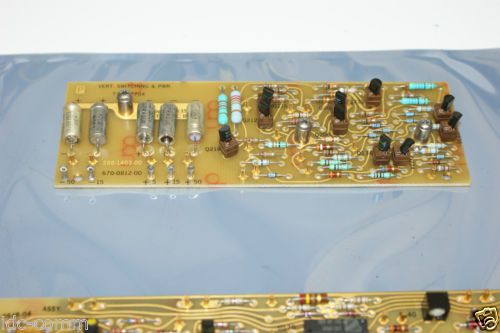

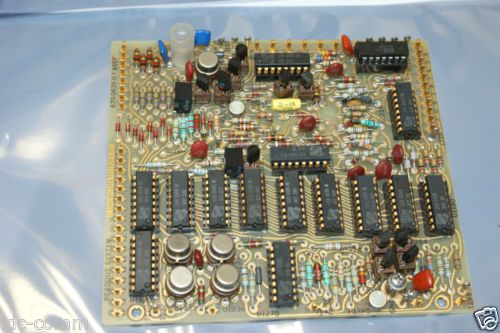

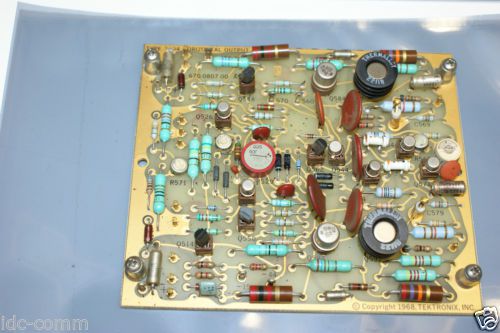

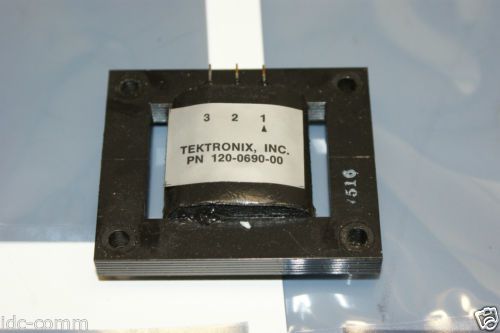

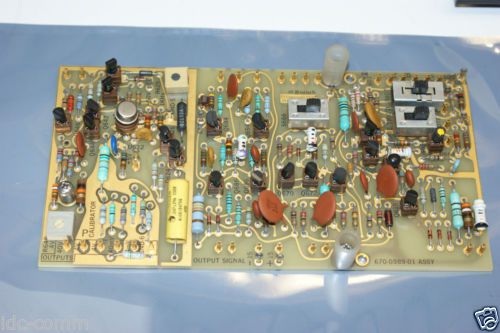

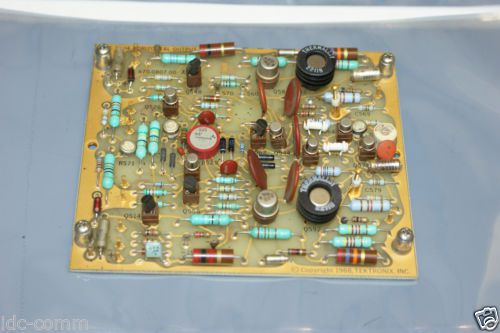

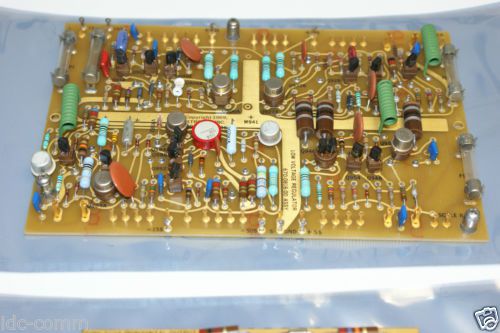

I have a Lot Of 8 Circuit Assembly Boards For The Tektronix 7704 150 MHz Oscilloscope Mainframe Up For bid. The Lot Of 7 Circuit Assembly Boards & 1 Power Transformer For The Tektronix 7704 150 MHz Oscilloscope Mainframe are in excellent condition, have been tested and are working. They consist of: Read Out System Circuit Assembly Board. Part Number: 388-1166-02 (Assembly Number: 670-0635-07) Low Voltage Regulator Circuit Assembly Board. Part Number: 388-1407-00 (Assembly Number: 670-0816-00) Output Signal Circuit Assembly Board. Part Number: 388-1819-00 (Assembly Number: 670-989-01) Horizontal Output Circuit Assembly Board. Part Number: 338-1398-00 (Assembly Number: 670-0807-00) Trigger Select Circuit Assembly Board. Assembly Number: 670-0625-00 Logic / PA Circuit Assembly Board. Part Number: 388-1157-00 (Assembly Number: 670-0848-00) Vertical Switching & Power Circuit Assembly Board. Part Number: 338-1403-00 (Assembly Number: 670-0812-00) Transformer. Part Number: 120-0690-00 Please view all pictures and ask questions you may have. Also, Please check your service manual to insure you are bidding on the correct parts. Thanks. I accept PayPal only.
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “The Lot Of 7 Circuit Assembly Boards and 1 Power Transformer For The Tektronix 7704 150 MHz Oscilloscope Mainframe are in excellent condition, have been tested and are working. Please view all pictures and ask questions you may have. Also, Please check your service manual to insure you are bidding on the correct parts. Thanks.”
