LR-500A Lab Stirrer set DGTAL 34-340rpm 100-125V, US $1,340.00 – Picture 0

LR-500A Lab Stirrer set DGTAL 34-340rpm 100-125V, US $1,340.00 – Picture 1

Lr-500a Lab Stirrer Set Dgtal 34-340rpm 100-125v

US $1,340.00

Santa Clara, California, United States
Jan 30th

Open on mobile:
QR code

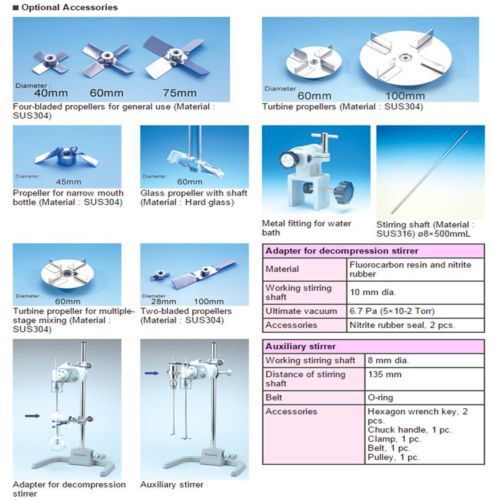

Yamato overhead stirrers are widely used in the food and cosmetics industries along with various R&D laboratories. With Yamato stirrers, there is no loss of rotation speed as viscosity builds. Unlike conventional stirrers, the powerful DC brushless motor and feedback control circuit of this laboratory stirrer maintains constant speed from no load up to a maximum torque. This unit includes a stirring shaft and 1 60mm 4 blade propeller. All other accessories are available at additional cost. FEATURES 6 models to meet your laboratory's specific needs Constant speed regardless of torque Rotation speed is easily adjusted LED indicator shows the accurate speed PID controlled mechanical stirrer with best safety and performance features Care-free and no spark motor (brushless) SAFETY DEVICES Automatic safety shut-down that prevents motor burn-out Current overload prevention mechanism Motor thermal-overload cut-off Protective cover on drill chuck Model 400A 400B 500A 500B 400C 400D Viscosity for Material High Medium High Medium Med-Low Low Speed Range (rpm) 10 to 300 15 to 600 15 to 600 25 to 1200 25 to 1200 60 to 3000 Max. Torque (N?m) 0.9 0.5 1.0 0.6 LT400A LT400B LT400C LT400D LT500A LT500B Performance Material High Medium Medium-Low Low High Medium Revolving speed range 10 to 300rpm 15 to 600rpm 25 to 1200rpm 60 to 3000rpm 15 to 600rpm 25 to 1200rpm Max. torque (N•m / kg-cm) 0.9/9.0 0.5/5.0 0.3/3.0 0.1/1.0 1.0/10.0 0.6/6.0 Components Motor (DC brushless motor) 30W 70W Chuck ?8 mm drill chuck Speed control Feedback control Display panel Digital speed display, Overload display, Torque indicator (20% gradation) Safe Device Safety mechanism Current-restraining circuitry, Thermal overload cut-off, Drill chuck protector Standard External dimensions(WxDxHmm) 146x154x165 Power source AC 100 to 125V 50/60Hz, single phase Weight Approx. 2.4kg Accessories Clamp 1 set Optional Accessories LT Auxiliary stirrer/LT Vacuum adapter/Extra long stirrer shaft/Four-blade propeller/Folding propeller/ Turbine propeller/Two-stage turbine propeller/Two-bladed propeller/Glass two-blade propeller

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Yamato Scientific
MPN	LR-500A
Model	LR-500A LAB STIRRER SET
Country/Region of Manufacture	Japan
