@m 1x Dc6v 2v-12v Motor Alternative For Mabuchi Rf-500tb-12560 Dvd Cd Solar E1

US $9.88

  • Our Inventory, Hong Kong
  • Jan 29th
Open on mobile:
QR code

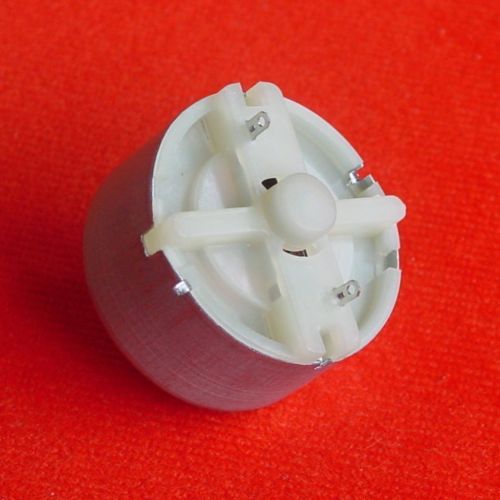

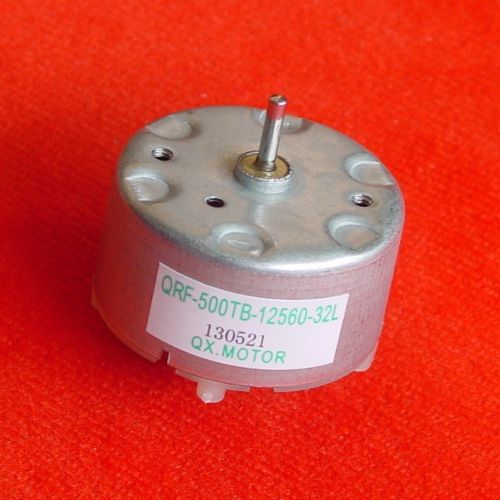

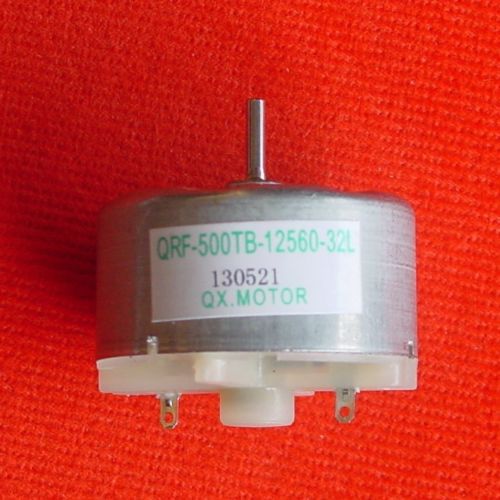

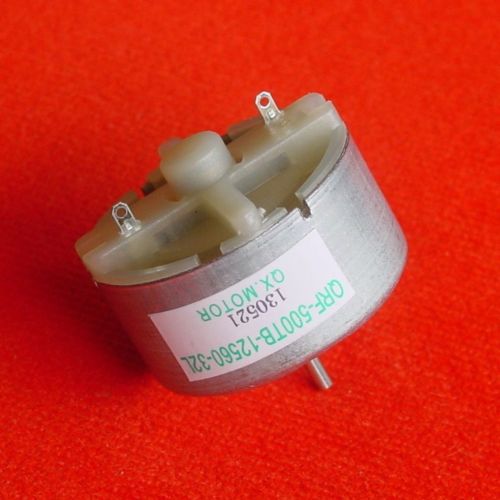

1pc DC6V 2-12V Mini Motor QRF-500TB-12560 (Brand New)    Feature / Specification and Product Description: Most Suitable for DVD/CD Player Disk Tray Loader driving. Fully Compatitable & Alternative for Mabuchi Motor RF-500TB-12560 ! 1. Operating Voltage - Norminal Rated Voltage DC 6.0V (Wide Voltage Range: DC2V - 12V). 2. Current - No load Current 28mA max at DC6V, Load Current 65mA max at DC6V. 3. No Load Speed - 2800rpm +/- 280rpm/Min. 4. Rated speed - Rated Load Speed 2500rpm +/- 250rpm at DC6V. 5. Rated Load - 0.392mN*m (8.0g*cm) by pulley load. 6. Start Torque - 0.981mN (10.0g. cm) Min Rated Voltage based on measurement at two different Load (0g-cm and 8gm-cm) 0.981mN (10.0g. cm)Min. 7. Starting Current - 390mA Max. 8. Motor Size: Thickness 24.6mm, Diameter 32mm (excluding the protruded shaft length). 9. Motor Shaft Diameter: 2.0mm, Protruded Shaft Length: 8.8mm. 10. 2 mounting tapped holes by JIS M2.6x 0.45 screw. 11. Weight: approx 45g. 12. DC Power Connection by soldering on the 2 terminal pins at the back side of the motor. 12. Direction of Rotation: can be either CW & CCW by reversing DC Power supply polarity.  13. Motor without pulley.   14. Brand new in Bulk Pack. 15. 1pc of Qi Xun, Model: QRF-500TB-12560 Mini DC Motor. 16. List photo is for reference only. Click to see the details of "QRF-500TB-12560 Specification"   Shipment  Instruction:  We ship out the goods from Hong Kong to Worldwide. All the goods will be shipped out by Airmail Post from Hong Kong. The shipment arrival to your country would be about 15-25 Business days after we ship out the goods in Hong Kong. We shall arrange the shipment within 3 days after payment is received. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand others
MPN nil
Model QRF-500TB-12560
Country of Manufacture China
