M4070 Autoranging Lcr Inductance Capacitor Capacitance Resistor Resistance Meter

US $72.99

default, default, Hong Kong
Jan 29th

Open on mobile:
QR code

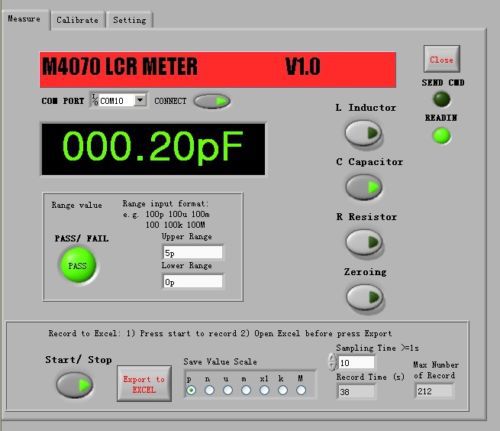

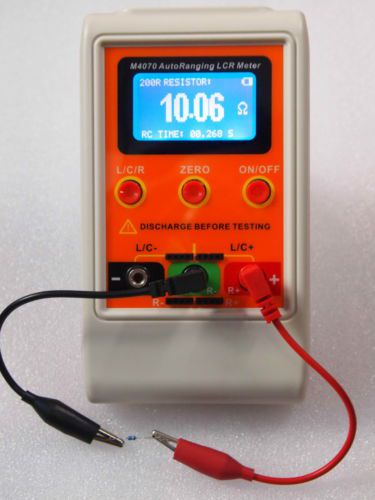

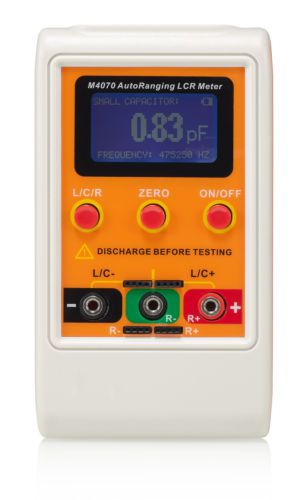

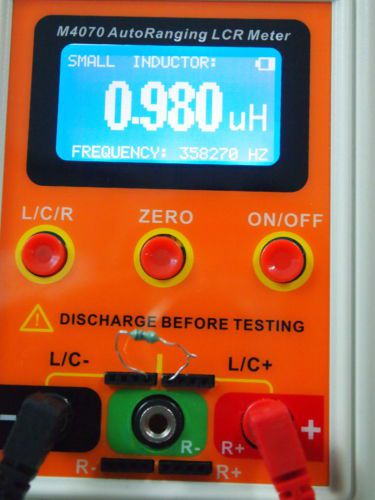

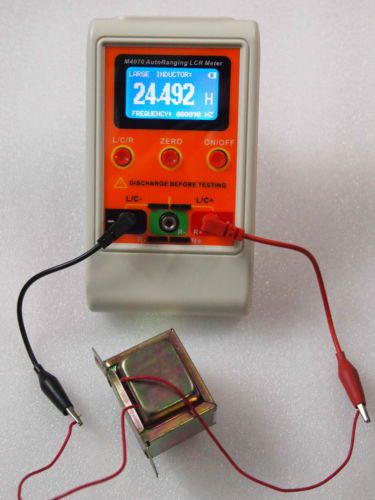

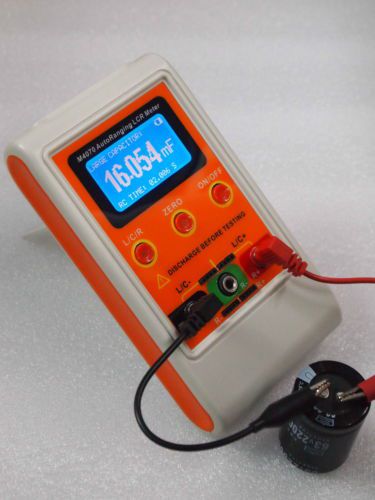

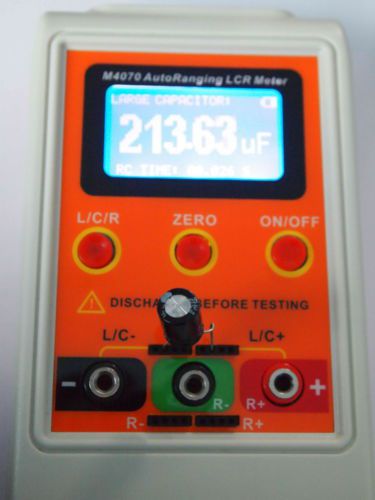

LCR M4070 AutoRanging LCR Meter Up to 100H 100mF 20MR NEW RELEASE! M4070 LCR METER Capacitor, Inductor and Resistor Download Manual: http://www.mib-tech.com/product_manual.html M4070 LCR METER Special Features: M4070 LCR meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. Meter can measure 0.00pF to 100.00mF capacitance, 0.000uH to 100.00H and 0.00? to 10.000M?This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance. *Discharge Capacitor before Testing!! Features: - Fully auto-ranging designed - High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH, 0.01R - High stability and measurement range for L/ C/ R - USB charging with rechargeable battery inside - Large LCD display with backlight - USB PC program, can take record and pass and fail component sorting function. Measurement Photo: Specification: Model: M4070 LCR Meter Series LCR Testing Parameter Main Parameter: L / C / R Testing frequency C: 10 to 500Khz L: 10 to 360Khz Testing Method Auto select LC and RC Oscillation Calibration Power on auto calibrate with internal reference capacitor Testing voltage ~1.5Vrms Best Tolerance L: 1% +1 Digit C: 1% +1 Digit R: 0.5% +1 Digit LCD update or Testing time (* vary on component value) <3/s, (e.g. 100mF Capacitor <30s) Range Selection Automatically Zeroing Open / short circuit Terminal Mini-USB(Virtual Com Port) Display Range C 0.00pF ~100.000mF (pF/nF/uF/mF) L 0.000uH ~ 100.000H (uH/mH/H) Hz (LC Oscillation Frequency) 0 to 900000Hz (s) (RC Constant Time) 0.000 to 99.999 R 0.00 ? ~ 20.000 M? (?/k?) LCD Display 128X64 Dot Matrix, with backlight Fuse Protection 200mA Charging terminal Mini-USB (500mA) Battery internal 3.7V Li-polymer Number of Testing Terminal Main 3, Secondary 4 Reading Display Max. 99999 COMPARSION WITH OTHER LCR METER: Measurement Comparasion Capacitor (Marked Value) TH2822A (10KHz) LC200A M4070 Reading Frequency Reading Frequency (Hz) % with TH2822A Absolute % Error Reading Frequency (Hz) % with TH2822A Absolute % Error 5pF 5.41 10Khz 5.06 654224 6.47 6.47 5.37 490920 0.74 0.74 33pF 31.54 10Khz 30.03 645310 4.79 4.79 31.29 485340 0.79 0.79 75pF 73.6 10Khz 71.42 634132 2.96 2.96 71.19 477160 3.27 3.27 330pF 341.33 10Khz 332.5 571000 2.59 2.59 333.25 431890 2.37 2.37 1000pF 949.7 10Khz 940.6 474000 0.96 0.96 946.37 361110 0.35 0.35 68nF 54.68 10Khz 54.7 107200 -0.04 0.04 56.614 61900 -3.54 3.54 10nF 11.473 10Khz 11.73 194900 -2.24 2.24 11.52 141520 -0.41 0.41 100nF 70.87 10Khz 68.38 102000 3.51 3.51 69.555 62700 1.86 1.86 1uF 1.0708 100Hz 1.05 1.94 1.94 1.0883 -1.63 1.63 33uF 33.286 100Hz 34.9 -4.85 4.85 34.735 -4.35 4.35 220uF 196.78 100Hz 205 -4.18 4.18 203.69 -3.51 3.51 470uF 448.7 100Hz 475 -5.86 5.86 468.04 -4.31 4.31 2.2mF 2.0203 100Hz 2.15 -6.42 6.42 2.1142 -4.65 4.65 22mF 19.408 Series 19.8 -2.02 2.02 20.04 -3.26 3.26 5pF to 100nF is small capacitor with ceramic . While 1uF to 22mF is Electrolytic Capacitor. Small Cap Standard Deviation % Compare with TH2822A 2.76 2.07 Large Cap Standard Deviation % Compare with TH2822A 3.10 1.11 Small Cap Average Abs Error % Compare with TH2822A 2.94 1.67 Large Cap Average Abs Error % Compare with TH2822A 4.21 3.62 Model of commom LCR meter DM4070 TH2822A LC200A M4070 Price (Loweset in Ebay @2012 Oct 16) 34.8USD 213USD 35.98USD 59USD Testing Frequency 1kHz 100Hz,120Hz,1kHz,10kHz 500khz 10 to 500khz Capacitor 0.1 pF ~ 2000 uF 0.00pF ~20.000mF 0.00pF to 100.000mF 0.00pF to 100.000mF Inductor 0.1uH ~ 20H 0.00uH ~ 1000.0H 0.000uH to 100.000H 0.000uH to 100.000H Resistor 0.01R ~ 20MR 0.0000 ? ~ 10.000 M? NA 0.00 to 10.000MR Minor measurement (Phase, %, D) No Yes No No Resolution 1999 40000 9999 99999 Capacitor Accuracy 2.50% 0.25% 1% 1% Inductor Accuracy 2.50% 0.25% 1% 1% Resistor Accuracy 0.50% 0.25% NA 0.50% Range Manual Select Fully Auto Semi Auto (need manual select large or small scale) Fully Auto Terminal & Socket 2X Test Lead, 2X Socket 2X Test Lead, 2X Socket 2X Test Lead 2X Test Lead, 2X Socket PC Program No Yes No Yes PC Terminal No USB No USB Zero Function No Yes Yes Yes Power 9V Battery 9V Battery /12V External Power 4XAA Battery /External 5V Power Li Polymer rechargeble / USB power Fuse Protection (Capacitor Measurement) Self Discharge No No Yes Low Battery Alarm Yes Yes Yes Yes Display Segment LCD Segment LCD Dual display reading 16X2 Character LCD 128X64 dot matrix LCD Backlight NO Yes Yes Yes INCLUDE: 1) 1 pcs M4070 2) USB Cable 3) Download labview software: http://www.mib-tech.com/product_manual.html Payment Shipping We accept Paypal, credit card through Paypal. Buyer may need to pay for import tax depend on your country's custom. You can ask us for more detail. We ship to most countries by general airmail Items are shipped within 5 business day after receive payment. or we will send email to confirm shipment arrangement. An additional USD2 for insurance Most item will arrive within 8-14 business days. It depend on your location. In some case, ship to some countries will take over 3 weeks, especially brazil, Italy and France . MIB-INSTRUMENTS On Aug-12-14 at 02:30:34 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	MiB Instruments
Country of Manufacture	China
Model	M4070
