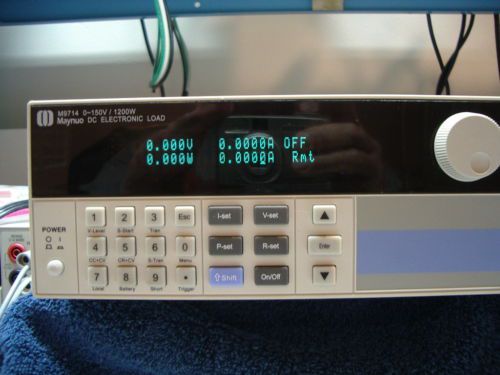

M9714 Usb Programmable Dc Electronic Load 1200w 0-240a 0-150v Cc Cr Cv Cw

US $1,270.00

Poway, California, United States
Jan 29th

Open on mobile:
QR code

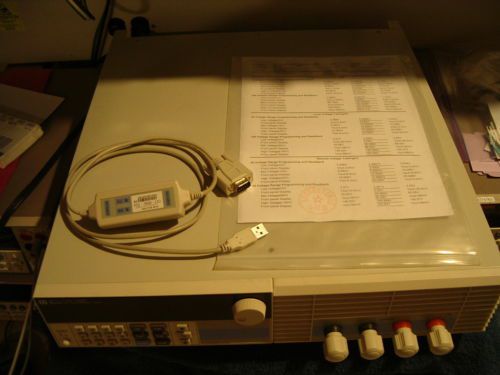

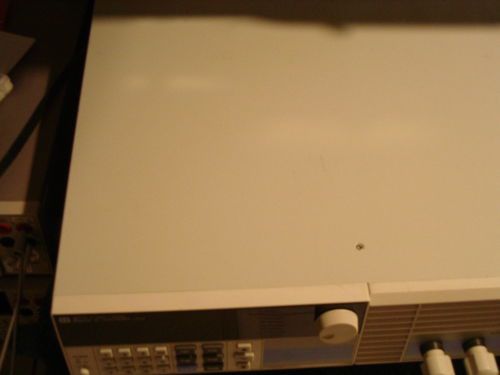

I am selling my lightly used electronic load. I purchased this load box in 2013 for a project I was schedules to work on. However, the project was canceled very early into the design process. Basically, I only used this load box to test 15A and 20A DCDC switching regulators. I need to clear up some space on my bench, so my loss is your gain. What included in this purchase in the M9714 itself, a power cord and a USB to RS232 PC connector. You can down load the user’s manual and software form Maynuo web page. Please Note that the condition of this M9714 is excellent. There are a few minor scuffs and scratches from being in working lab. However, the load box works as NEW. Below are the specification directly from Maynuos web page Feature: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over current, over voltage, over power, over heating and polarity reversal protection High-luminance vacuum fluorescent display (VFD) screen with two line, four channel display Intelligent fan system will automatically activate based on changing ambient temperatures Soft-start time setting, activating the power supply in accordance with the set voltage value Battery test and short-circuit test functions Capable of rising edge and falling edge dynamic testing Supporting external triggeron either input or output External current waveform monitor terminal output terminal Supports remote voltage compensation and multi-data storage Power-on-self-test, software calibration and standard rack mountable Edits arbitrary waveforms in list function Available with RS232/RS485/USB serial interfaces. Application: M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar celland fuel cell etc.test and measurement applications. Specification: Model M9714 Input Rating Power 1200W Current 0-240A Voltage 0-150V CC Mode Range 0-24A 0-240A Resolution 1mA 10mA Accuracy 0.05%+0.05%FS 0.1%+0.05%FS CV Mode Range 0.1-19.999V 0.1-150V Resolution 1mV 10mV Accuracy 0.03%+0.02%FS 0.03%+0.02%FS CR Mode (Voltage and current input value >=10% full measurement) Range 0.3-10K Oh 0.3-5K Oh Resolution 16 bit 16 bit Accuracy 0.1%+0.1%FS 0.1%+0.1%FS CW Mode (Voltage and current input value >=10% full measurement) Range 0-1200W 0-1200W Resolution 1mW 10mW Accuracy 0.1%+0.1%FS 0.1%+0.1%FS Voltage Measurement Voltage 0-19.999V 0-150V Resolution 1mV 10mV Accuracy 0.015%+0.03%FS 0.015%+0.03%FS Current Measurement Current 0-24A 0-240A Resolution 0.1mA 1mA Accuracy 0.05%+0.05%FS 0.1%+0.1%FS Power Measurement(Voltage and current input value >=10% full measurement) Power 100W 1200W Resolution 1mW 10mW Accuracy 0.1%+0.1%FS 0.1%+0.1%FS Battery Test Battery Input:0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H Dynamic Test Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS Current soft-startup Time 1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500mS;1000mS Accuracy:+15% offset+10%FS Short Circuit Current(CC) =26.4A =264A Voltage(CV) 0V Resistance(CR) =7mOh Temperature Operatign 0~40oC Nonoperating -10oC~70oC Dimension W*H*D(mm) 428*103.5*453.5 Weight Kg 17.6

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Maynuo
Model	M9714
