Magni Signal Creator-multi Format Test Signal Generator For Ntsc And Pal System.

US $200.00

Oakland, California, United States
Jan 29th

Open on mobile:
QR code

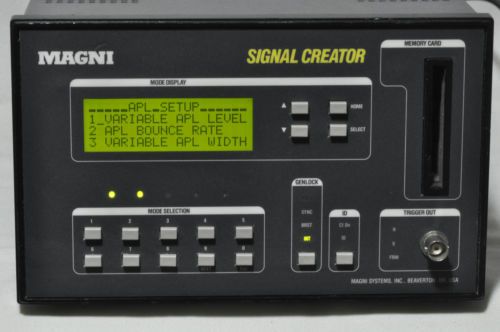

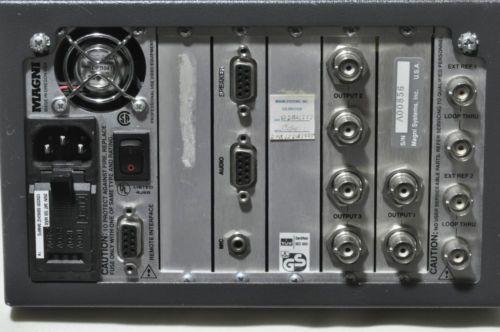

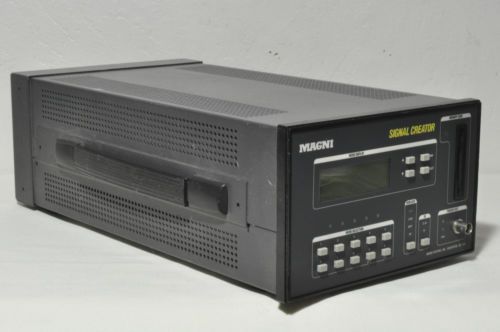

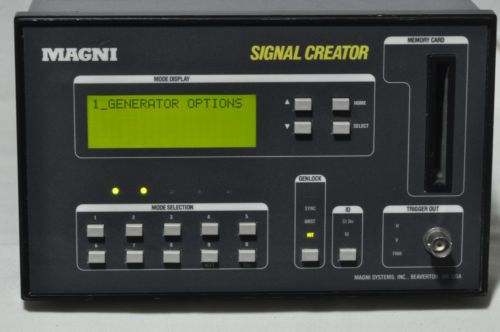

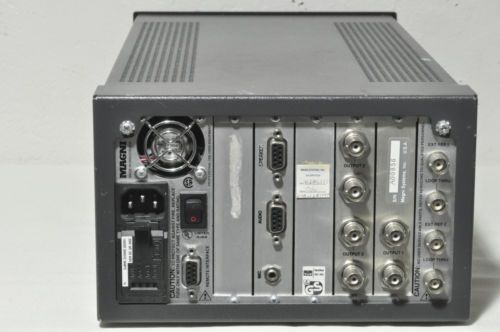

Magni Signal Creator-Multi Format Test Signal Generator for NTSC and PAL in a great working condition. It comes with the power cord only, no manual or memory card are included What you see in the pictures is what is being sold in this auction. What you see is what you will get. Free shipping to the continent of the USA. International buyers please contact me for shipping cost. Dealer's Highlights. Model Details Signal Creator-Multi Format Test Signal Generator for NTSC and PAL. The Generator has the ability to generate signals for virtually any television format from a half-rack instrument and to change from one signal to another instantaneously, can be yours with the Signal Creator. Specifications: SC-P Signal Creator (PAL, NTSC and 625/525 component) SC-STD SC-P plus BB and SD options SC-DLX configurable SC-P plus BB, SD and Z options 525 and 625-line Component Analog Video including GBR, Betacam, M-II, YPBPR (Y CBCR) and Y/C 525 and 625-line D1 (Digital 4:2:2) 525 and 625 line D2 (Composite Digital) Memory card storage of signals and setups User-friendly menu displays Options for Black Burst, including pulse outputs and separate SMPTE bars output Sweep/Zone Pattern generator Ten user-defined pre-sets available from front panel, including remote control of Magni's 700 series automated video signal monitors. Creator software for user development and memory card storage of signals Specifications Analog Outputs Main and Component Video Outputs: Sampling Rate 4 times subcarrier Accuracy 10 bits, +/- 0.5 bits Luminance Accuracy 1% Differential Phase 0.5o Differential Gain 0.5% 2T Response <1% overshoot SC/H Phase 0.0 +- 5o Bandwidth -0.1 dB at 5 MHz; -1.0 dB at 6 MHz Output Impedance/Return Loss 75 OHM / 40 dB to 5 MHz Delay Differential within 5 ns Black Burst Outputs: Timing adjustable Amplitude Resolution 8 bits Amplitude Accuracy 2% Separate SMPTE Bars Output (NTSC only): Timing follows black burst output Amplitude Resolution 8 bits Amplitude Accuracy 1% Digital Outputs (Serial and Parallel) D1 8 or 10 bits D2 NTSC 10 bits Reference Internal NTSC 3.579545 MHz +/- 10 Hz PAL 4.43361875 MHz +/- 5 Hz External (two provided) Front Panel Adjustment +/- 10 Hz Input Impedance 75 OHM loop-through Input Return Loss >40 dB to 4.0 MHz fsc Lock: Frequency 3.579545 MHz +/- 20 Hz; 4.43361875 MHz +/- 20 Hz Phase Shift +/- 1o (reference amplitude +/- 3 dB) Over-Temperature +/- 3o Synlock Jitter <10 ns Burst Lock Jitter <0.2o Pulse Outputs (Subcarrier, Composite Sync, Composite Blanking) Amplitude 2.0 V +/- 0.2 V Timing adjustable Audio Tone (optional) Frequencies (stereo) 400 Hz 1 kHz 10 kHz, or variable Frequency Tolerance +/- 1% Total Harmonic Distortion 0,+4,+8,+26 dBm, unbalanced, into 600 OHM Sweep 20 Hz - 20 kHz Digital Outputs Conform to AES bus specifications Environmental Line Voltage Range 115 Vac 90-132 Vac 230 Vac 180-250 Vac Line Frequency 47-63 Hz Power Consumption 75 W, typical configuration Operating Temperature 0o to 50oC Storage Temperature -55o to + 7o C Operating Altitude to 15,000 feet Storage Altitude to 50,000 feet Physical: Width 8.5 in. (216 mm) Height 5.25 in. (133 mm) Depth 16.4 in. (417 mm) Weight 10 lbs (4.5 kg) Circuit Board Capacity 5 Maximum
