Mallory Fixed Electrolytic Capacitor 3300 Mfd 50 Vdc G332u050v3c - F1015 R

US $24.99

Danville, Virginia, United States
Jun 9th

Open on mobile:
QR code

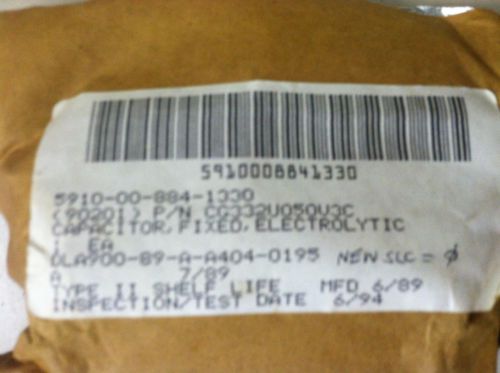

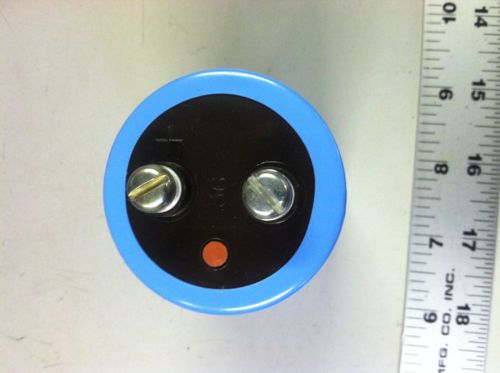

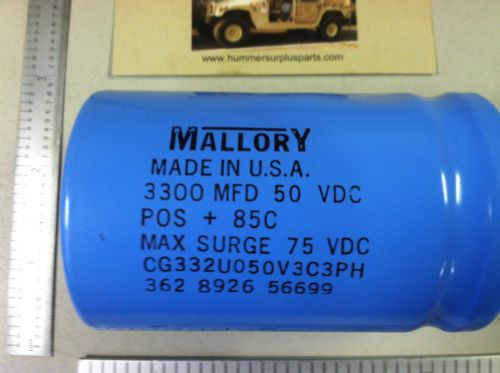

Mallory Fixed Electrolytic Capacitor 3300 MFD 50 VDC G332U050V3C New, old stock. Stored by US Military. Packaging/brand may vary, but will be mil-spec. Packaging has shelf wear, marks, labels, and/or tape from US Military storage. See photos for details. NSN Information: 5910-00-884-1330 (CE71C332G, 166007-0000, 420609-1) Data 5910-00-884-1330 (5910008841330) NSN Information NSN FSC NIIN Item Name INC 5910-00-884-1330 5910 008841330 Capacitor, Fixed, Electrolytic 00008 5910-00-884-1330 Features MRC Parameter Characteristics AAQL Body Style W/O mtg facilities, terminal(s) on one end AARG Reliability Indicator Not established ABJT Terminal Length 0.063 inches nominal ABPM Body Diameter 1.984 inches minimum and 2.016 inches maximum ADAQ Body Length 3.062 inches minimum and 3.188 inches maximum AEBP Center TO Center Distance Between Terminals Parallel TO Length 2.000 inches nominal AEBS Center TO Center Distance Between Terminals Parallel TO Diameter 0.875 inches nominal AEBT Terminal Diameter 0.190 inches nominal AEBZ Schematic Diagram Designator No common or grounded electrode(s) AECE Anode Type Etched foil AECQ Electrical Polarization Polarized CQBQ Capacitance Value PER Section 3300.000 microfarads single section CQJJ Nonderated Operating Temp -20.0 deg celsius minimum and 85.0 deg celsius maximum CQWM Nonderated Continuous Voltage Rating AND Type PER Section 50.0 dc single section CRTP Tolerance Range PER Section -10.00/+75.00 percent single section CWJK Case Material Metal CWNJ Capacitive Electrode Material Aluminum TTQY Terminal Type AND Quantity 2 threaded hole 5910-00-884-1330 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC 021335-0001 65597 A 2 2 5 5 48 139-0332 54817 A 2 2 5 5 9Z 139-332 54817 A 2 1 C AF 2 ZZ 166007-0000 30184 F 2 9 5 5 48 420609-1 80020 A 2 1 C AC 5 ZZ 500332U050BB2B 00853 A 2 2 5 5 48 B166007-0000 30184 F 2 9 5 5 48 CE71C332G 81349 M 2 1 C AC 6 ZZ CG332U050V3C 00853 A 2 2 3 E ZZ CG332U050V3C 90201 A 2 9 5 E TX CG332U50K1 90201 A 2 9 5 E TX 5910-00-884-1330 Replaces the Following Cancelled NSN Cancelled NSN Cancelled NIIN 5910-01-141-1678 011411678 5910-00-884-1330 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM 02 N Strategic Weapon Systems(poseidon and Trident) 23 N Ohio Class Ssbn (Trident) 82 F Support Equipment, F-15 Aircraft 82 N Catapult/Arresting Gear (Alre/Hls) 85 N AN/SPN-42T-3, 42T-4, and AN/SPN-46 (V) 1 95 N Gun Fire Control System, Mk 86 EX N Los Angeles Class Ssn (688) EZ N Ticonderoga Class Cg (47) FO N Mt Whitney LCC-20 Class HZ N Forrestal Class Cv JA N Nimitz Class Cvn JD N Arleigh Burke Class Ddg JG N Seawolf Class Ssn JK N Wasp Class Lhd JL N Tarawa Class Lha JM N Emory S. Land Class as JR N Fms - Knox Class Ff JV N Safeguard Class Ars JW N Fms - Newport Class Lst JX N Avenger Class Mcm KB N Usns Henry J. Kaiser Class Tao LB N Radiation Detection Indication and Computation (Radiac) Eqpt MN N Mercy and Comfort Hospital Ships Class Tah MT N Waters Class TAGS-45 NR N AN/SRN-25(V) Navigation Radio set RF N Iff Aims Mk Xii RK N Landing System Automatic Carrier, Dual Channel RT N Microwave Landing Systems SQ N Submarine Hull Structure SZ N 2M/ATE Microminiature Automatic Test Equipment TZ N Kilauea Class T-Ae 26 VG N Powhatan Class T-Atf 166 WF N Submarine Auxillary and Miscellaneous Systems YJ N Virginia Class Submarine, SSN-774 YR N Fms - Build Frigates Class Ships ZD N LPD-17 Class Amphibious Transport Dock

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Mallory / US Military Contract
NSN	5910-00-884-1330
Model	G332U050V3C
Alternate Part Numbers	CG332U50K1 CE71C332G 420609-1 021335-0001
MPN	G332U050V3C
More Alternate Part #'s	139-0332 139-332 166007-0000 B166007-0000
Country/Region of Manufacture	United States
Alternate Part Numbers:	500332U050BB2B
