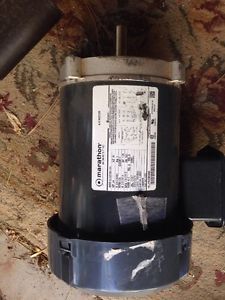

Marathon Electric 3/4 Hp Motor 208-230/460v 1725 Rpm 5k36pnb116a

US $150

  • Riverton, Utah, United States
  • Oct 22nd
 Keyed Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Phase: 3 No. of Speeds: 1 Max. Ambient Temp.: 40 Degrees C Manufacturers Warranty Length: 1 yr. Motor Application: General Application Motor Enclosure Design: Totally Enclosed Fan-Cooled Item: General Purpose Motor HP: 3/4 Motor Design: 3-Phase Duty: Continuous Voltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 Motor Mounting Type: Face Shaft Dia.: 5/8" Frame: 56C Frame Material: Steel Standards: UL (E46035), CSA (MC236833) Voltage: 208-230/460 Shaft Length: 1-7/8" Ins. Class: B Overall Length: 11-3/8" Motor Service Factor: 1.25 Nominal Efficiency: 78.5% RPM Group: 1701-1800 Hz: 60 Motor Thermal Protection: None Nameplate RPM: 1725 Motor Mounting Position: All Angle Full Load Amps: 2.8-2.8/1.4 Country of Origin (subject to change): Multiple
