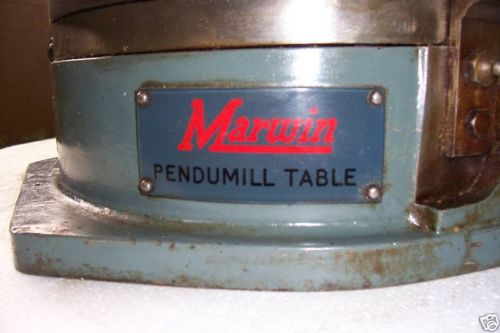

Marwin 14” X 14” Pendumill Semi-auto Indexing Table

US $800.00

Berlin, Connecticut, United States
Jan 30th

Open on mobile:
QR code

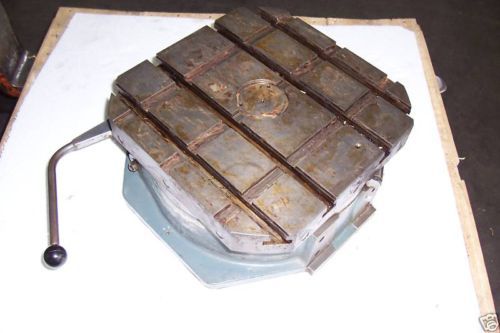

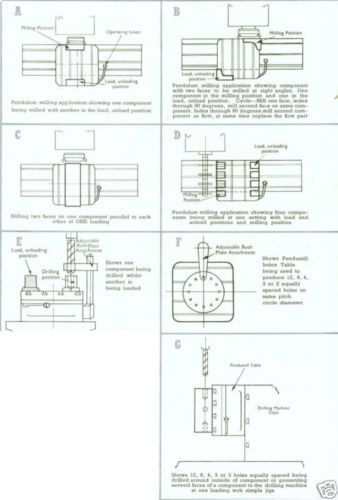

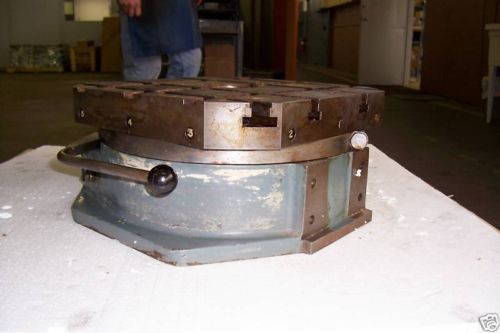

MARWIN 14” x 14” PENDUMILL SEMI-AUTO INDEX TABLE Gain an increase of up to 50% in output by pendulum milling and drilling using existing machines with this specially designed attachment. Easily fitted, simple to service and extremely efficient in use, this precision tool will help you make the fullest possible use of your available man-hours. FEATURES: · LOADING AND UNLOADING IS CARRIED OUT WHILE THE MACHINE IS CUTTING THE PREVIOUSLY LOADED PART. · RADIAL LOCATION IS ACCURATELY CONTROLLED BY A HARDENED AND GROUND TAPERED STEEL PLUNGER WORKING IN HARDENED AND GROUND BUSHINGS. · DOUBLE ACTING LOCKING IS CONTROLLED BY EXTERNAL CONTRACTING RING, WHICH LOCKS THE MOVEABLE TABLE RIGIDLY DOWN ONTO THE BODY. · A SINGLE LEVER CLAMPS AND UNCLAMPS, LOCATES AND INDEXES AUTOMATICALLY FOR 0?, 90?, 180?, AND 270? POSITIONS. 30?, 60?, 120?, 150?, 210?, 240?, 300? AND 330? POSITIONS ARE OBTAINED BY MOVING THE LEVER TO THE NEUTRAL POSITION, INDEXING THE TABLE BY HAND TO THE DESIRED STATION AND RETURNING THE LEVER TO THE LOCKED POSITION. SPECIFICATIONS: Table Length: 14” Table Width: 14” Table Thickness: 2” Overall Height: 7” Net Weight: 175 lbs. Shipping Weight: 200 lbs. Brand: Marwin Origin: England Condition: Used Pendulum milling can be performed effectively on milling machines without backlash eliminators. The loading and unloading station is an ideal position away from the rotating cutter. Substantial reductions in “floor to floor” times are readily achieved. The table measures 14”x14” and components as long as this may be worked on. Unlike normal pendulum milling, no double allowance for cutter run out is required. In applications A, B, D & E (see pictures) the loading and unloading is carried out during the milling or drilling cutting time. As a result, almost the entire loading time or cutting time is being saved depending upon the application, less the indexing time, which is under 2 seconds for 90? and under 3 seconds for 180?. THANKS FOR LOOKING!!!! er

Manufacturer

Marwin
