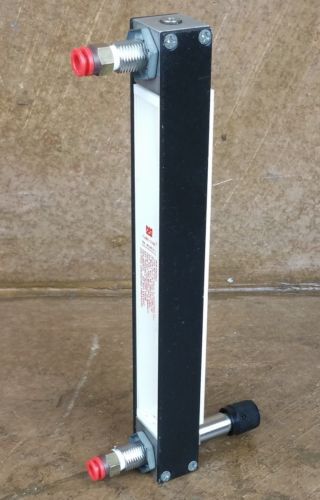

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 0

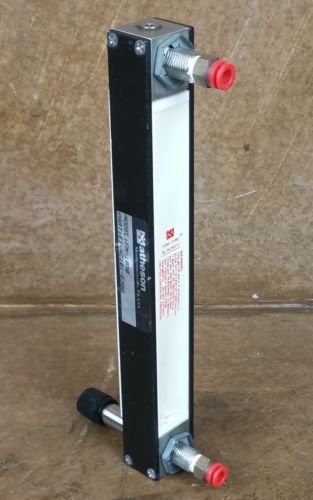

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 1

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 2

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 3

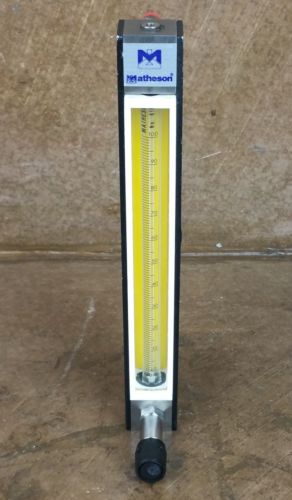

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 4

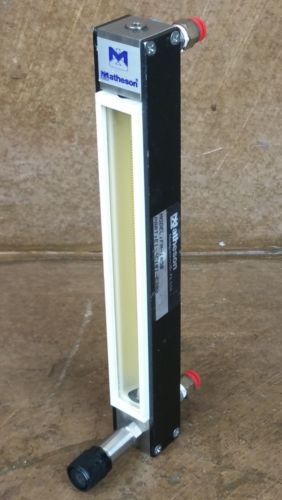

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 5

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested, US $35.00 – Picture 6

Matheson Gas Products High Accuracy Flowmeter * Fm-1050 * 610a Tube * Tested

US $35.00

Albuquerque, New Mexico, United States
Jun 9th

Open on mobile:
QR code

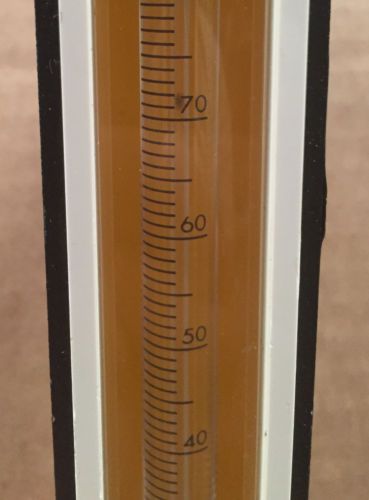

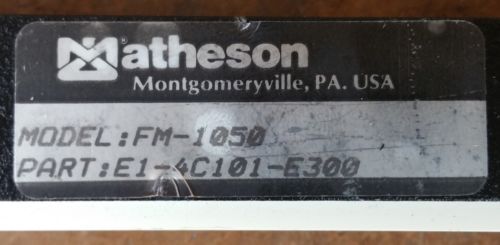

Matheson Gas Products High Accuracy Flowmeter * FM-1050 * 610A Tube * Tested Matheson Gas Products High Accuracy Flow Meter Model: FM-1050 Part #E1-4C101-E300 Tube Cube Tube: 610A Tube Length: 150 mm Maximum Pressure: 150 psig (17 Bars) Scale: 0 - 100 (increments of 1) Overall Dimensions: 7.5" W x 6.25" L x 11.25" H 2 lbs From the Manufacturer: Description Matheson’s FM-1050 Series Flowmeters provide the most accurate indication and precise control of fluids available for a wide range of applications. This versatile meter is functionally and dimensionally interchangeable with other current designs while incorporating many innovative features. All FM-1050 Series glass metering tubes have integral float guides to ensure a guaranteed ±5% (±1% with optional calibration) of full scale accuracy. Both glass and stainless steel floats are included. The meters are available in a range of 150mm reference indicating scales. Be sure to request calibration data for the gas(es) you will be measuring. Standard with this series is the uniquely designed Tube-Cube®. The “cube,” a unitized tube holder, aligns the tube quickly and easily for simple tube installation or replacement. The Tube-Cube® provides protection during handling, reducing chipped tube ends, broken tubes and misalignment. The 1.5 X scale magnification lens allows for a more accurate reading. End seals in the FM-1050 are direct acting and nonrotating for fast alignment and convenient service accesss. High accuracy (fifteen-turn) valve, for very precise control and repeatability. Design Features High resolution 150mm scale length Precision tapered, fluted metering tube Low pressure drop for increased available flow rates at low feed pressures Standard front panel mounting requires minimum hardware —- easy installation, quick access Available utility and high precision metering valves do not require special fittings Simplified, direct acting, nonrotating compression plug for quick and easy tube sealing Specifications Pressure Rating: 250 psig maximum Temperature Rating: 250°F maximum Accuracy: ±5% of full scale flow rate Repeatability: 0.25% of scale reading Range: 10 to 1, i.e., 100% to 10% of full scale mm or linear flow with conversion curves and/or factors Materials of Construction Wetted End Blocks, Fittings and Internal Parts: Brass, 316 stainless steel – standard; Anodized aluminum, Kynar, Monel – optional Seal Materials: Buna-N or Viton – standard; EPR, Kalrez or Teflon – optional Side Plates: Painted or anodized aluminum Metering Tube: Borosilicate glass enclosed in Tube-Cube® holder Piping Connections: Brass, 316 stainless steel – standard; Aluminum, Monel – optional Float Materials: Black glass and 316 stainless steel – standard; sapphire, Carboloy or Tantalum – optional Scale: Ceramic ink on glass tube, length 150mm *This flowmeter has been tested and works as designed (see photograph).* inkFrog Analytics

“Very Good Condition. Tested. Please see description.”

Brand	Matheson
MPN	Does Not Apply
Model	FM-1050
Country/Region of Manufacture	United States
