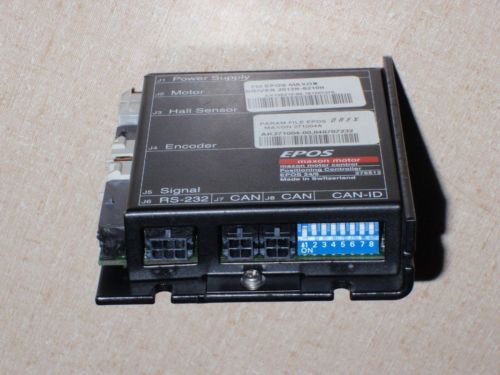

Maxon Motor Controller -- EPOS 24/5, US $290.00 – Picture 1

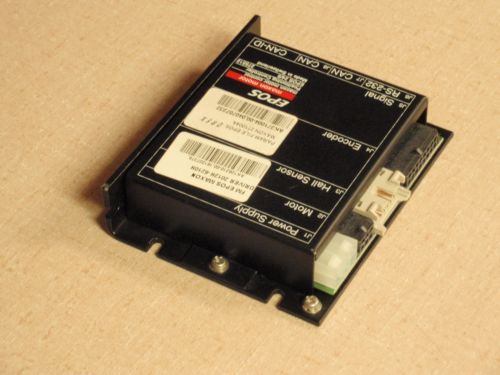

Maxon Motor Controller -- EPOS 24/5, US $290.00 – Picture 2

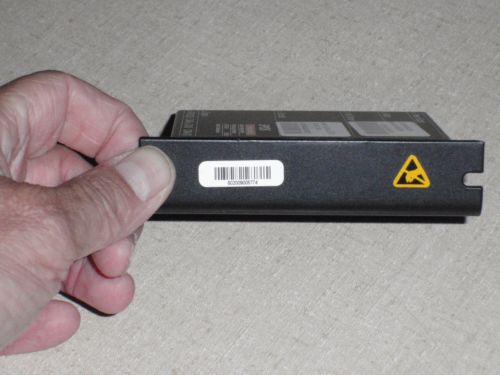

Maxon Motor Controller -- EPOS 24/5, US $290.00 – Picture 3

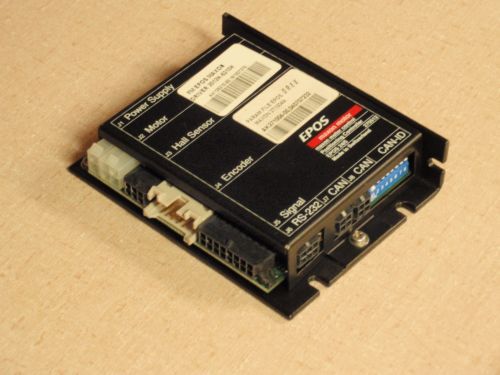

Maxon Motor Controller -- EPOS 24/5, US $290.00 – Picture 4

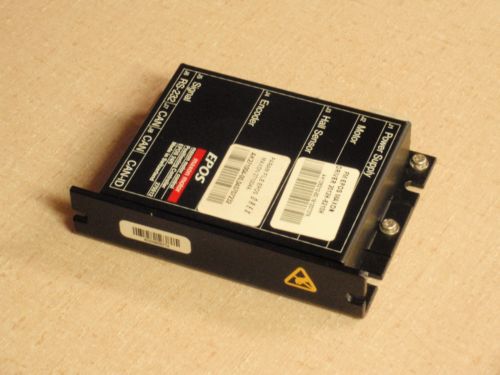

Maxon Motor Controller -- EPOS 24/5, US $290.00 – Picture 5

Maxon Motor Controller -- Epos 24/5

US $290.00

Chittenango, New York, United States
Jan 29th

Open on mobile:
QR code

Used Maxon EPOS 24/5 You are purchasing one used EPOS 24/5, in good working condition. Product specifications are as follows -- Product Weight 170 g Motors DC motors up to 120 W EC motors up to 120 W Sensors Without sensor (DC motors) Yes Digital incremental encoder (2-channel, differential) Yes Digital incremental encoder (3-channel, differential) Yes Digital Hall sensors (EC Motors) Yes Operating Mode Current controller Yes Speed controller (closed loop) Yes Position controller Yes Electrical Data Operating voltage Vcc (min.) 11 V Operating voltage Vcc (max.) 24 V Logic supply voltage Vc (min.) optional 11 V Logic supply voltage Vc (max.) optional 24 V Max. output voltage (factor * Vcc) 0.9 Max. output current Imax 10 A Max. time of peak output current Imax 1 s Continuous output current Icont 5 A PWM clock frequency of power stage 50 kHz Sampling rate PI current controller 10 kHz Sampling rate PI speed controller 1 kHz Sampling rate PID positioning controller 1 kHz Max. efficiency 92 % Max. speed (DC) 100000 rpm Max. speed (EC; 1 pole pair) block commutation 100000 rpm Max. speed (EC; 1 pole pair) sinusoidal commutation 25000 rpm Built-in motor choke per phase 15 µH Inputs Hall sensor signals H1, H2, H2 Encoder signals A, A, B, B, I, I\ Max. encoder input frequency 5 MHz Digital inputs 6 Functionality of digital inputs limit switch, reference switch, general purpose, enable, quickstop, step/direction set value, master encoder, position marker Analog inputs 2 Resolution, range, circuit 12-bit, 0…+5V Functionality of analog inputs set value, general purpose DIP switch 8 Functionality of the DIP switch CAN Node-ID, CAN-Bus Termination Voltage outputs Hall sensor supply voltage +5 VDC, max. 30 mA Encoder supply voltage +5 VDC, max. 100 mA Auxiliary output voltage +VCC , max. 1300 mA Interface RS232 Yes USB No CAN Yes CANopen Slave CANopen application layer DS-301 CANopen frameworks DSP-305 Gateway function RS232-to-CAN Yes Gateway function USB-to-CAN No Indicator Status indicator "Ready" green LED Status indicator "Error" red LED Protective functions Protective functions current limit, overcurrent, excess temperature, undervoltage, overvoltage, voltage transients, short-circuits in the motor cable Environmental Conditions Temperature – Operation (min.) -10 °C Temperature – Operation (max.) 45 °C Temperature – Storage (min.) -40 °C Temperature – Storage (max.) 85 °C Humidity (non-condensing) (min.) 20 % Humidity (non-condensing) (max.) 80 % Mechanical Data Weight 170 g Dimension (length) 105 mm Dimension (width) 83 mm Dimension (height) 24 mm Mounting Flange for M3 screws Maxon EPOS catalog page

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used. In good cosmetic and working condition.”
