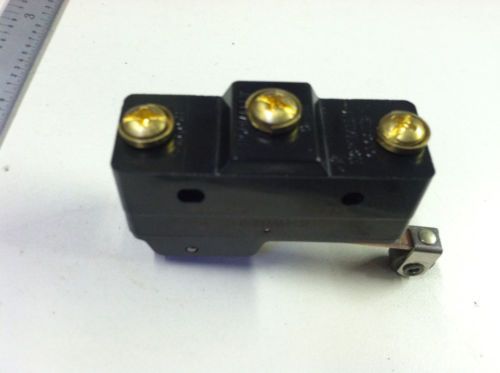

Micro Switch, Sensitive BZ2RW8299A2 NSN 5930-00-926-7544 NEW - K1214, US $140 – Picture 0

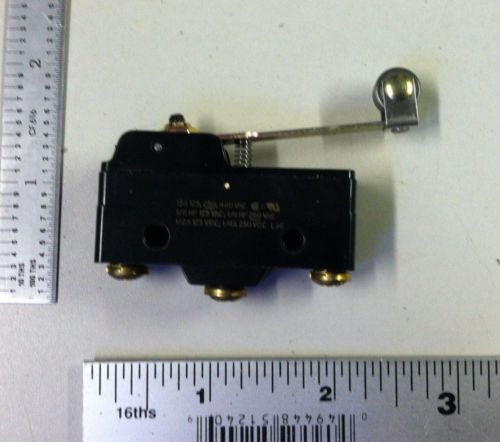

Micro Switch, Sensitive BZ2RW8299A2 NSN 5930-00-926-7544 NEW - K1214, US $140 – Picture 1

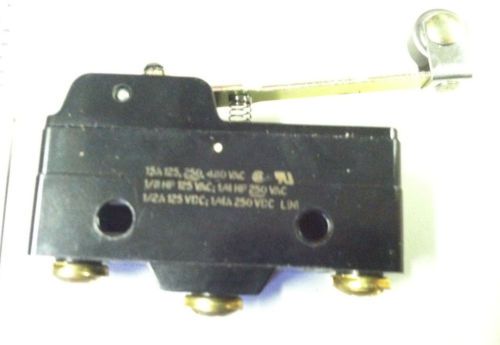

Micro Switch, Sensitive BZ2RW8299A2 NSN 5930-00-926-7544 NEW - K1214, US $140 – Picture 2

Micro Switch, Sensitive BZ2RW8299A2 NSN 5930-00-926-7544 NEW - K1214, US $140 – Picture 3

Micro Switch, Sensitive Bz2rw8299a2 Nsn 5930-00-926-7544 New - K1214

US $140

Danville, Virginia, United States
Jan 29th

Open on mobile:
QR code

Micro Switch, Sensitive BZ2RW8299A2 NSN 5930-00-926-7544 NEW New. Stored by US Military. Packaging has shelf wear, markings, and tape from US Military Storage. See photos for details. NSN Information: 5930-00-926-7544 (2663280, BZ2RW8299A2) Data 5930-00-926-7544 (5930009267544) NSN Information NSN FSC NIIN Item Name INC 5930-00-926-7544 5930 009267544 Switch, Sensitive 00399 5930-00-926-7544 Features MRC Parameter Characteristics AAQL Body Style Hole mounted ABKQ Center TO Center Distance Between Mounting Facilities Parallel TO Length 1.000 inches nominal ADAQ Body Length 1.938 inches nominal ADAT Body Width 0.688 inches nominal ADAU Body Height 1.169 inches nominal AEBV Unthreaded Mounting Hole Diameter 0.142 inches nominal AFCG Switch Actuator Quantity 1 AFGK Actuator Length 1.906 inches nominal AFUQ Actuator Style Roller arm AFUU Actuator Free Position Height 1.436 inches maximum AFUV Actuator Roller Diameter 0.375 inches nominal AFUW Actuator Roller Width 0.156 inches nominal AFXE Maximum Voltage Rating IN Volts 250.0 ac and 250.0 dc AKNA Inclosure Type Uninclosed CRLD Nonpile-UP Contact Arrangement 1 pole, double throw, both positions maintained single switch unit CRRM Switch Release Force 0.8 ounces minimum CSJN Switch Actuating Force 3.5 ounces maximum CXQQ Actuator Movement 0.136 pretravel inches maximum and 0.090 overtravel inches minimum and 0.196 differential inches nominal CXQR Contact Load Current Rating AT Maximum Rated Voltage 250.000 milliamperes resistive dc and 15.000 amperes resistive ac TTQY Terminal Type AND Quantity 3 screw 5930-00-926-7544 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC 2663280 30003 A 2 2 7 1 HD BZ2RW8299A2 91929 A 2 2 3 6 HD BZ2RW8299A2 R1120 A 2 2 5 6 ZG 5930-00-926-7544 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM FO N Mt Whitney LCC-20 Class HZ N Forrestal Class Cv JA N Nimitz Class Cvn JK N Wasp Class Lhd JL N Tarawa Class Lha MQ N Blue Ridge Class LCC-19 RS N Meterological Equipment

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Micro Switch
Country/Region of Manufacture	United States
Model	BZ2RW8299A2
NSN:	5930-00-926-7544
MPN	BZ2RW8299A2
Alternate Part Number:	2663280
