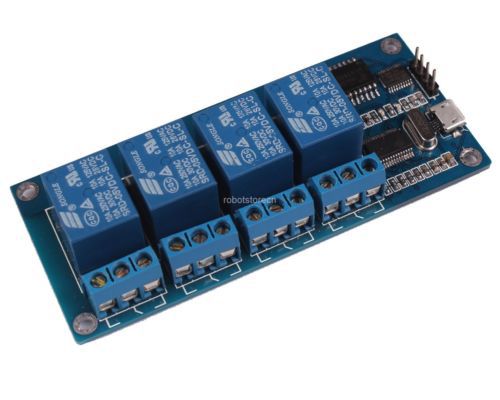

Micro Usb 5v 4-channel Relay Module Usb Control Relay Module Good Use

US $7.35

  • ???, ???, China
  • Jan 29th
Open on mobile:
QR code

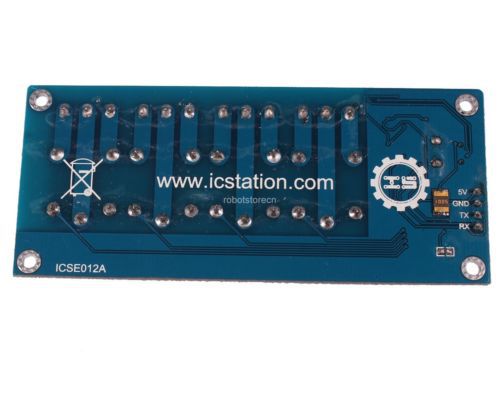

MICRO USB 5V 4-Channel Relay Module USB Control Relay Module Good Use               Welcome to use ”MICRO USB RELAY” module. The modular is produced by ICStation in 2014. The reference is sort for ICSE012A, ICSE013A, ICSE014A a total of three types of module. Features 1. The module have MICRO USB and serial port , so they can communicate with PC and other device conveniently. 2. The normal working voltage for modules is 5V.And module of ICSE014A have a power interface of 5V. Parameters are as follows:   ICSE012A ICSE013A ICSE014A Unit Remark CC 4 2 8   channel count of module I 400 250 700 mA working current U 5 5 5 V input voltage   ? ? ?   whether have serial port   9600 9600 9600 bit/s baud rate of serial port F 1000 1000 1000 Hz Module control frequency   x x ?   Whether have power interface Interface Modules all have Micro USB and serial port . Read following for details: 1. Micro USB: Standard micro USB mother mouth. 2. TX : Transmit 3. RX : Receive 4. 5V : Volt current condenser 5. GND : Ground 6. Power Interface : Only ICSE014A have . Interface is used when Micro USB cannot give enough power. Usage method 1. USB usage method Module connect with PC through USB . The connection method is as follows: Then open ”Relay Board Manager” to operate the module . Read ” RelayBoardManager_Reference” for details of the software. 2. Serial port usage method Module can communicate with other device directly through serial port . Module can receive single byte from upper monitor ( baud rate 9600): Upper Monitor 0x50 0x51 ICSE012A 0xAB ICSE013A 0xAD ICSE014A 0xAC Module will turn to normal work state after receive “0x51” . Then every data byte will control the relay directly . Each bit controls a realy ( ‘0’ mark start , ‘1’ mark stop ) . Read following for details: Bit ICSE012A ICSE013A ICSE014A Remark 0 ? ? ? Control the relay K1 1 ? ? ? Control the relay K2 2 ? x ? Control the relay K3 3 ? x ? Control the relay K4 4 x x ? Control the relay K5 5 x x ? Control the relay K6 6 x x ? Control the relay K7 7 x x ? Control the relay K8 Thanks Thank you for buying and have a nice time.                                                               For more quantity,please contact us.     1) We accept PayPal payment ONLY.
