Microwave Technology 500mhz-12ghz High Linearity Low Noise Gaas Fet Mwt-1783

US $4.99

  • Potomac, Maryland, United States
  • Mar 27th
Open on mobile:
QR code

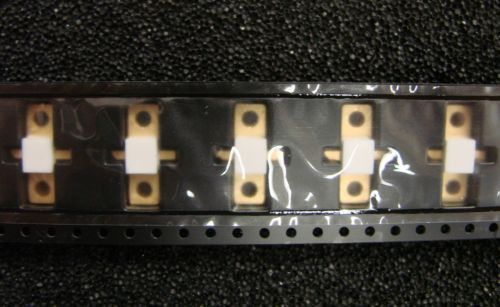

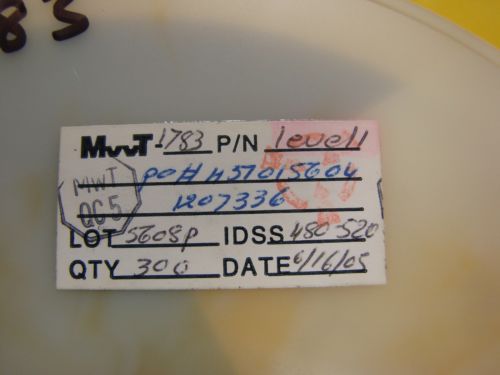

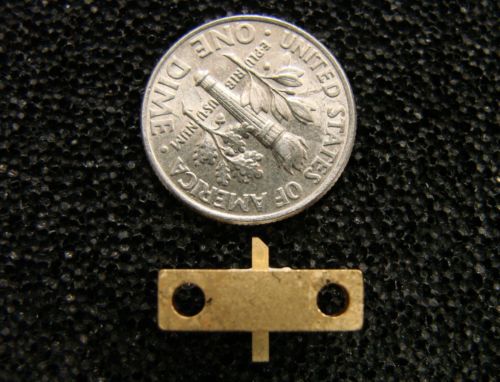

This is one piece of New Microwave technology, Inc.MwT-17 Series 500MHz - 12GHz High Linearity Low Noise GaAs MESFET, Part Number: MwT-1783. This FET starts with Die Chip Form MwT-17 and packaged in SOT-89 package MwT-1789, and packaged in Package 83, become MwT-1783 (which is this part we are selling). Since I have not find MwT-1783 in MwT Standard catalog, I believe this flange mount device is a custom part designed for higher P1 application. Use bottom 3 links to figure out how to use this FET if you are experienced RF engineer. Also, please note the frequency range is wide for this transistor unmatched, but the device is ideally suited for narrow band application.  General Specifications: Frequency Range: 500MHz to 12GHz Gain (typ): 7dB typ.at 12GHz Noise Figure (typ): 0.8dB at 900MHz Output Power P1dB (typ): +30dBm 1W Output IP3 (typ): +45dBm at 12GHz Package: package 83 Flange Mount. Data Sheet information on Web at: 1) Die Form: MwT-17   http://rfbayinc.com/upload/files/data_sheet/mwt-17.pdf 2) Information on Package 83  (Outline Section)    http://rfbayinc.com/upload/files/data_sheet/mwt_2008_2009_selection_guide.pdf 3) Information on SOT-89 Package    http://rfbayinc.com/upload/files/data_sheet/mwt_selection_guide_2013_2014.pdf
