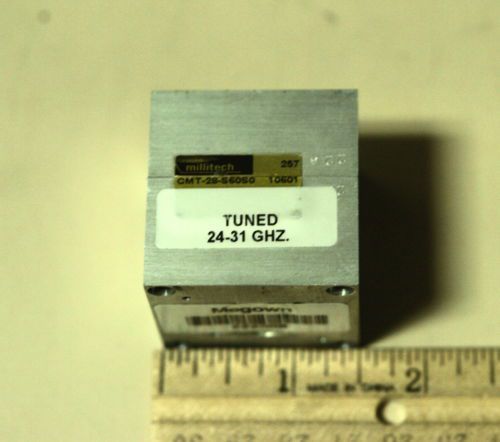

Millitech CMT-28-S60S0 WR28 Magic Tee Hybrid Coupler, Block Style, CF= 24-31 GHz, US $779 – Picture 0

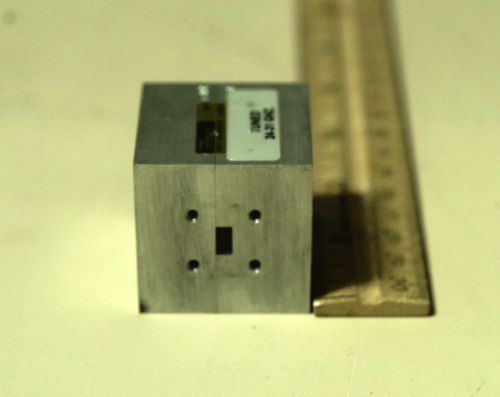

Millitech CMT-28-S60S0 WR28 Magic Tee Hybrid Coupler, Block Style, CF= 24-31 GHz, US $779 – Picture 1

Millitech CMT-28-S60S0 WR28 Magic Tee Hybrid Coupler, Block Style, CF= 24-31 GHz, US $779 – Picture 2

Millitech Cmt-28-s60s0 Wr28 Magic Tee Hybrid Coupler, Block Style, Cf= 24-31 Ghz

US $779

Rocklin, California, United States
Jan 29th

Open on mobile:
QR code

About Us How We Work Contact Us Megown Test & Measurement Inc. Megown Test & Measurement Inc. 4400 Yankee Hill Road Rocklin, CA. USA Tel: 1-916-773-5010 Tel: 1-800-442-5835 Fax: 1-916-773-4126 "For all Your Test and Measurement Needs!!" Item Description You are looking at a Millitech CMT-28-S60S0 WR28 Waveguide Block Style Magic Tee Hybrid Coupler. This unit has been tested and will come with a 30 day Warranty. No accessories are included. Cosmetics: Scratches here and there Very clean unit Specifications: Millitech / Hughes Model # CMT-28-S60S0 Serial # 0257 10601 / Asset # 222398 WR28 Waveguide Magic Tee Hybrid Coupler 30 day WARRANTY Frequency Range 26.5 to 40 GHz Center Frequency 24 to 31 GHz Excellent port-to-port balance Low insertion loss Compact port arrangement Excellent matching/high isolation Product Details: Millitech series CMT magic tee hybrid couplers are matched power dividers for a variety of applications ranging from power combining to general purpose power splitting. These couplers are four-port transmission line components with a port configuration as shown in Figure 1. A signal input to either the series arm (E-plane) or shunt arm (H-plane) will undergo equal power division into the two collinear ports. Power transmitted into the series arm (E-plane) will split so that the signals in each of the collinear transmission lines will be 180° out of phase. Power transmitted into the shunt arm (H-plane) will split so that the signals at each of the collinear transmission lines will be in-plane. The couplers are available in two types: (1) covering 60% bandwidth in the specified band, (2) covering 90% of the waveguide bandwidth. 60% bandwidth magic tee hybrid couplers are available between 18 and 170 GHz. 90% bandwidth magic tee hybrid couplers are available between 18 and 110 GHz. They are extremely useful in applications where balanced power division and high isolation are required over a broad bandwidth. Typically these would include millimeter-wave bridge circuits for impedance and phase measurement, power dividers/combiners for balanced mixers, and phase/frequency discriminators. Millitech also offers series CSS short slot hybrid couplers (90° phase difference between outputs) and a range of directional and crossguide couplers. Shipping Terms Shipping Charges: Buyers within the 48 contiguous STATES to pay shipping and handling charges as stated in auction / sale listing. Buyers outside the 48 contiguous states i.e. Alaska, Hawaii, District of Columbia, and Puerto Rico to pay an additional surcharge for Airmail. Carrier: We use UPS and FedEx to ship all of our items unless otherwise specified. Multiple Purchases: We will combine shipping charges for multiple items. Please wait for invoice before paying. Pick-Ups: Pick ups are welcome to save on shipping charges. Item must be picked up within 10 business days of auction closing. Business hours are: MON-FRI 9:00am to 4:00pm. Please call ahead to make arrangements. Freight: You may choose your own service for freight shipments or get a quote from us. All charges depend on location. Refunds: Original shipping charges cannot be refunded. If you receive an item that was not described accurately, we will assist you in getting a refund or finding a replacement. Please ask questions before bidding to determine whether or not this is the correct item you are looking for. International Shipping Shipping: We ship Internationally via FedEx, UPS, or DHL on your account. USPS will be used for certain items. Processing: We will box, pack, and fill out the necessary paper work to export the item to you. There will be a processing fee on all International shipments which is the price of the listed shipping cost per listing. "Letter of Assurance will be Required" Payments Payment: Payment must be received within 3 days of the auction ending unless prior arrangements have been made. If payment is not received within 3 days, necessary action will be taken. Payment Method: PAYPAL is the only payment method we will accept. Sales Tax: California residents to pay sales tax unless reseller certificate is verified. Refunds: We do not offer refunds unless specified. Please ask questions before bidding to determine whether or not this is the correct item you are looking for. Contact Information Megown Test & Measurement Inc. 4400 Yankee Hill Road Rocklin, CA 95677-1629 USA Tel: 1-916-773-5010 Tel: 1-800-442-5835 Fax: 1-916-773-4126 Ebay Sales: mmegown@megown.com Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Millitech / Hughes
MPN	CMT-28
Model	CMT-28-S60S0
Country/Region of Manufacture	United States
