Miteq U-9693 C-band Upconverter (5,485 - 6,425ghz)

US $1,999.99

Santa Fe, Texas, United States
Jan 29th

Open on mobile:
QR code

You are looking at a Miteq U-9693 C-Band UpConverter (5845 - 6425 GHz) This unit works and performs to factory specifications with no alarms or errors. Removed from a fully operational satellite uplink facility that the broadcast contract ended. Specifications: Dual conversion RF local oscillator only Frequency = 70 ±20 MHz Impedance = 75 ohms (50 ohms available as option) Signal monitor = -20 dBc nominal Frequency = 5,485 - 6,425GHz Impedance = 50 ohms Return Loss = 20 dB minimum Power output = (1 dB compression) +10 dBm minimumOownconverter LO leakage -80 dBm maximum at input port Transfer characteristics Gain = (minimum attenuation) 26 dB nominal (upconverters with RF output above 8.5 GHz), 30 dB nominal (upconverters with RF output below 8.5 GHz),45 dB nominal (downconverters) Image rejection = 80 dB minimum Level stability = ±0.25 dB/day maximum at constant temperature Noise figure = 20 dB typical, 25 dB maximum Amplitude response = ±0.25 dB, 20 MHz, 0.20 dB, 18 MHz Group delay = (18 MHz) 0.03 ns/MHz maximum linear, ±0.01 ns/MHz 2 maximum parabolic, 1 ns peak-to-peak maximum ripple Intermodulation distortion = At -10 dBm output, 60 dBc minimum AM/PM conversion = ±0.1°/dB maximum to +5 dBm output Gain slope = ±0.02 dB/MHz maximum Spurious outputs Signal related = 60 dBc minimum (for converters with RF frequency above 8.5 GHz), 65 dBc minimum (for converters with RF frequency below 8.5 GHz), Signal independent -75 dBm maximum, -70 dBm maximum (for upconverters with RF frequency below 8.5 GHz) Gain adjustment = 30 dB, local and remote control Gain adjustment step size = ±0.2 dB Frequency stability = ±2 x 1041,0 to 50°C (higher stability options available), 5 x 10.9/daytypical (fixed temperature after 24 hour on time) Upconverter mute = 60 dB Thanks 4 L00king!!!

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

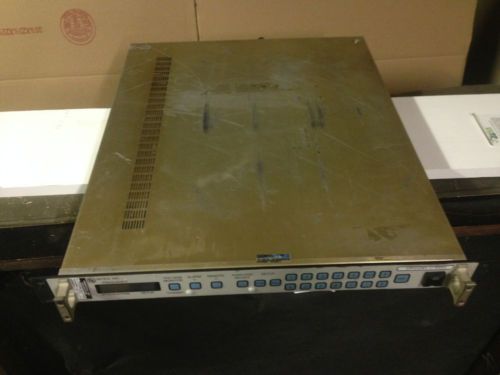

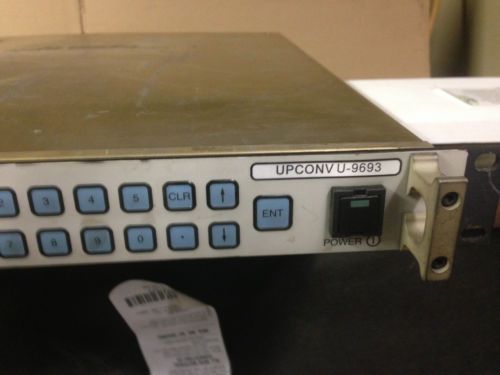

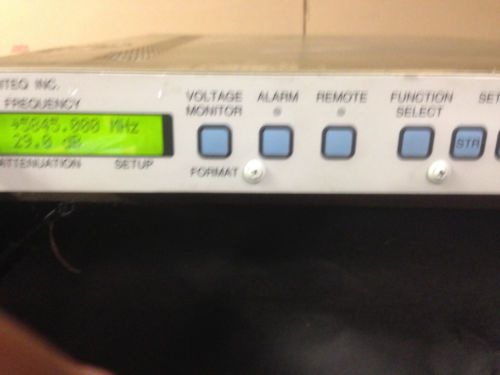

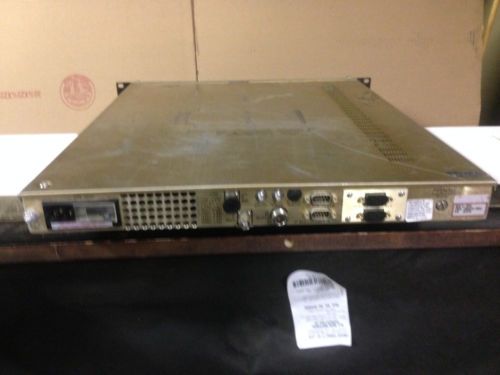

Seller Notes	“This unit is used, but all functionallity performs flawlessly. There are a few scratches from normal placement & removal from electronic racks. (See photos)”
