Mk-328 Tr Lcr Esr Tester Transistor Inductance Capacitance Resistance Esr Meter

US $1500

Hongkong, Hong Kong
Jun 9th

Open on mobile:
QR code

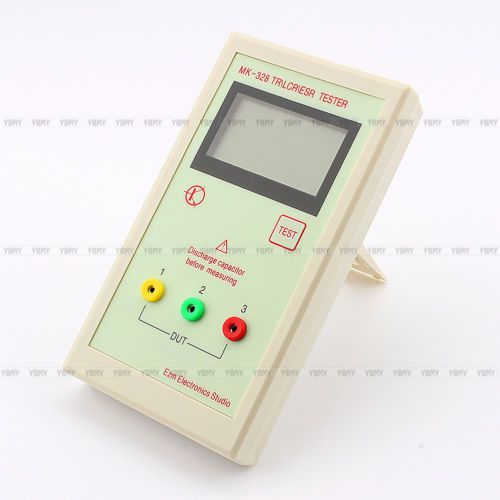

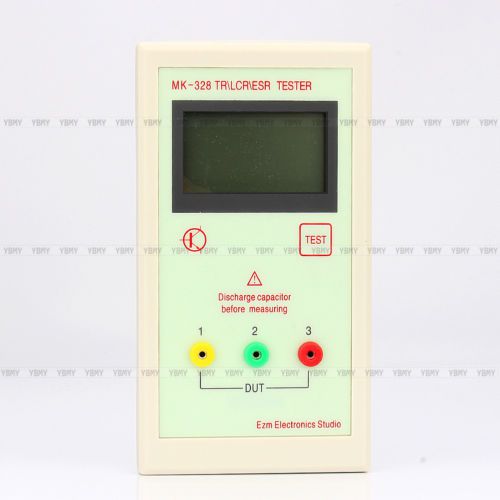

Home Payment Delivery details Terms of sales About us Contact us Store search Store category You may also like MK-328 TR LCR ESR Tester transistor inductance capacitance resistance ESR meter Product Description Features 1. Operates with ATmega328 microcontrollers. 2. Displaying the results to a 128x64 graphic LCD-Display. 3. One key operation with automatic power shutdown. 4. Shutdown current is only about 20nA. 5. Automatic detection of NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs. 6. Automatic detection of pin layout of the detected part. 7. Measuring of current amplification factor and Base-Emitter threshold voltage of bipolar transistors. 8. Darlington transistors can be identified by the threshold voltage and high current amplification factor. 9. Detection of the protection diode of bipolar transistors and MOSFETs. 10. Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs. 11. Up to two Resistors are measured and shown with symbols and values with up to four decimal digits in the right dimension. All symbols are surrounded by the probe numbers of the Tester (1-3). So Potentiometer can also be measured. If the Potentiometer is adjusted to one of its ends, the Tester cannot differ the middle pin and the end pin. 12. Resolution of resistor measurement is now up to 0.01?, values up to 50M? are detected. 13. One capacitor can be detected and measured. It is shown with symbol and value with up to four decimal digits in the right dimension. The value can be from 25pF to 100mF. The resolution can be up to 1pF . 14. For capacitors with a capacity value above 0.18μF the Equivalent Serial Resistance (ESR) is measured with a resolution of 0.01? and is shown with two significant decimal digits. 15. For capacitors with a capacity value above 5000pF the voltage loss after a load pulse can be determined. The voltage loss give a hint for the quality factor of the capacitor. 16. Up to two diodes are shown with symbol or symbol in correct order. Additionally the flux voltages are shown. 17. LED is detected as diode, the flux voltage is much higher than normal. Two-in-one LEDs are also detected as two diodes. 18. Zener-Diodes can be detected, if reverse break down Voltage is below 4.5V. These are shown as two diodes, you can identify this part only by the voltages. The outer probe numbers, which surround the diode symbols, are identical in this case. You can identify the real Anode of the diode only by the one with break down (threshold) Voltage nearby 700mV! 19. If more than 3 diode type parts are detected, the number of founded diodes is shown additionally to the fail message. This can only happen, if Diodes are attached to all three probes and at least one is a Z-Diode. In this case you should only connect two probes and start measurement again, one after the other. 20. Measurement of the capacity value of a single diode in reverse direction. Bipolar Transistors can also be analysed, if you connect the Base and only one of Collector or Emitter. 21. Only one measurement is needed to find out the connections of a bridge rectifier. 22. Capacitors with value below 25pF are usually not detectet, but can be measured together with a parallel diode or a parallel capacitor with at least 25pF. In this case you must subtract the capacity value of the parallel connected part. 23. For resistors below 2100? also the measurement of inductance will be done, if your ATmega has at least 16K flash memory. The range will be from about 0.01mH to more than 20H, but the accuracy is not good. The measurement result is only shown with a single component connected. 24. Testing time is about two seconds, only capacity or inductance measurement can cause longer period. 25. Software can be configured to enable series of measurements before power will be shut down. 26. Selectable facility to calibrate the internal port resistance of port output and the zero offset of capacity measurement with the selftest . A external capacitor with a value between 100nF and 20μF connected to pin 1 and pin 3 is necessary to compensate the offset voltage of the analog comparator. This can reduce measurement errors of capacitors of up to 40μF. With the same capacitor a correction voltage to the internal reference voltage is found to adjust the gain for ADC measuring with the internal reference. 10 27. Display the Collector cutoff current ICE0 with currentless base (10μA units) and Collector residual current ICES with base hold to emitter level . This values are only shown, if they are not zero (especially for Germanium transistors). 28. Thyristors and Triacs can only be detected, if the test current is above the holding current. Some Thyristors and Triacs need as higher gate trigger current, than this Tester can deliver. The available testing current is only about 6mA! Attention: Allways be shure to discharge capacitors before connecting them to the Tester! The Tester may be damaged before you have switched it on. There is only a little protection at the ATmega ports. Extra causion is required if you try to test components mounted in a circuit. In either case the equipment should be disconnected from power source and you should be shure, that no residual voltage remains in the equipment. note : the battery is not include package includes : 1pcs MK-328 TR ESR transistor 1pcs Test clips Payment Delivery details Terms of sales About us Contact us Payment We only accept payment through Paypal. Please pay for your item within 4 days of the auction end time. A non-payment dispute will be regrettably opened if full payment is not received. Delivery details We ship worldwide except Italy and Brazil due to their strict customs tariff policys. All items will be shipped to buyer's ebay address. Before you pay, please make sure your address in ebay matches the address you would like us to ship to. (If you want to change the address, pls. add a note when you make the payment) Any non-received items caused by invalid address registered on PayPal are not in our full refund or replacement policy. A notification email of dispatch will be sent to buyer after item is posted. Please email us if you don't receive our email after 5 days of full payment sent. All items will be shipped within 48 hours upon receipt of payment. You should be able to receive items within 3 weeks. Email us if not receive items after 30 working after full payment sent. Terms of sales 1. Our listing price includes the value of goods,packaging cost,and export taxes,not including international import duties. 2. Import duties,taxes,and charges are not included in the item price or shipping fee. 3. The import duties are buyers' responsibility.Please check with your country's customs office determine what these additional costs will be prior to your purchase. 4. All disputes arising from the import duties will be submitted to ebay for solution. About us Any questions, pls. contact us via ebay message or email us.We will reply your message within 48 hours. If you do not receive our reply within 48 hours, pls. post a message again because sometimes our message system may block some emails. Contact us If you are satisfied with our service, pls. kindly leave us a positive feedback and give us the Detailed Seller Rating with all "5 stars" in very area. Your recognition will encourage us greatly and serve you better. Should a problem arise with your order, please contact us before leaving feedback. We strive to keep all our customers satisfy. Thanks! Your feedback is critical to our success! On 02-Aug-15 at 23:29:56 EDT, seller added the following information:
