Mks 152h-po 152 H Automatic Pressure Controller, Asm Pn: 54-106931a29

US $1,249.99

Phoenix, Arizona, United States
Jan 30th

Open on mobile:
QR code

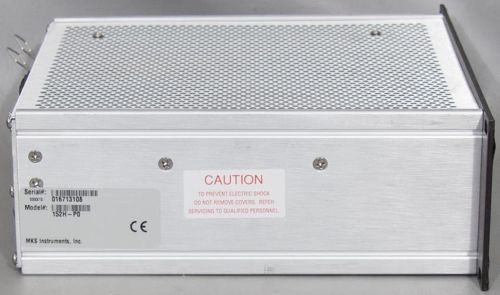

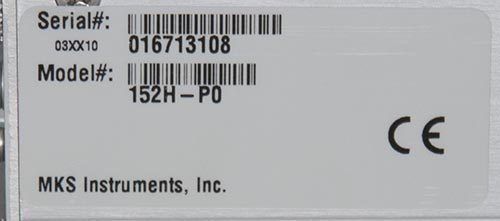

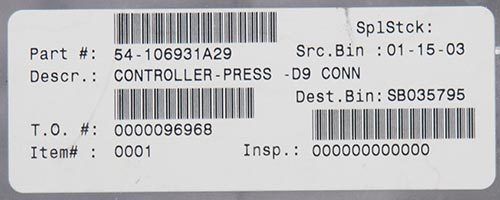

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! MKS 152H-PO Automatic Pressure Controller, ASM PN: 54-106931A29 Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from MKS and may vary slightly due to upgrades, options, or revisions this unit may or may not have. This unit is believed to be a spare unit from ASM inventory. It has markings on the screw holes so I am not sure if it is new or not. The Unit's Serial Number Tag Reads: Model Number: 152H-PO Serial Number: 016713108 CE Marked: Yes The ASM's Information Reads: Part Number: 54-106931A29 Description: CONTROLLER-PRESS -D9 CONN Link to the Manual: MKS 152H Series Valve Controller Manual Breakdown by Part Number: Type: 152H Valve Position: Standard - Position Control/VPO Interface: No Digital Interface Description: The Type 152H Exhaust Valve Controller works with the Type 253 Exhaust Valve to maintain a constant pressure in a process chamber by varying the pumping speed. The 152 controller provides ±15 VDC power output and accepts the pressure input from a variety of pressure transducers. The 152 controller determines the position of the 253 valve based on the actual pressure of the process chamber compared to the desired, or set point, temperature. The set point can be defined by an external analog signal, or, when the RS-232 Interface option is installed, a remote signal sent from an external computer. You can issue digital commands to control the valve action and force the valve to open, close, or stop, and to initiate the softstart mode. The standard 152 controller is configured for Position Control/Valve position Output (PC/VPO) control in addition to the normal pressure control. The Position Control mode controls the position of the valve relative to an external set point. The normal Pressure Control mode positions the valve based on the pressure of the system, relative to an external set point. The PC/VPO mode can be replaced with the optional Remote Zero/Valve Position Output (RZ/VPO) mode. THe RZ/VPO option allows you to remotely zero the 152 controller. The RS-232 Interface option adds RS-232 communication capabilities to the 152 controller. This option allows you to select the mode of operation, and to control the valve directly, using serial communications. Specifications: CE Mark Compliance: Yes Electromagnetic Compatibility1: EMC Directive 89/336/EEC Low-Voltage Requirements: Low-Voltage Directive 73/23/EEC Installation Category: II, according to EN 61010-1 Pollution Degree: 2, according to IEC 664 Product Safety and Liability: Product Safety Directive 92/59/EEC Dimensions: 3 1/2" H x 9 1/2" W x 9 1/2" L (8.9 cm x 24.1 cm x 24.1 cm) External Input Commands: TTL compatible (5 V, 4.7 K pull-up) Action: Input activated by a LO signal (< 1 Volt); Close, Open, Stop, Software, Position Control, 1 VDC Full Scale Input External Set Point Signal: 0 to 5 VDC analog (> 1 Meg ohm input impedance) Fuse Ratings: 115 VAC: 0.63 A (T) / 250 V / 5 x 20 mm 230 VAC: 0.315 A (T) / 250 V / 5 x 20 mm Input Signal: 0 to 10 VDC. 0 to 1 VDC, selectable on the rear panel and via an external command. Operating Temperature: 0° to 40°C (32° to 104°F) Output Power: ±15 ±0.2 VDC @ 250 mA maximum Output Signal: 0 to 10 VDC (10 K min. load) - Zero corrected Power Consumption: 60 VA maximum Power Requirement: 115 VAC Setting: 100 to 120 VAC nominal (100 V supported at 115 VAC setting) 230 VAC Setting: 200 to 240 VAC nominal VDE Approved Connectors: Power Switch, Voltage Selection Switch, Fuse Holder, and AC Input Connector Regulation: ±0.1% of full scale Valve Output: Built in driver to power the Type 253 exhaust valve (24 Volts @ 1 Amp maximum) Notes: 1: An overall metal braided shielded cable, properly grounded at both ends, is required during use. For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Back View Picture 4 - Side View Picture 5 - Keys for the Unit Picture 6 - MKS Serial Number Tag Picture 7 - ASM Part Number Tag For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $25.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 12/02/14 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“This unit is believed to be a spare unit from ASM inventory. It has markings on the screw holes so I am not sure if it is new or not.”
